4.4.1.6 Sensor State - Refresh
When this function is selected the current state of the ultrasonic sensors will be displayed (1 = responded;
0 = not responded). The input conveyor (input), center conveyor (center) and output conveyor (output) are
interrogated.
Within the Sensor state working area click on the Refresh button. The current state of the sensors at the
board conveyor will be displayed in the Sensor state working area.
4.4.1.7 Conveyor - High Speed
With this function the two different speeds of the conveyor belts can be checked and if necessary adjusted at
the half-bridge board in the servo unit. When this function is selected you can specify either a high or a low
speed for the conveyor speed.
NOTE
The belts must be empty.
The input conveyor only travels at high speed.
Click on the High speed check box.
Once the check box has been activated, click on the On button and the conveyor belts will be run at the
higher speed.
If the check box has been deactivated, click on the On button and the conveyor belts will be run at the
lower speed.
SIPLACE 80S-20/F4/F4-6 User’s Manual 4 Single Functions
Edition 07/97 from Software Version SR.403.xx 4.4 Single Functions: Transport 1
4 - 49
4.4.2 Conveyor Width
It will be necessary to alter the width of the conveyor when a different board size is introduced or during vari-
ous types of maintenance work.
In the PCB transport screen click on the Conveyor width button.

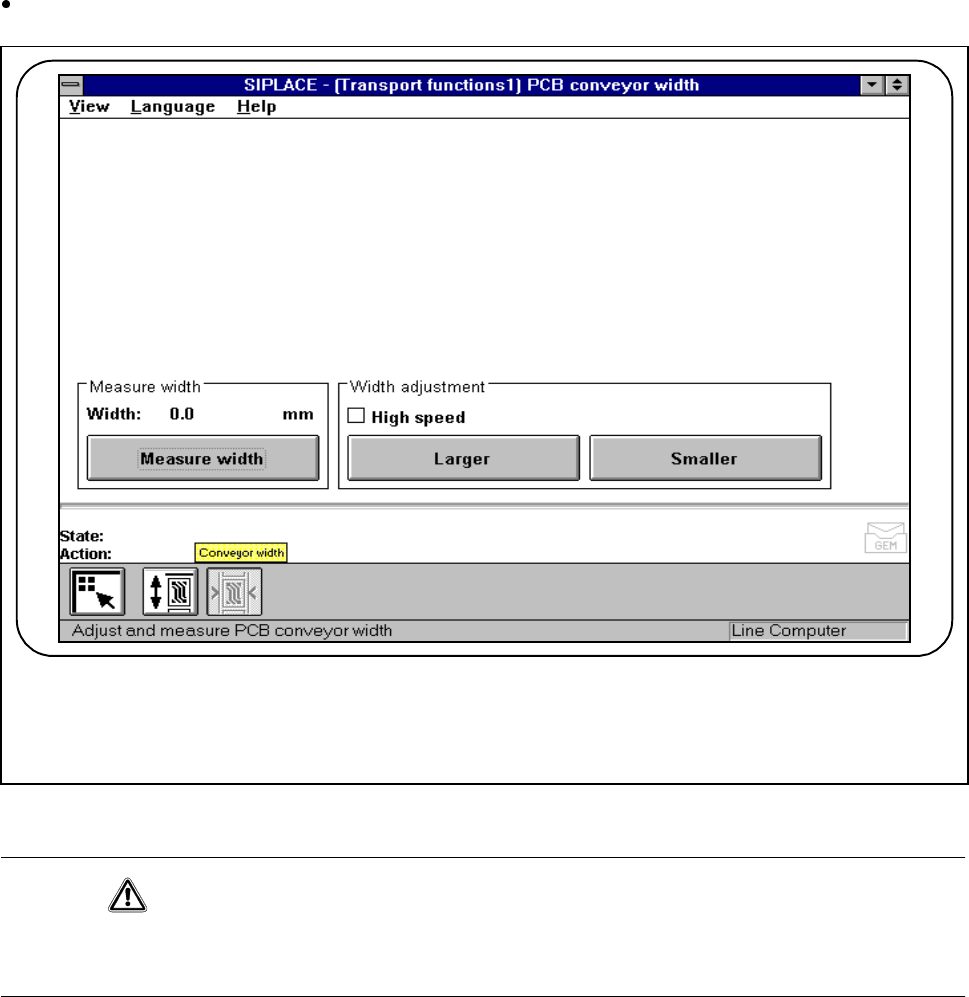

Fig. 4.4.3 Conveyor width
CAUTION
Before adjusting the conveyor width make sure that there are no boards or other objects on the machine’s
conveyors. Failure to do so may result in damage to the machine and board.
4.4.2.1 PCB Transport Width- Measure Width
Within the working area click on the Measure width button . The width of the board conveyor is measured,
displayed and saved.
F
4 Single Functions SIPLACE 80S-20/F4/F4-6 User’s Manual
4.4 Single Functions: Transport 1 Edition 07/97 from Software Version SR.403.xx
4 - 50
4.4.2.2 Adjusting the Width
Click on the High speed check box.
If the check box has been activated, clicking on the Larger button will cause the conveyor belts to be
moved apart at high speed.
If the check box has been deactivated, clicking on the Larger button will cause the conveyor belts to be
moved apart at low speed.
If the check box has been activated, clicking on the Smaller button will cause the conveyor belts to be
moved together at high speed.
If the check box has been deactivated, clicking on the Smaller button will cause the conveyor belts to be
moved together at low speed.
NOTE
Once width adjustment has been completed and upon quitting Single functions, the left-hand gantry will carry
out a search run in order to determine the width of the conveyor.
