SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 5 Vision Functi on s Edition 03/98 from S oftware Version SR.404.xx 5.5 Teach Fiducial Line engi neer 5 - 63 5.5. 5.2 Program Transform 5 Option’ When thi s option is activate d th…
5 Vision Functions SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
5.5 Teach Fiducial Edition 03/98 from Software Version SR.404.xx
5 - 62 Line engineer
5.5.5.1
Transforms 1 to 5
Option
When you select this options,
– the menu closes,
– the video image is displayed,
– the teach command is given, and
– header and footer with color table option, fiducial number and the uniqueness value are displayed.

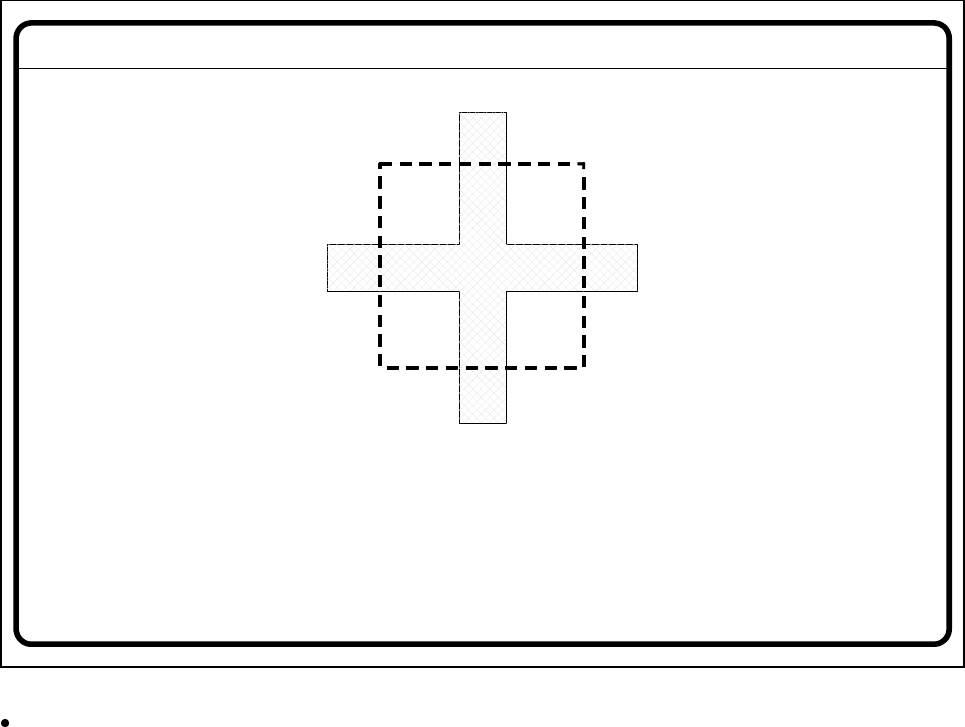

Fig. 5.5.14 Contrast sensitivity menu, Transforms 1-5 video image
Press Esc to quit this option.
Fiducial No. = 8 Uniqueness = 70
Disp. with transform 2
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 5 Vision Functions
Edition 03/98 from Software Version SR.404.xx 5.5 Teach Fiducial
Line engineer 5 - 63
5.5.5.2
Program Transform 5
Option’
When this option is activated the Contrast sensitivity transform 5 option box opens.

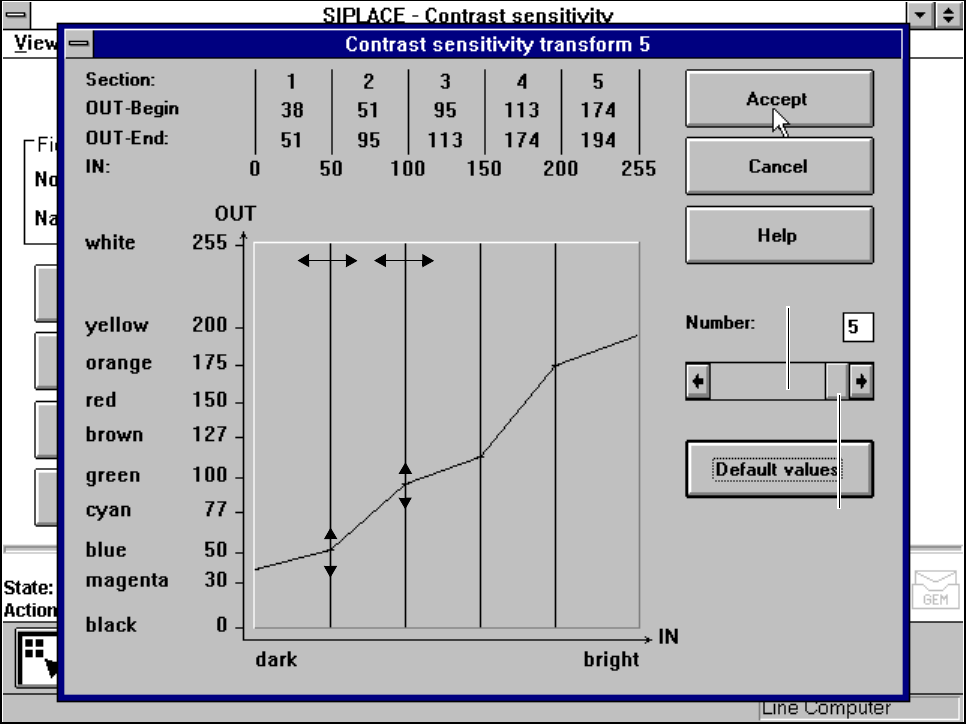

Fig. 5.5.15 Contrast sensitivity menu, Contrast sensitivity transform 5 option box
You can select the following parameters:
– Number of sections which the transformation table should have: a number between 1 and 5
– Choice of paired values: with 5 sections 10 value pairs are permitted.
Layout of the Contrast sensitivity transform 5 option box
Numerical presentation of Transform 5
The numerical values are indicated in the upper part of the option box. These are:
Section: Number of sections
OUT Begin: OUT End: Ranges of values for the transformation of the individual sections
IN: Range limits of the individual sections
Graphic presentation of Transform 5
In the diagram
– the abscissae (x axis) represent the input value range, subdivided into sections.
– the ordinates (y axis) represent the output values with their color allocation.
Scroll field
Scroll bar
5 Vision Functions SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
5.5 Teach Fiducial Edition 03/98 from Software Version SR.404.xx
5 - 64 Line engineer
Buttons
– Accept
Click on the Accept button to save the settings. The option box will then close.
– Cancel
With Cancel you can discard the settings. The option box will then close.
– Help
With the Help button you can access explanatory material regarding the on-screen presentation.
– Standard values
Click on the Standard values button if programming the transformation table fails. When you select this
option the transformation table will be preassigned default values. After this you can start over with pro-
gramming table 5.
– Number input field
You can choose the number of sections
by entering the numerical value directly into the display field, or
by moving the scroll field in the scroll bar to the right or left using the mouse. In this way you can run
back and forth through the values range (1 - 5), or
by clicking on the left-hand or right-hand arrow on the scroll bar. In this way you can increase or
decrease the number of selections.
Programming the transformation table
– Specifying the output values
Position the mouse pointer over the ends of the transformation lines of each section. The ends are marked
with small horizontal lines. A vertical double arrow will then appear on the screen. Click on the left-hand
mouse key and move the arrow upwards or downwards. This will move the selected end of the transforma-
tion line and the numerical value will be displayed at OUT Begin or OUT End.
– Selecting the section limits
The graphical representation in Fig. 5.5.15, Page 5 - 63 shows equidistant section limits with the ranges
0 - 50, 51 - 100 and so on. You can change these section limits if you wish. However limits 0 and 255 are
permanently allocated and cannot therefore be moved.
Position the mouse pointer on a section limit (but not 0 and 255). A horizontal double arrow will appear on
the screen. Hold down the lefthand mouse pointer and use it to drag the section limit in the direction you
want. The corresponding numerical value will be displayed at IN:.
– Once you have programmed your transformation table you can quit the option box by clicking on Accept
or Cancel. If you have not managed to obtain a satisfactory result, click on Default.
