SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 5 Vision Functions
Edition 03/98 from Software Version SR.404.xx 5.6 Test Component
Line engineer 5 - 77
5.6.3
Select Package Form
Menu
If you select the Test component option in the Main view menu this will launch the following actions:
The functions for the vision system are activated in the station computer
The Select package form menu will drop down.
The station computer will determine the package form numbers list with commentaries from the set-up.
Fig. 5.6.3 Select package form menu
The menu allows you to choose between the following options, as the diagram shows:
– Selection of the camera types (80F
4
, 80F
4
-6 or 80F
5
machines only, see Section 5.10, Page 5 - 157).
– Load GF data
– Save GF data
NOTE
Buttons are active when the text on the button is black (rather than gray). This means that you can launch the
associated function by clicking on the button with the mouse.
The Load GF data button will, for example, only be active if you have previously clicked on a package form in
the lists field.
The Save GF data button will only be active if you have changed the package form parameters.
5 Vision Functions SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
5.6 Test Component Edition 03/98 from Software Version SR.404.xx
5 - 78 Line engineer
You can switch from the ’Test component ’ menu to the Main menu at any time in order to start actions such
as "Fill track“ etc. The settings in the ’Teach fiducial’ menu will be retained, which means that the same condi-
tions will be set up when you return to the ’Test component’ menu.
However, if you have changed the fiducial data or taught a new fiducial, and then switch from the Main menu
to the ’Test component’, ’Single functions’, ’SITEST’ or ’Continue placement’ menu, the ’Save fiducial data’
selection box will appear when you leave the ’Teach fiducial’ option. You can then either save the modified or
new data or delete it.
By selecting the Save GF data option you cause the station computer to send the package form data to the
line computer, where they are saved. The modified package form data are updated in the remaining stations
as well. The transformation tables are held locally in the station computer.

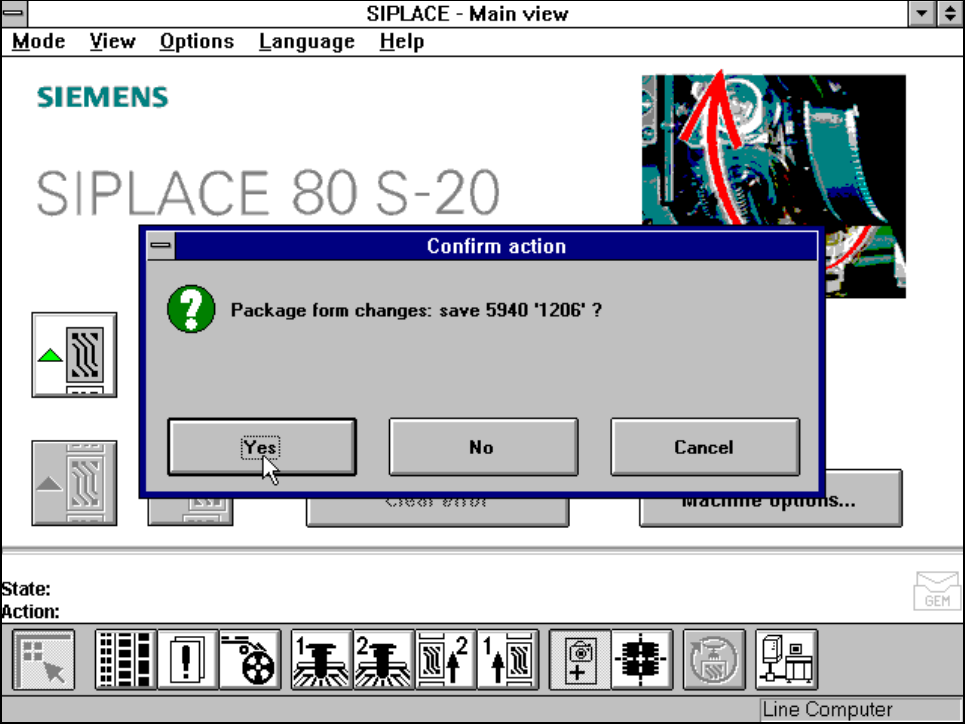

Fig. 5.6.4 Save GF data option box
