5 Vision Functions SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 5.6 Test Component Edition 03/98 from Software Version SR.404.xx 5 - 80 Line engine er 5.6. 3.2 Load GF data Option NOTE When you call t he Load GF data o ption,…

SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 5 Vision Functions

Edition 03/98 from Software Version SR.404.xx 5.6 Test Component

Line engineer 5 - 79

5.6.3.1

Camera Type

Option

NOTE

The buttons for selecting the different camera types can only be used with the 80F

, 80F

-6 or 80F

machines

(see Section 5.10, Page 5 - 157).

With the 80S-20 machine each gantry only has a single camera type used for optically centering the compo-

nents. For this reason the allocation of the Default button cannot be changed. You can see this by the fact

that the point of the button is black, while all other camera types are grayed out.

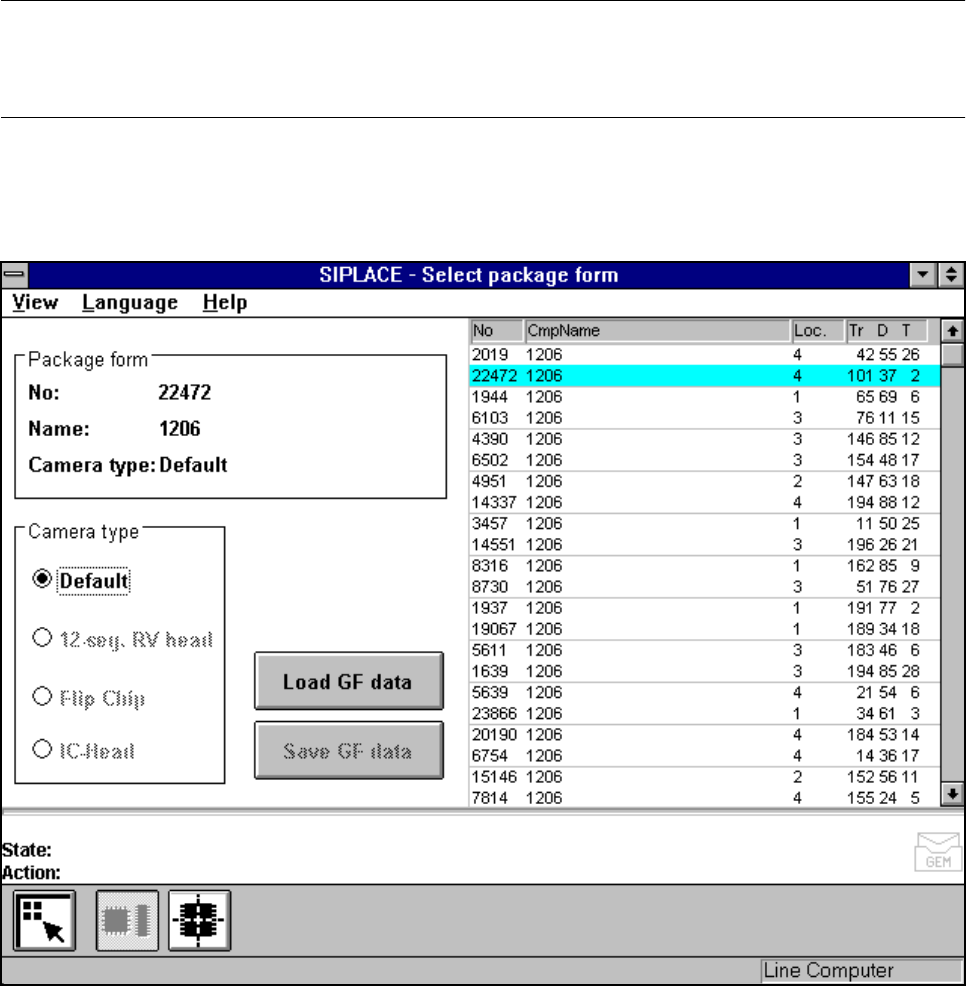

Fig. 5.6.5 Select package form menu, Camera type option

5 Vision Functions SIPLACE 80S-20/F4/F4-6/F5 User’s Manual

5.6 Test Component Edition 03/98 from Software Version SR.404.xx

5 - 80 Line engineer

5.6.3.2

Load GF data

Option

NOTE

When you call the Load GF data option, first of all the Save GF data box will drop down, provided that you

have already processed a package form (see Fig. 5.6.4, Page 5 - 78).

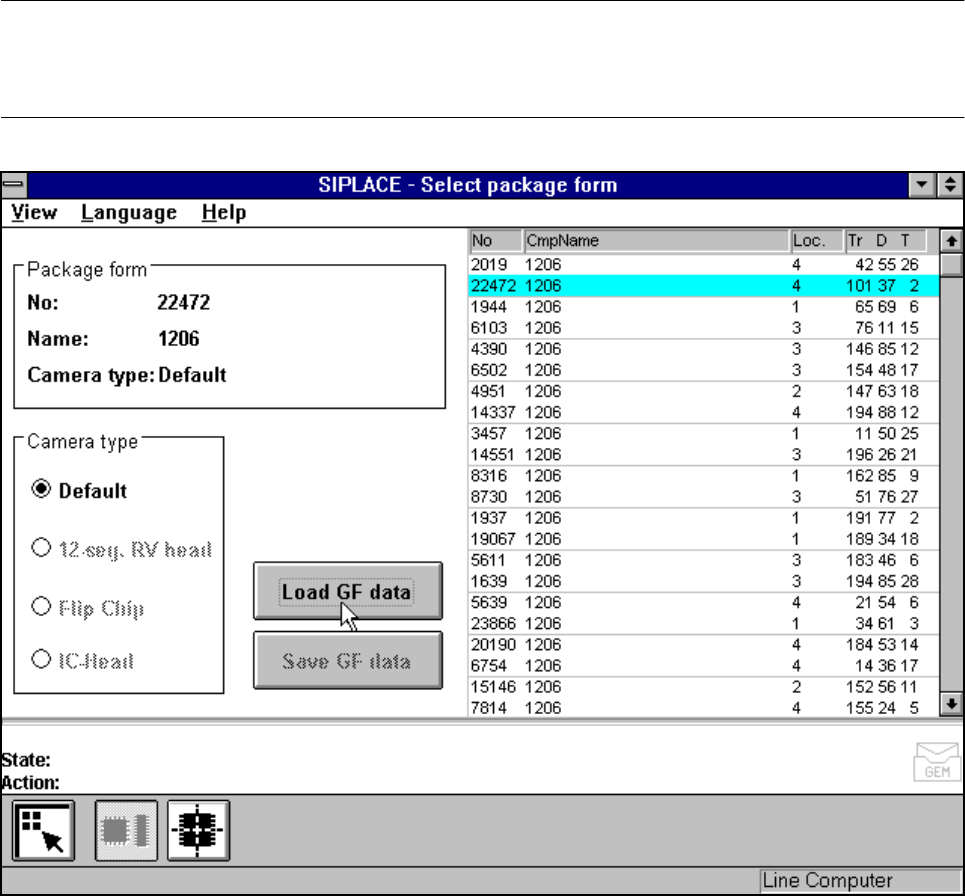

Fig. 5.6.6 Select package form menu, Load GF data package

If you wish to save your data, the package form file will be transmitted to the line computer. Following this

inquiry the component which has just been processed will be rejected and the package form number list

updated.

– From the list field use the mouse pointer to select a particular package form. The selected package form

will appear against a cyan-colored bar.

– Click on the Load GF data button. In the Package form display field the package form and the package

form will be displayed.

The station computer will request from the line computer the package form data of the selected package form.

The interpreter edits the data and generates the teaching command. With this command the edited package

form data are loaded into the MVS system (vision evaluation unit).

SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 5 Vision Functions

Edition 03/98 from Software Version SR.404.xx 5.6 Test Component

Line engineer 5 - 81

5.6.3.3

Save GF data

Option

With this option you can save package forms together with their changed parameters. The button will only be

active after you have modified the package form data.

Fig. 5.6.7 Select package form menu, Save GF data option

5.6.4

Test Component

If you click on the Test component icon the corresponding menu will drop down. As the diagram shows, the

following options, organized by group, are available to you:

Component Edit GF data

– Pick up – Illumination

– Display – Package dimension

– Test – Pin dimension

– Measure – Ball illustration

– Store image – Table

– Evaluat. time – Select component type (80 F

machine only, see Section 5.10 from Page 5 - 157)

– Measure mode
