SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 5 Vision Functions
Edition 03/98 from Software Version SR.404.xx 5.6 Test Component
Line engineer 5 - 83
5.6.4.1
Pick Up Component
Option
NOTE
Before you can activate this option you must have already loaded a package form number. If this is not the
case, the button will remain inactive.
Fig. 5.6.9 Test component menu, Pick up component option
When this option is activated the following actions are started:
– A component is picked up from a specific track.
– If there already is a component beneath the component camera it will be discarded.
– The options Test and Measure can be clicked on.
5 Vision Functions SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
5.6 Test Component Edition 03/98 from Software Version SR.404.xx
5 - 84 Line engineer
5.6.4.2
Display Component
Option
NOTE
Before you can activate this option you must have already loaded a package form number.
Fig. 5.6.10 Test component menu, Display component option
When this option is activated the following actions are started:
– The teach command will be given.
– The vision system generates the outside contours of the component from the synthetic description.
– The video image with the real camera image and the model displayed on it will be displayed on the screen.
– The header with commentaries is displayed.
The operator can now check the synthetic description visually against the real image.
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 5 Vision Functions
Edition 03/98 from Software Version SR.404.xx 5.6 Test Component
Line engineer 5 - 85

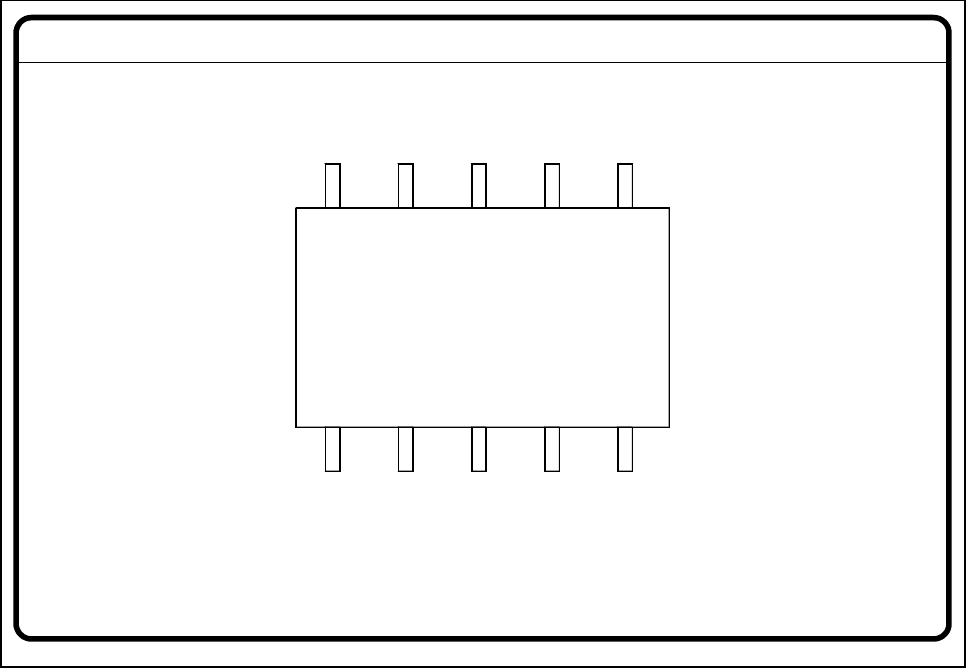

Fig. 5.6.11 Test component menu, Display component video image
– Use Esc to end the function. The video image disappears and the Test component menu is displayed
once more.
GF No. = 5Display component
