7.2 Diagnostics

7.2.1 General Comments

If errors occur while the board is being processed, a diagnostics program can be started for this error. You can

start this diagnostics facility either from the main view or from Display error.

This diagnostics facility will guide you as far as identifying a possible cause for the error and suggesting a

remedy. This is done by means of a series of questions. Information on the questions asked can be accessed

by pressing an information button.

7 Error Information & Diagnostics SIPLACE 80S-20/F4/F4-6 User’s Manual

7.2 Diagnostics Edition 03/98 from Software Version SR.403.xx

7 - 10

7.2.2 Basic Operation

If an error should occur during processing of the board, this error will be displayed in the status window.

● Click on the Diagnostics button.

Fig. 7.2.1 Diagnostics for error message no. 101

● The diagnostics main screen is displayed on the station software screen.

SIPLACE 80S-20/F4/F4-6 User’s Manual 7 Error Information & Diagnostics

Edition 03/98 from Software Version SR.403.xx 7.2 Diagnostics

7 - 11

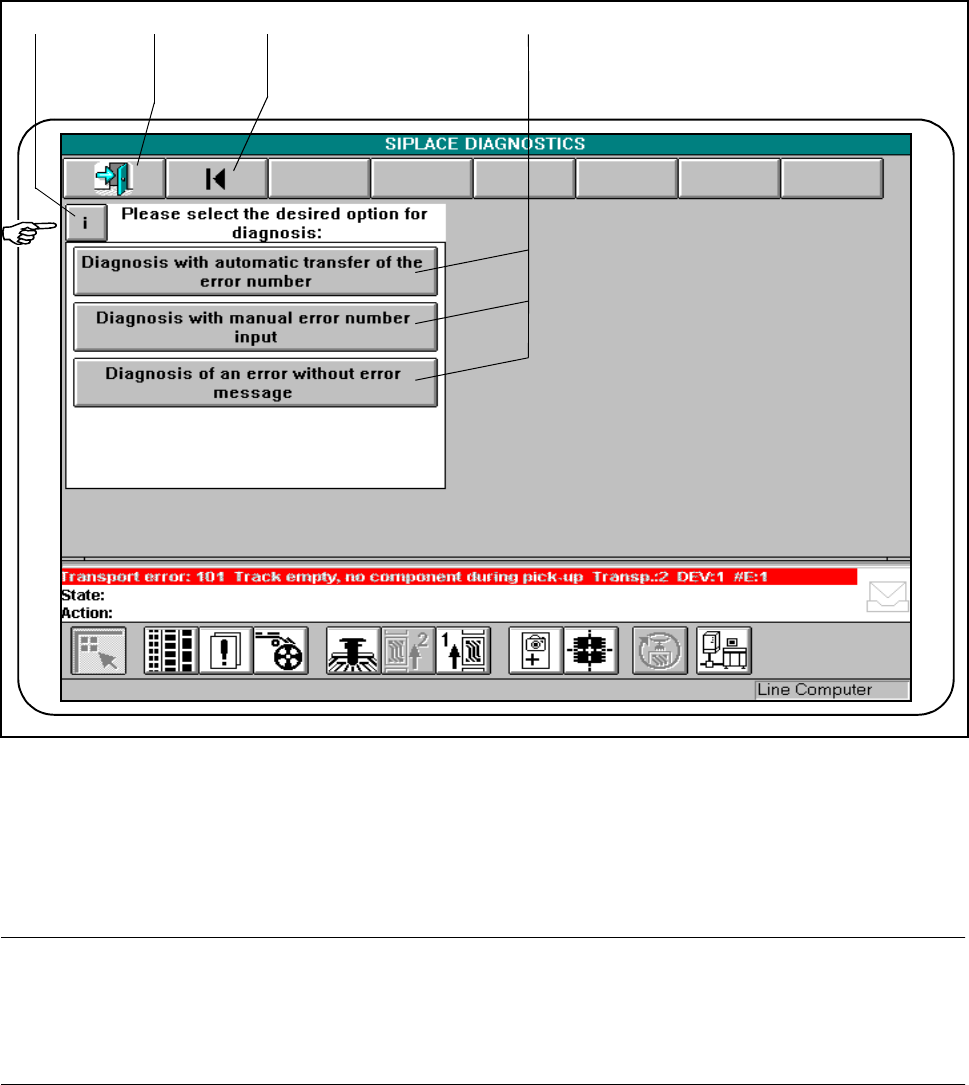

Fig. 7.2.2 Diagnostics main screen

- Key to Fig. 7.2.2

1 Information button 2 Finish diagnostics

3 Return to diagnostics main screen 4 Diagnostics buttons

NOTE

The symbol and status bars of the station software main menu remain displayed on the screen and you can

change to this view.

If you wish to return to diagnostics, press the Diagnostics button again.

1 2 3
