SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 9 Maintenance Edition 03/98 from S oftware Version S R.404.xx 9.3 Machine Base 9 - 39 9.3.9.2 Replacing the cutting edges of the fixed or moving cutting blades DANGER Switch o ff t…

100%1 / 744
9 Maintenance SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
9.3 Machine Base Edition 03/98 from Software Version SR.404.xx
9 - 38
9.3.9 Empty Tape Cutter on SIPLACE 80F
5
Automatic Placement
Systems
9.3.9.1 Maintaining the Sliding Surface between the Moving Cutting Blade and
Retainer
DANGER
Switch off the automatic placement system and disconnect from the power supply.
WARNING
Disconnect the automatic placement system from the compressed air supply.
Spray the two sliding surfaces between moving cutting blade and retainer with the lubricant and corrosion
inhibiting agent WD40.

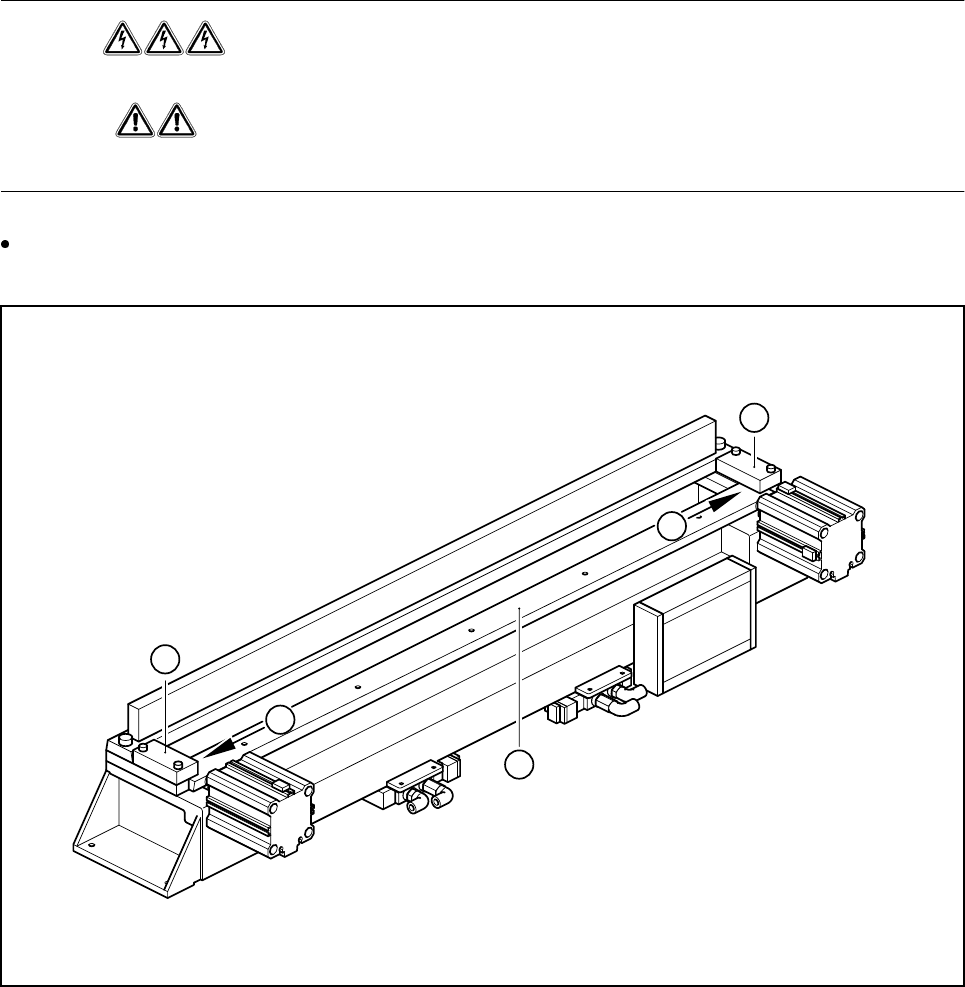

Fig. 9.3.8 Maintaining the sliding surfaces on the used tape cutter on SIPLACE 80F
5
automatic placement systems
- Key to Fig. 9.3.8
1 Moving blade
2 Retainer
A Spray the sliding surfaces with the lubricant and corrosion inhibiting agent WD40
2
A
2
A
1
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 9 Maintenance
Edition 03/98 from Software Version SR.404.xx 9.3 Machine Base
9 - 39
9.3.9.2 Replacing the cutting edges of the fixed or moving cutting blades
DANGER
Switch off the automatic placement system and disconnect from the power supply.
WARNING
Disconnect the automatic placement systems from the compressed air supply.
If there is a wafflepack changer installed, remove it first (see Section 9.8, Page 9 - 91).
Remove the component table (see section 9.3.3.7, Page 22).
Remove the used tape channel.
PLEASE NOTE
Always replace the cutting edges of the fixed and moving cutting blades at the same time since the two cutting
blade are mechanically matched to one another.
Loosen the two M6x30 hexagon socket head screws (point 2, Fig. 9.3.9) for fixing the fixed cutting blade
Raise the blade and mark the previously used cutting edge.
Loosen the two M4x25 hexagon socket head screws (point 4, Fig. 9.3.9) for fixing the moving cutting
blades. Use an SW 10 spanner to secure the square spacer (point 5, Fig. 9.3.9) to prevent it turning.
Turn the moving cutting blade you have removed 180° about the A-B axis (point A, Fig. 9.3.9).
Fix the moving cutting blade. Use the spanner to secure the square spacer (point
ƒ
, Fig. 9.3.9) to prevent it
turning.
Turn the fixed cutting blade about the A-B axis, 180° from the original position (point B, Fig. 9.3.9).
Fix the fixed cutting blade.
Remove the used tape channel and the component table.
Reinstall the wafflepack changer, if necessary.
9 Maintenance SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
9.3 Machine Base Edition 03/98 from Software Version SR.404.xx
9 - 40

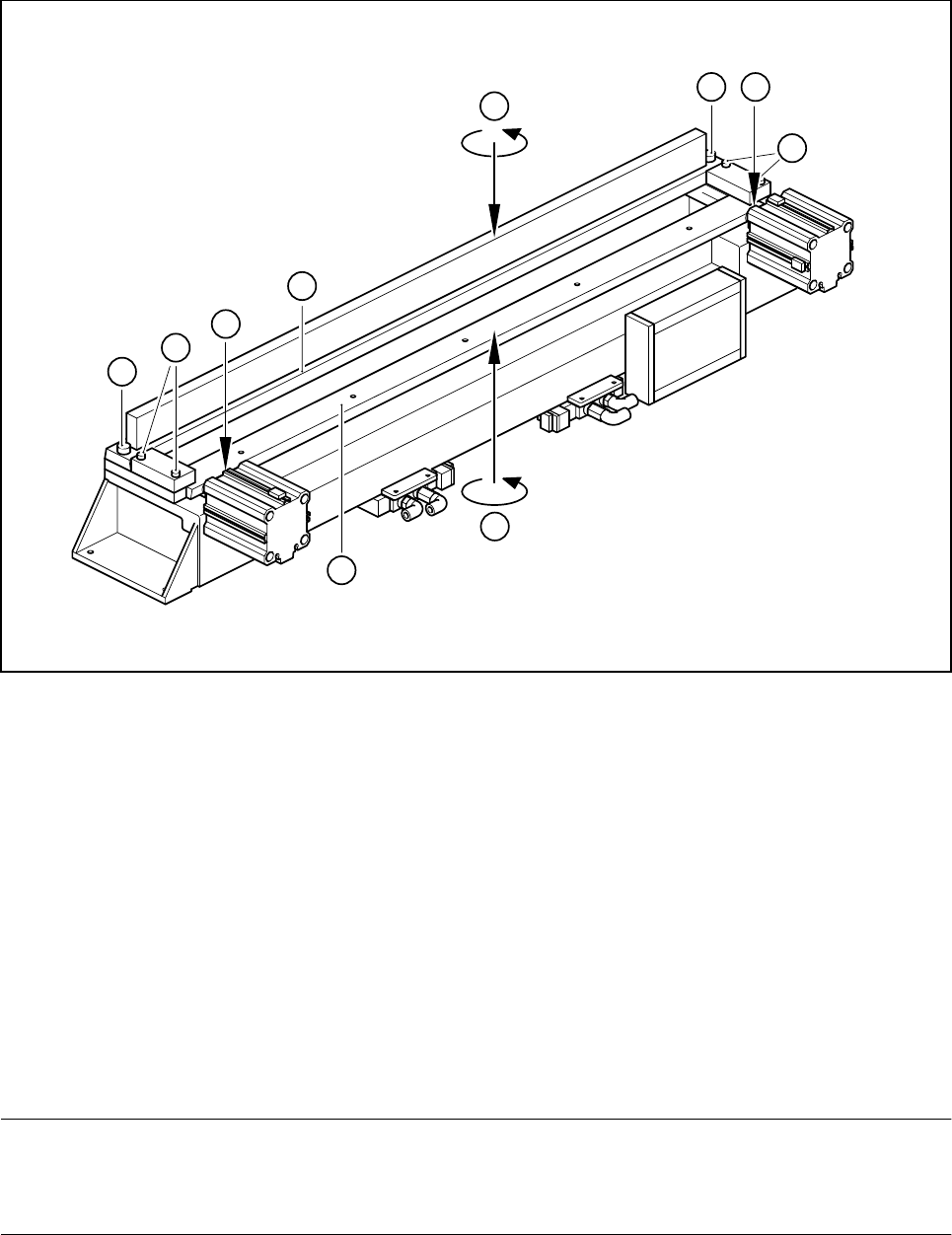

Fig. 9.3.9 Replacing cutting edges on the used tape cutter
- Key to Fig. 9.3.9
1 Fixed cutting blade
2 M6x30 hexagon socket head screw for fixing the fixed cutting blades
3 Moving cutting blade
4 M4x25 hexagon socket head screw for fixing the moving cutting blades
5 10x10 square spacer
A Turn the moving cutting blade through 180°
B Turn the fixed cutting blade through 180°
9.3.9.3 Replacing the fixed and moving cutting blades
Follow the procedure described under section 9.3.9.2 to replace the blades.
PLEASE NOTE
ALWAYS replace the fixed and moving cutting blades as a set since they are mechanically matched to one
another. If they are not replaced together, the used tape cutter may not work correctly.
2
A
4
5
180°
B
180°
3
5
4
1
2
