9 Maintenance SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 9.6 IC Head (SIPLACE 80F4/80F4-6/F5) Edition 03/98 from Software Version SR.404.xx 9 - 76
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 9 Maintenance
Edition 03/98 from Software Version SR.404.xx 9.6 IC Head (SIPLACE 80F4/80F4-6/F5)
9 - 75

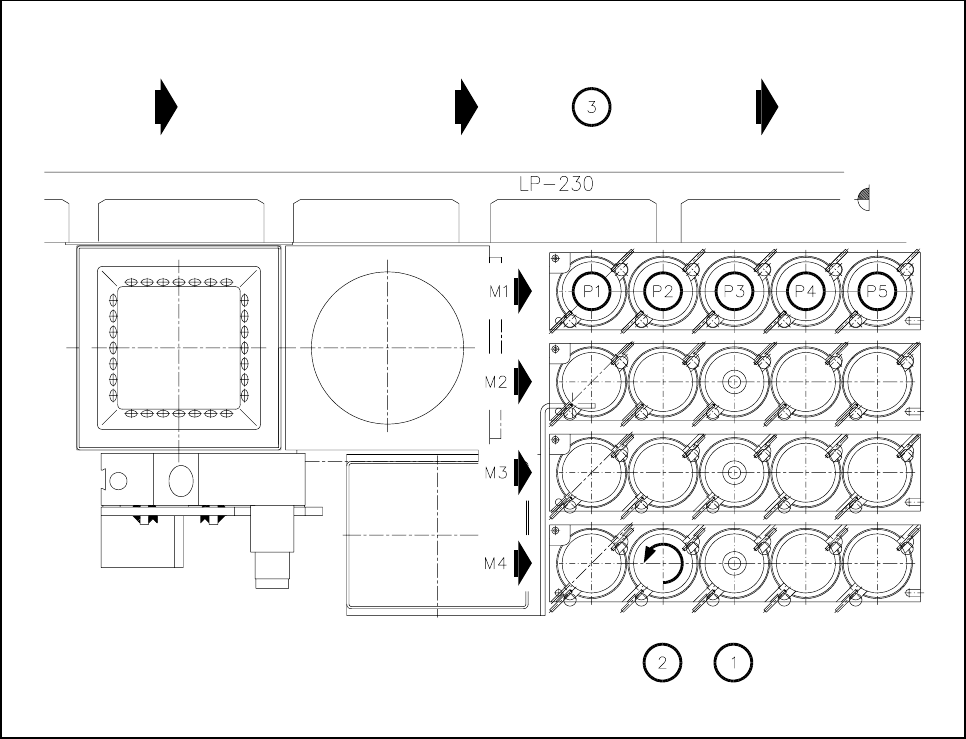

Fig. 9.6.11 Specifying the garage numbers in the nozzle changer
- Key to Fig. 9.6.11
1 Nozzle changer
2 Turn the nozzle counter-clockwise until it locks in place.
3 PCB transport direction
9.6.7 IC-Head Nozzle Survey
The nozzles setting instructions for the IC-head are given in section 17.2.2 of these operating instructions.
9 Maintenance SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
9.6 IC Head (SIPLACE 80F4/80F4-6/F5) Edition 03/98 from Software Version SR.404.xx
9 - 76
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 9 Maintenance
Edition 03/98 from Software Version SR.404.xx 9.7 6x Revolver Head (8000)
9 - 77
9.7 6x Revolver Head (8000)

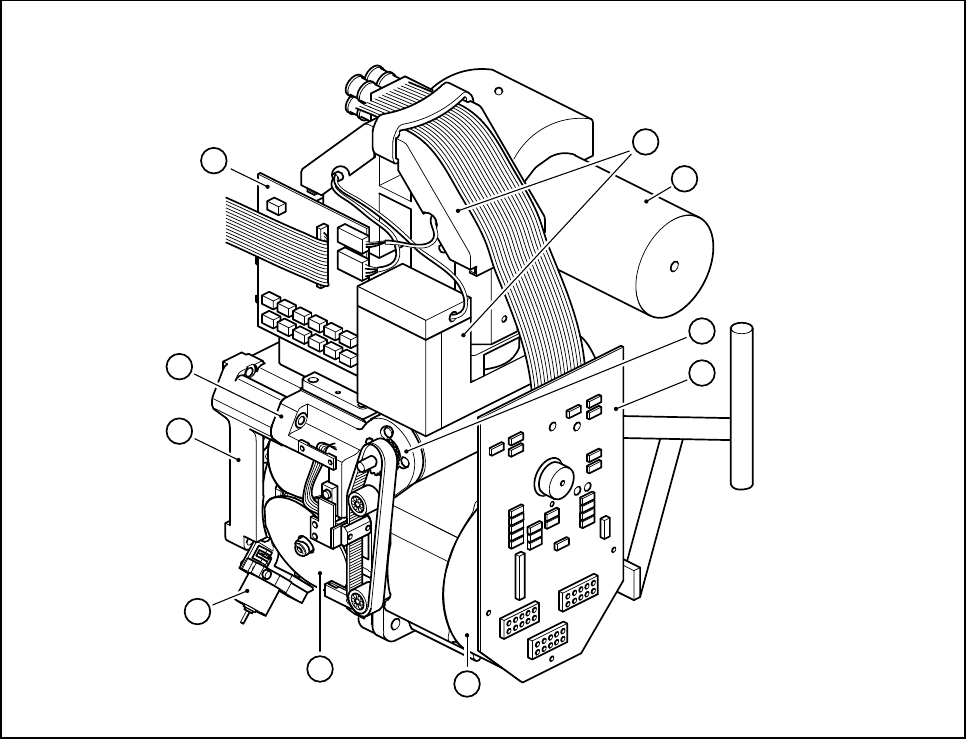

Fig. 9.7.1 6x revolver head, with cover removed
- Key to Fig. 9.7.1
1 Sleeves (6)
2 Motor for Eject valve actuator
3Back part
4Front part
5 Board for component illumination
6 Component camera with lens system and lighting
7Silencer
8 Z axis drive motor
9 Adapter board
10 Star drive
7
6
9
8
10
1
2
3
4
5
