10.5 Reel Container (New Group)
10.5.1 General Information
Tapes with a reel diameter of up to 15" can be used.
10.5.2 Overview

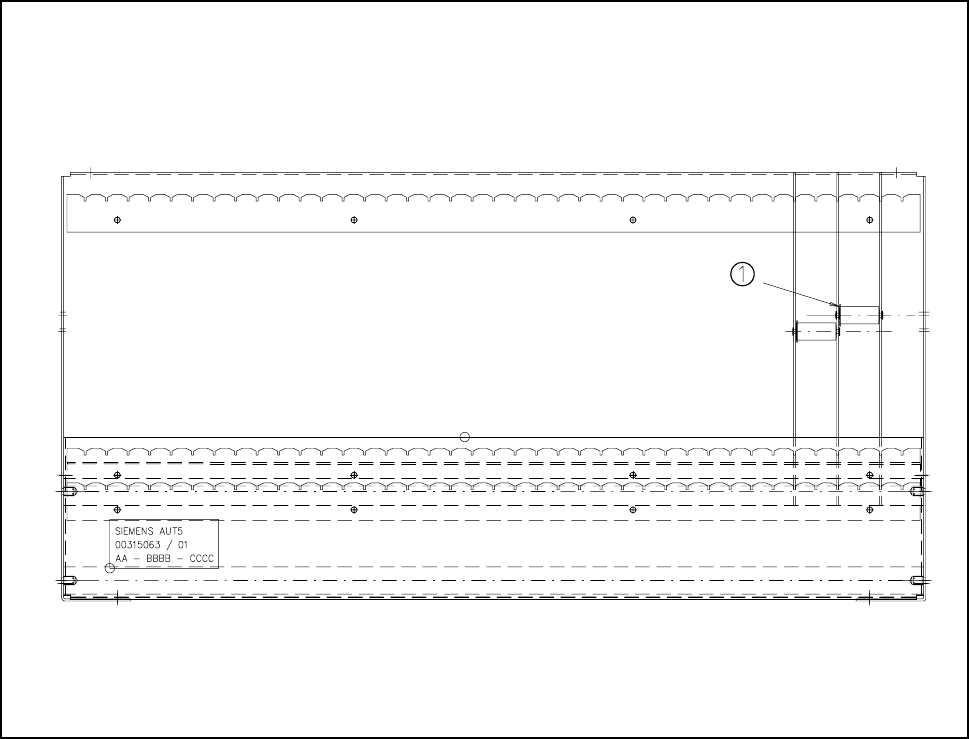

Fig. 10.5.1 Reel container - viewed from the top
- Key to Fig. 10.5.1
1 Insertion spindles are allocated to the tape modules
– The distance between spacers is halved (15.8 mm)
– Reel diameters of up to 15" can be used
– Use only 15" reels in the upper slot or seating on the rods
– Dividing walls are backward-compatible
10 Component Handling SIPLACE 80 S20/F4/F4-6/F5 User’s Manual
10.5 Reel Container (New Group) Edition 03/98 from Software Version SR.404.xx
10 - 18
NOTE
PLEASE NOTE
With large tape reels (> 5"), use insertion spindles to ensure that the conveyors operate reliably.

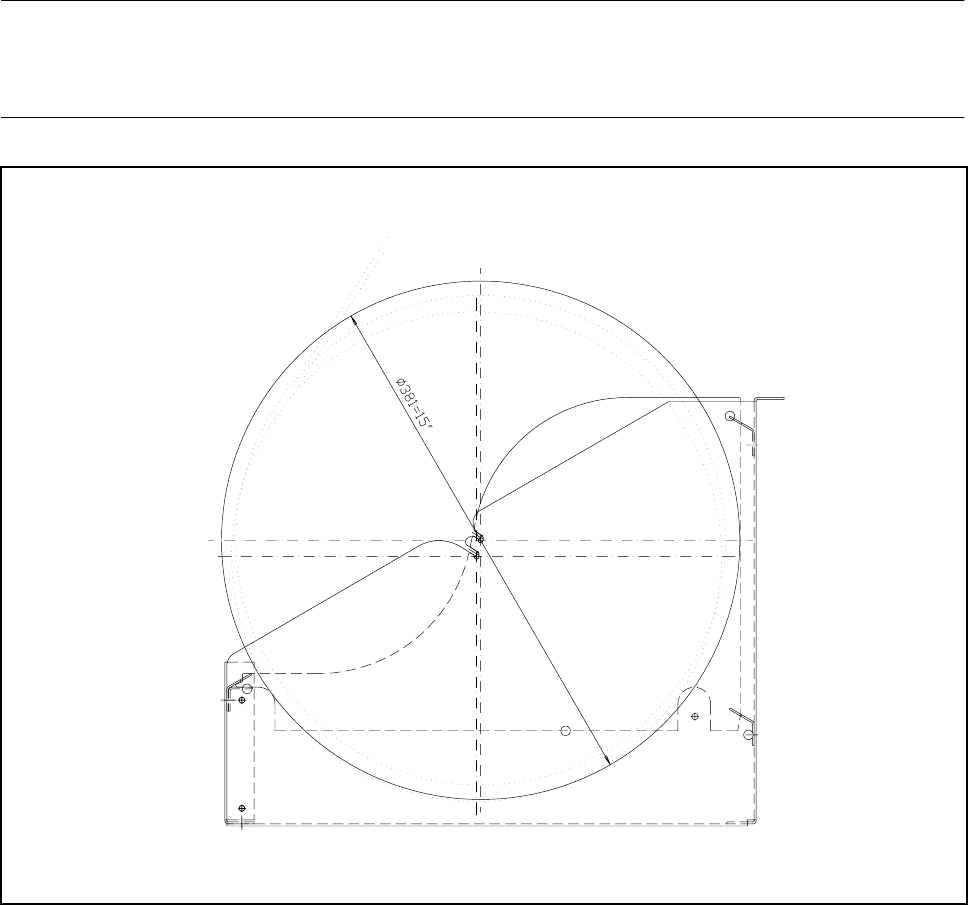

Fig. 10.5.2 Reel container - side view (reel inserted)
SIPLACE 80 S20/F4/F4-6/F5 User’s Manual 10 Component Handling
Edition 03/98 from Software Version SR.404.xx 10.6 Wafflepack Changer
10 - 19
10.6 Wafflepack Changer
10.6.1 Overview
Fig. 10.6.1 Wafflepack changer on SIPLACE 80F
4
- Key to Fig. 10.6.1
1 Wafflepack changer on location 1 2 Wafflepack changer
3 Location 2 4 IC placement head
5 Revolver head
