11.8.5.2 Connecting the ISDN Router to the Customer‘s Site LAN
The advantage of this alternative is that several placement lines can be addressed via a single router.
Fig. 11.8.2 Connection to the customer‘s site LAN
Line computer (LC)
Router
Station com-
puter
Machine
controller
SIPLACE
LAN
Router
Station com-
puter
LAN
Line computer(LC)
Service center
Customer‘s central site network
= LAN card
ISDN
network
Customer‘s placement line
11 Station Extensions/Options SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
11.8 Remote Service Edition 03/98 from Software Version SR.404.xx
11 - 58
11.8.6 Procedure and Operation
Make contact with your service center (in Munich, Alpharetta or Singapore) by telephone.
Follow the instructions of the engineer.
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 11 Station Extensions/Options
Edition 03/98 from Software Version SR.404.xx 11.9 GEM Interface
11 - 59
11.9 GEM Interface
11.9.1 General Comments
GEM => Generic Equipment Model
SECS-II => Semiconductor Equipment Communication Standard, Part 2
Host => Communications computer
With the GEM / SECS-II interface it is possible to control a SIPLACE station using any host which is compati-
ble with GEM. However, the SIPLACE station must be left connected to the line computer to allow the
machine, set-up and cluster data to be programmed and loaded into the station. The SIPLACE station packs
these data into a placement program and makes this available to the host for reading. During operation, and
depending on the control mode, the host or the line computer provides the SIPLACE station with the neces-
sary machine, set-up and cluster data.

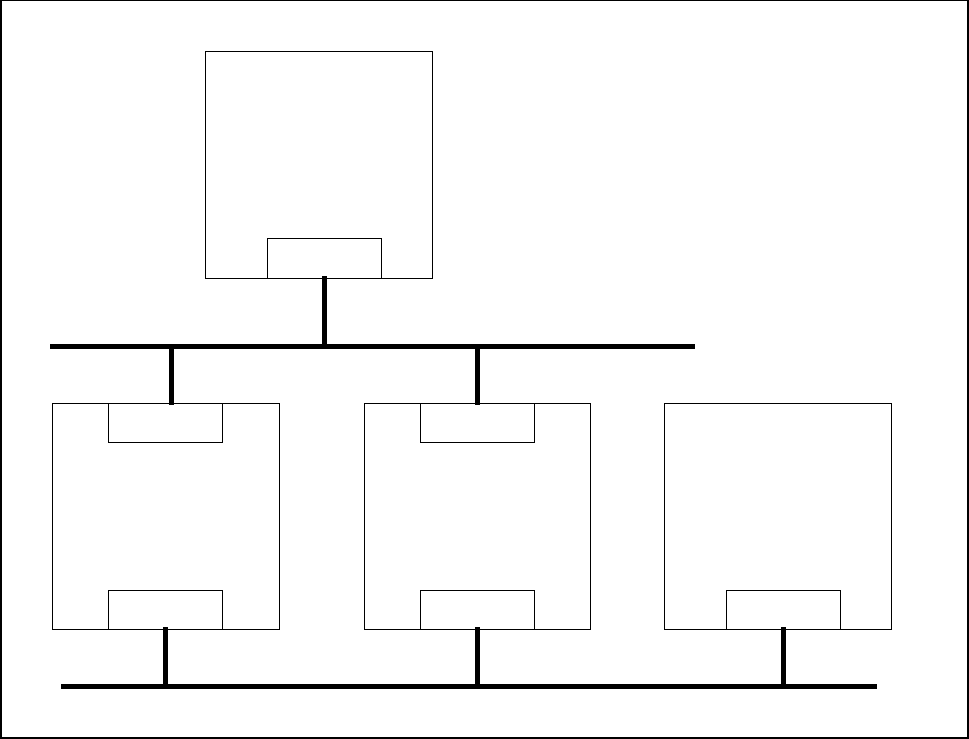

Fig. 11.9.1 General view of overall structure
Host
GEM
Line computer
LAN
SIPLACE 80 S-20
GEM
LAN
SIPLACE 80 F
4
SIPLACE 80 F
4
-6
SIPLACE 80 F
5
GEM
LAN
SIPLACE LAN
Customer‘s LAN
