SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 11 Station Extensions/Options
Edition 03/98 from Software Version SR.404.xx 11.9 GEM Interface
11 - 67
11.9.2.5 GEM Status Window
In the status window the user is kept informed of the status of the connection with the host. The various sta-
tuses are indicated by different background colors.
l Red
No connection
l Yellow
Setting up connection
l Green
Connection made
In addition to displaying the status of the host connection, the status window also shows the operator whether
messages have been received from the host. The envelope icon will either be lit or dark, depending on the
status. See Fig. 11.9.6

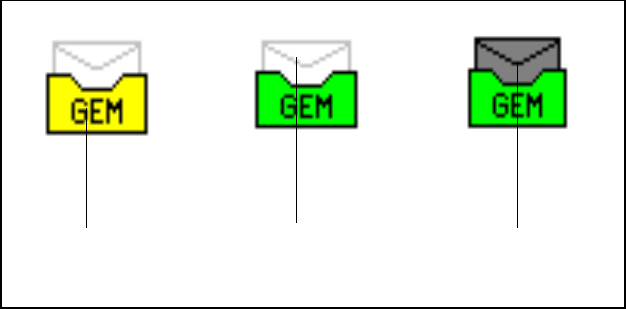

Fig. 11.9.6 GEM status window
- Key to Fig. 11.9.6
1 Status of the connection to the host (red, yellow, green) 2 No messages waiting (lit)
3 Messages waiting (dark)
1
2
3
11 Station Extensions/Options SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
11.9 GEM Interface Edition 03/98 from Software Version SR.404.xx
11 - 68
11.9.2.6 Status Display
In the main view click on the icon for GEM (see Fig. 11.9.2). You can pick any one of three different menus
(see Fig. 11.9.7).
Click on the State display icon.
Fig. 11.9.7 Menu selection, GEM interface
- Key to Fig. 11.9.7
1 Main view 2 Status display
3 Load placement program 4 News
l SECS connection (see also Section 11.9.2.3 "GEM Default Settings")
Click on the Connect button. The connection between the SIPLACE station and the host will be set
up.
Click on the Disconnect button. The connection between the SIPLACE station and the host will be
terminated.
The current state of the action performed is shown in the State field.
1 3 4
F
2
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 11 Station Extensions/Options
Edition 03/98 from Software Version SR.404.xx 11.9 GEM Interface
11 - 69
l Control (See also Section 11.9.2.3 "GEM Default Settings")
Click on the Local button. Placement programs can be uploaded to the host by the station. No place-
ment programs can be downloaded from the host by the station.
Click on the Remote button. Placement programs can be uploaded to the host by the station and
placement programs can be downloaded from the host by the station.
Click on the Off-line button. It is not possible to send or receive messages. The connection is
retained.
NOTE
If the host drops the control connection, the connection goes into the status Off-line (only the host can
set up the connection). In the SIPLACE station this state can only be quit by pressing the Off-line but-
ton. Only then the functions Remote and Local are available once more.
l Spooling (see also Section 11.9.2.3 "GEM Default Settings")
The spooling states active and inactive are displayed in the Status display field.
- Active: The connection to the host has been interrupted. Messages are being collected.
- Inactive: The connection to the host is OK. Messages are being sent to the host.
The Write display field indicates whether the allocated storage is full or whether there is still capacity
in the spooling file.
