11.12.5 Emptying the Reject Container
The capacity of the reject container is approximately 50 nozzles from nozzle family 7xx and approximately 5
nozzles from nozzle family 8.xx. To prevent faults during placement, you must regularly empty the reject con-
tainers.

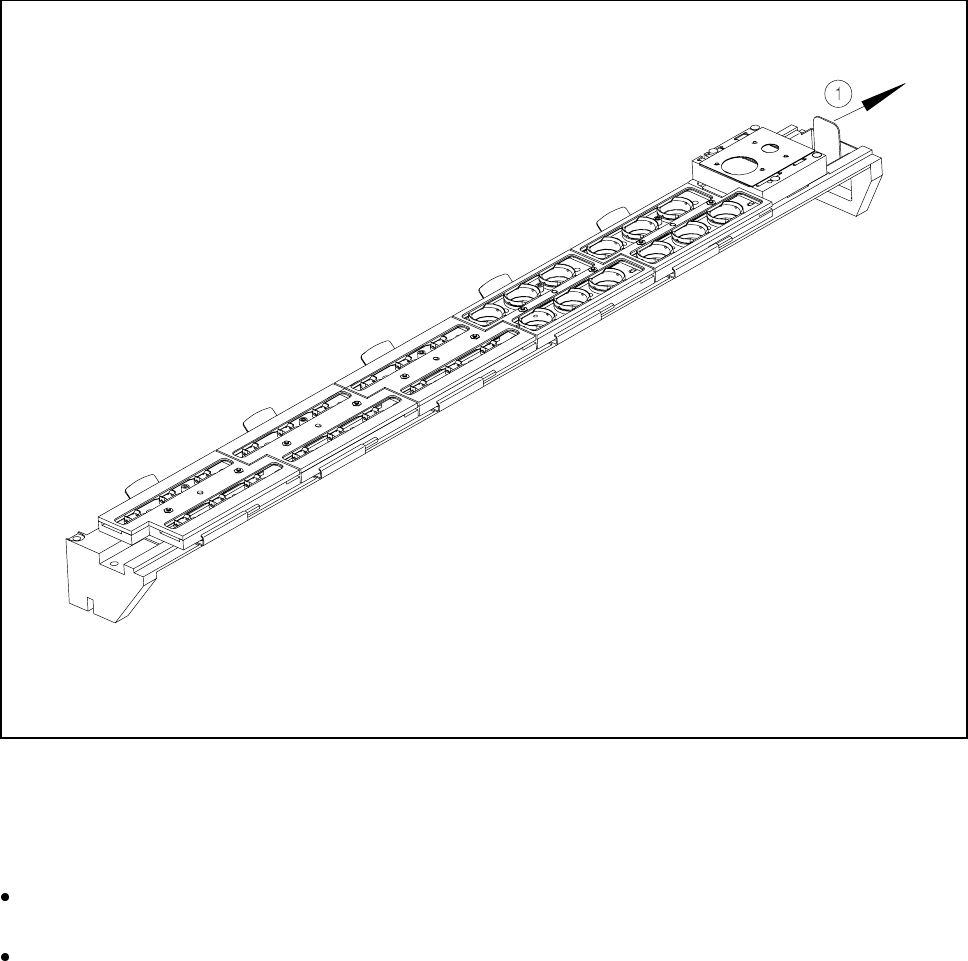

Fig. 11.12.4 Emptying the reject containers
- Key to Fig. 11.12.4
1 Removing reject containers
Pull the reject container out of the holder in the direction of the arrow and lift the reject container out of the
support.
To use the reject container again, push it back into the holder.
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 11 Station Extensions/Options
Edition 03/98 from Software Version SR.404.xx 11.12 Nozzle Changer for the 6x Revolver Head
11 - 89
11.12.6 Changing the Magazine
To remove the magazine, push the spring hooks to the side and lift the magazine out of the support.

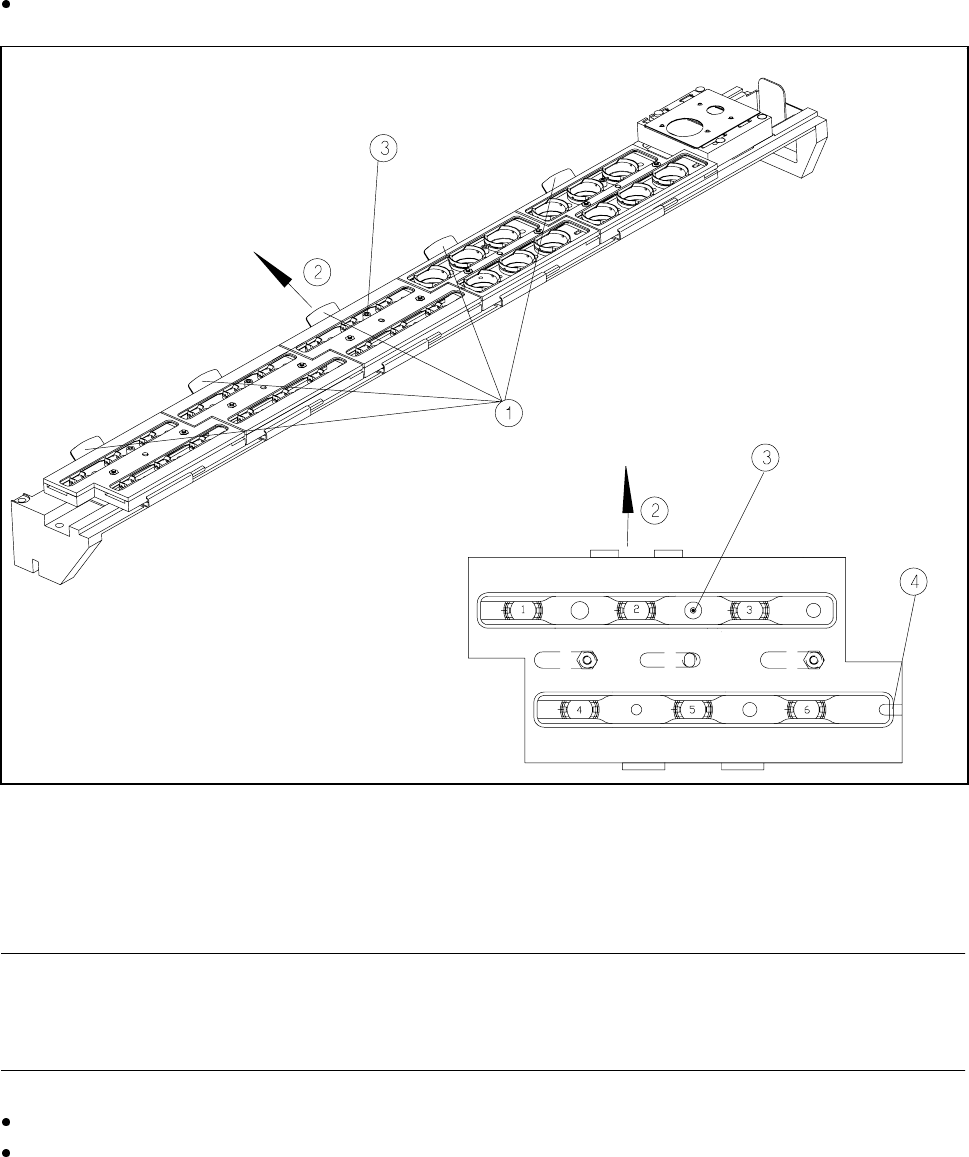

Fig. 11.12.5 Changing the magazine
- Key to Fig. 11.12.5
1 Spring hook 2 Push the spring hook to the side
3 Fiducial 4 Latching groove
PLEASE NOTE
The magazine must be inserted so that the side with the fiducial points towards the spring hook. There is a
latching groove on the other side of the magazine.
To insert the magazine, insert the side with the groove on the support.
Push the spring hook to the side and click the entire magazine onto the support. Release the spring hook.
The spring hook must latch in place.
