17 Nozzle Overview SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 17.1 Nozzle Contour Diagrams Edition 03/98 from Software Version SR.404.xx 17 - 8 17.1.3 Noz zle Contour D iagrams Diagrams 17.1.6 to 17.1.1 2 contain the nozzle…
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 17 Nozzle Overview
Edition 03/98 from Software Version SR.404.xx 17.1 Nozzle Contour Diagrams
17 - 7

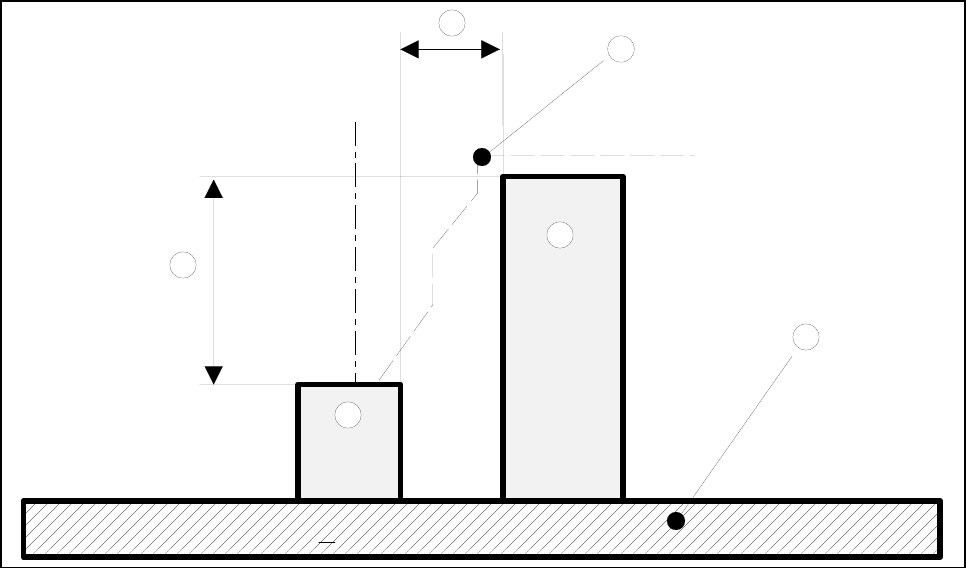

Fig. 17.1.5 Correlation between components height difference and placement shadow
- Key to Fig. 17.1.5
1 Components height difference 2 Placement shadow
3 Nozzle contour from diagram 4 PCB
5 Component 1 6 Component 2
Component 1 can now be inserted with the selected nozzle as close to component 2 as the height difference
of the two components permits.
1
2
3
4
6
5
17 Nozzle Overview SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
17.1 Nozzle Contour Diagrams Edition 03/98 from Software Version SR.404.xx
17 - 8
17.1.3 Nozzle Contour Diagrams
Diagrams 17.1.6 to 17.1.12 contain the nozzle contour diagrams for the narrow and wide sides of each nozzle
type.
Nozzle type Contour diagram
narrow side
Contour diagram
long side
70x Vectra / ceramic Fig. 17.1.6 Fig. 17.1.7
71x, 72x Vectra C130 Fig. 17.1.8 Fig. 17.1.9
75x Vectra / polyurethane,
ESD-conductive
Fig. 17.1.10 Fig. 17.1.11
8xx Vectra C130 / Evoprene Fig. 17.1.12
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 17 Nozzle Overview
Edition 03/98 from Software Version SR.404.xx 17.1 Nozzle Contour Diagrams
17 - 9

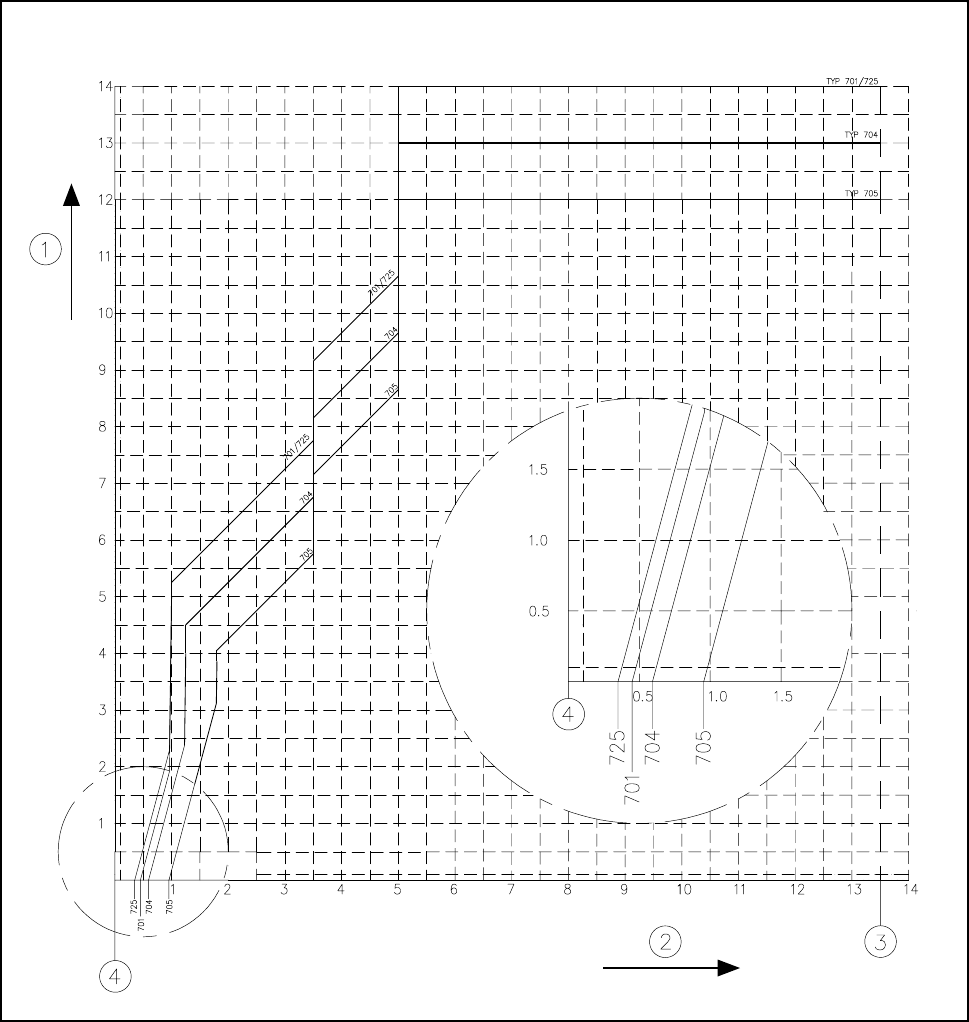

Fig. 17.1.6 Nozzle contour for nozzle type 7xx / ceramic / narrow side
- Key to Fig. 17.1.6
1 Components height difference [mm] 2 Placement shadow [mm]
3 Outer edge of encoder disk 4 Center of nozzle
