17 Nozzle Overview SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
17.2 Overview of Nozzles Edition 03/98 from Software Version SR.404.xx
17 - 24
17.2.2 Nozzle Types of the IC Placement Head

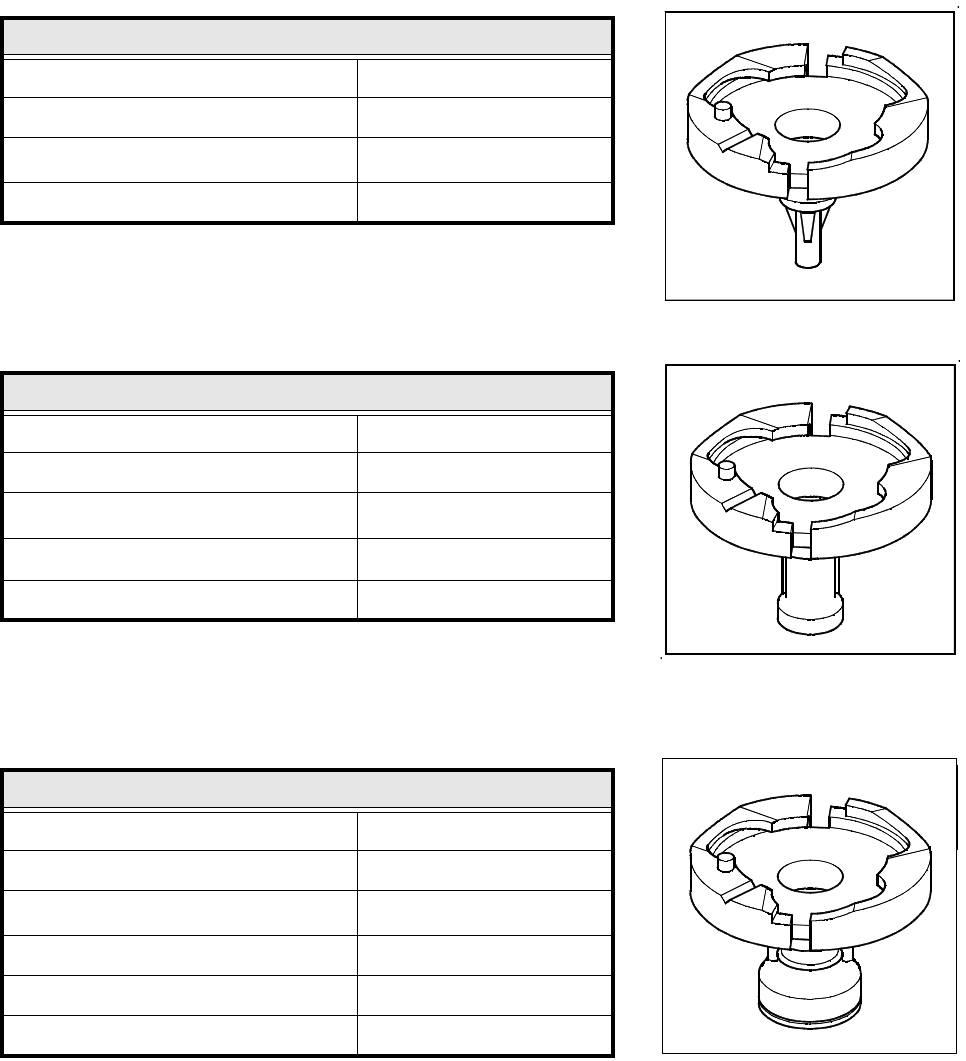

Nozzle type 416
Outside contour 3 mm x 6 mm
Material Vectra A 700
Effective suction area
9.1 mm
2
From item number 00322545-01
Nozzle type 417
Outside diameter ∅ 8 mm
Material Vectra A 700
Effective suction area
28.3 mm
2
Effective suction diameter
Ø
6 mm
From item number 00322543-01
Nozzle type 418
Outside diameter ∅ 12.5 mm
Material Vectra A 700
Effective suction area
78.5 mm
2
Effective suction diameter 10 mm
From item number 00322544-01
Membrane for nozzle 00307052-03
SIPLACE 80S-20/F4/F4-6/F5 User’s Manual 17 Nozzle Overview
Edition 03/98 from Software Version SR.404.xx 17.2 Overview of Nozzles
17 - 25
17.2.2.1 Special Type 412 Nozzle for Flip-Chip Placement

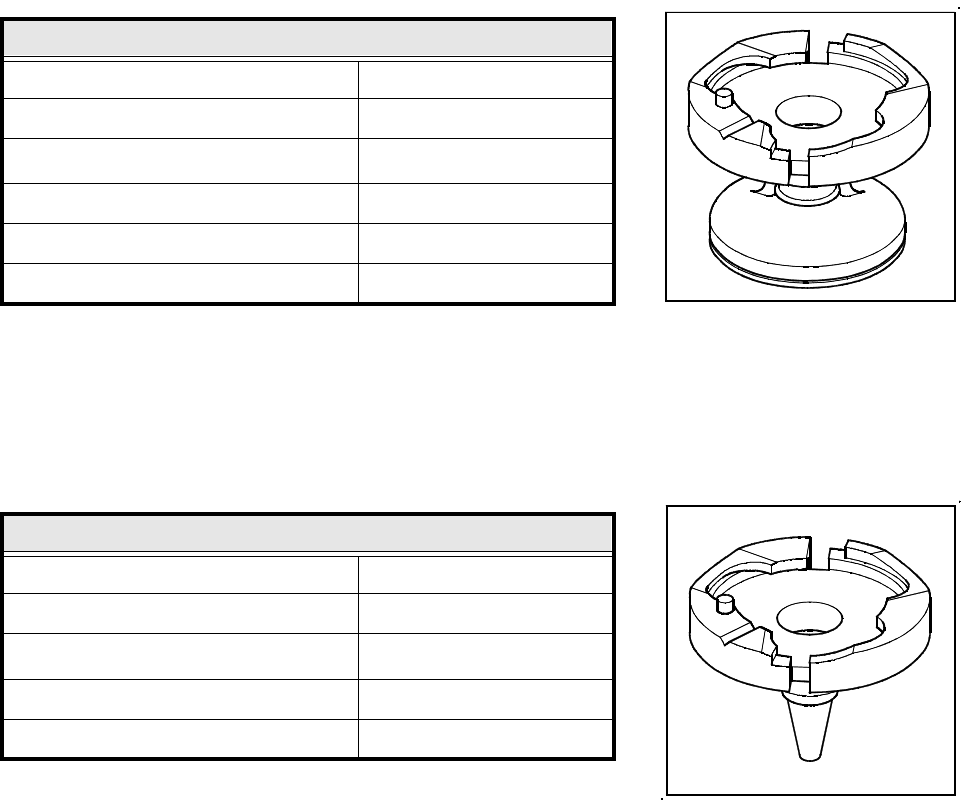

Nozzle type 419
Outside diameter ∅ 24 mm
Material Vectra A 700
Effective suction area
363 mm
2
Effective suction diameter 21.5 mm
From item number 00322546-01
Membrane for nozzle 00310569-03
Nozzle type 412
Outside diameter ∅ 1.8 mm
Material Vectra A 700
Effective suction area
0.8 mm
2
Effective suction diameter 1.0 mm
From item number 00319910-01
17 Nozzle Overview SIPLACE 80S-20/F4/F4-6/F5 User’s Manual
17.2 Overview of Nozzles Edition 03/98 from Software Version SR.404.xx
17 - 26
17.2.3 Nozzle Types for the 6x Revolver Placement Head
For nozzle types 714 - 724 and 751 - 756 refer to Section 17.2.1 Page 17 - 17.
r

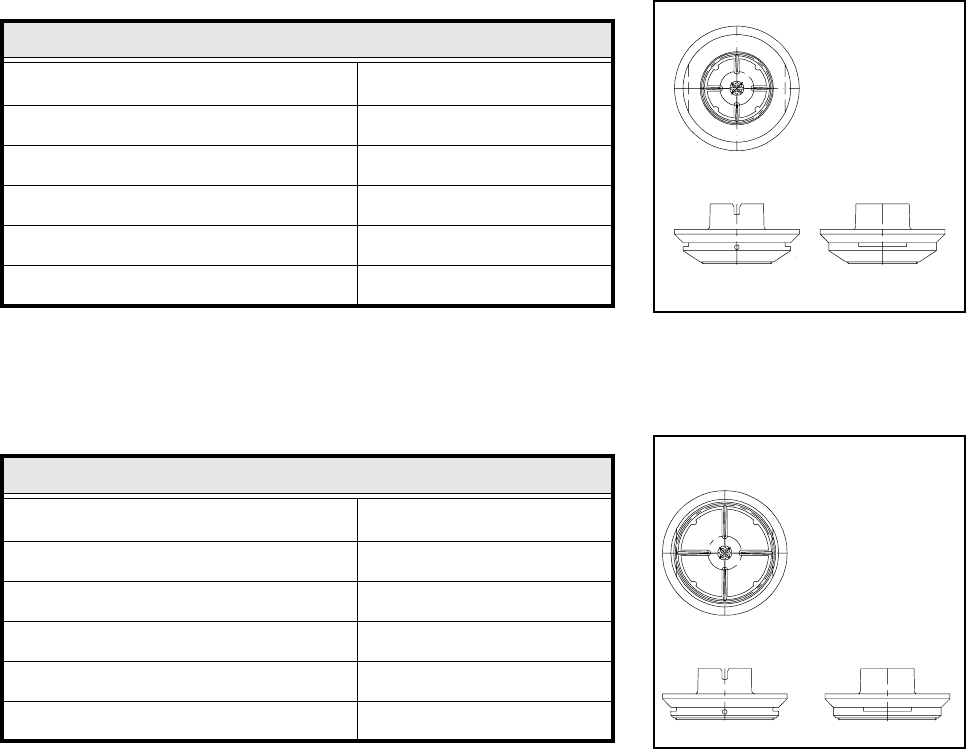

Nozzle type 820
Suction cross-section
113.09 mm
2
Height 10.5 mm
Material Vectra C120/Evoprene
Insertable components PLCC/2.75 < H < 6.75
Color coding WHITE
From item number 00326123-01
Nozzle type 821
Suction cross-section
226.98 mm
2
Height 9.25 mm
Material PEPT Ertalyte, black
Insertable components PLCC / 4.25 < H < 8.75
Color coding LIGHT GREEN
From item number 00326124-01
