KL T -1506 27,29,32,34 (Mov .) 26,28,30,31,33,35 (Fix.) 6 7 20 18 6 2 15 10 19 21,23,25, 8 3 9 11 17 13 6 14 7 5 20 22,24 4 2 1 10 3 8 9 11 17 12 16 18 6 5 1 4 5 2 Stopper Assy Conveyor

100%1 / 53
KLT-1506
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 $SL4-M5 JOINT 2 43
2 $SSU4 SPEED CONTROLLER 2 44
3 91312-04008 BOLT HEX,SOCKET HEAD 8 45
5 91312-05010 BOLT HEX,SOCKET HEAD 6 46
7 92012-04008 BOLT, BOTTON HEAD 8 47
8 92017-06010 BOLT BUTTON HEAD 4 48
9 92902-05200 WASHER,PLAIN 2 49
10 98502-03008 SCREW PAN HEAD 4 50
11 98707-04006 SCREW,FLAT HEAD 4 51
12 98707-04010 SCREW,FLAT HEAD 6 52
14 KKH-M920S-01 BLOCK,CYLINDER 1 /
Í
53
15 KKH-M920T-01 BRKT.,CYLINDER 1 /
Í
54
16 KLT-M653L-01 SEN.PU UP ASSY. 1 /
Í
55
17 KLT-M653M-01 SEN.PU DOWN ASSY. 1 /
Í
56
19 KLT-M920D-A0 PUSH UP PIN UNIT 3 /
57
20 KLT-M9211-00 PLATE,1 1 /
Í
58
21 KLT-M9212-00 STAY,1 1 /
Í
59
22 KLT-M9213-00 CYLINDER JOINT,A 1 /
Í
60
23 KLT-M9214-00 BRKT.,CYLINDER 1 /
Í
61
24 KLT-M9216-00 SHAFT 2 /
Í
62
25 KLT-M9217-00 LINEAR BUSH 2 /
Í
63
26 KLT-M9218-00 STAY,SENSOR 1 /
Í
64
27 KLT-M9219-00 DOG,1 1 /
Í
65
28 KLT-M9221-00 DOG,2 1 /
Í
66
29 KLT-M9222-00 COVER,SHAFT 2 /
Í
67
30 KLT-M9215-00 CYLINDER 1 B
Í
68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
39 77
40 78
41 79
42 80
5
1
Push Up
Conveyor
KLT-1506
27,29,32,34 (Mov.)
26,28,30,31,33,35 (Fix.)
6
7
20
18
6
2
15
10
19
21,23,25,
8
3
9
11
17
13
6
14
7
5
20
22,24
4
2
1
10
3
8
9
11
17
12
16
18
6
5
1
4
5
2

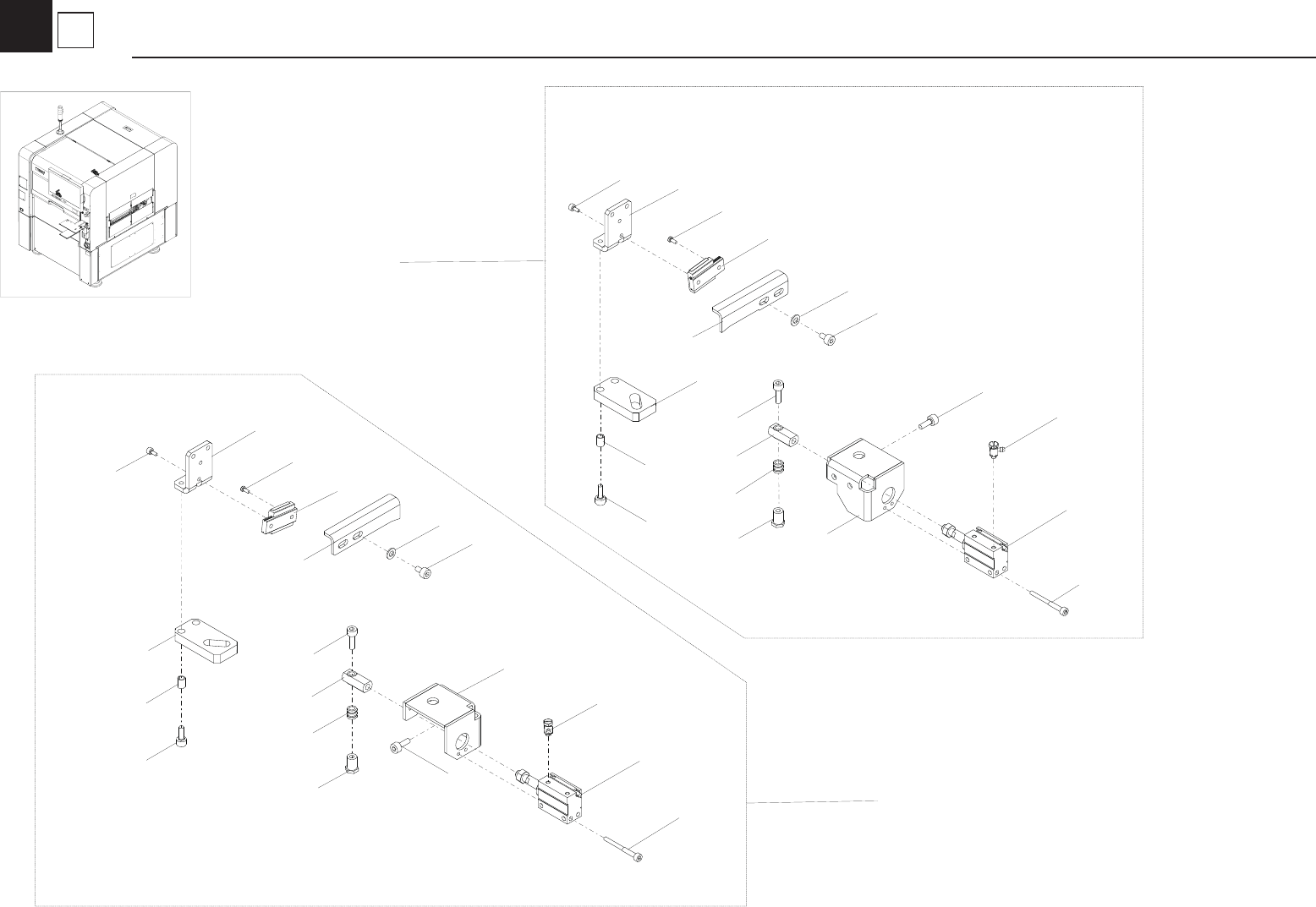

Stopper Assy
Conveyor
KLT-1506
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 $UEF4BU-M3 JOINT 10 39
2 90112-2AJ005 BOLT, HEX.SOCKET HEAD 10 40
3 90990-08J027 SCREW, PAN HEAD 10 41
4 91312-03030 BOLT HEX,SOCKET HEAD 10 42
5 91312-04006 BOLT HEX,SOCKET HEAD 10 43
6 91312-04010 BOLT HEX,SOCKET HEAD 20 44
7 KHW-M916C-00 SPACER 10 /
Í
45
8 KHW-M916G-00 COLLAR, JOINT 5 /
Í
46
9 KHY-M926H-00 JOINT, CYL. 5 /
Í
47
10 KKE-M9169-01 SHAFT,STOPPER 5 /
Í
48
11 KKE-M916B-00 GUIDE 5 /
Í
49
12 KLT-M9161-00 BRKT.,CYLINDER 3 /
Í
50
13 KLT-M9162-00 BRKT.,CYLINDER 2 /
Í
51
14 KLT-M9163-00 PLATE,STOPPER 2 2 /
Í
52
15 KLT-M9164-00 BRKT.,STOPPER 3 /
Í
53
16 KLT-M9165-00 PLATE,STOPPER 1 3 /
Í
54
17 91312-04012 BOLT HEX,SOCKET HEAD 5 55
18 92902-04600 WASHER,PLAIN 5 56
19 KLT-M9167-00 BRKT.,STOPPER 2 2 /
Í
57
20
KLT-M9168-00 PLATE,STOPPER 5 /
Í
58
21 KLT-M653F-01 MST.1 CYL. ASSY.,1 1
Fix. frame-Main
B
Í
59
22 KLT-M653G-00 MST.1 CYL. ASSY.,2 1
Mov. frame-Main
B
Í
60
23 KLT-M653H-00 MST.2 CYL. ASSY.,1 1
Fix. frame-Second Main
B
Í
61
24 KLT-M653J-00 MST.2 CYL. ASSY.,2 1
Mov. frame-Second Main
B
Í
62
25 KLT-M653K-01 SUB ST. CYL. ASSY. 1 Fix. frame-Sub B
Í
63
26 KLT-M9160-A0 STOPPER ASSY.,1 1
R-L Fix. frame-Main
/
Í
64
27 KLT-M9160-B0 STOPPER ASSY.,11 1
R-L Mov. frame-Main
/
Í
65
28 KLT-M9160-C0 STOPPER ASSY.,7 1
R-L Fix. frame-Second Main
/
Í
66
29 KLT-M9160-D0 STOPPER ASSY.,13 1
R-L Mov. frame-Second Main
/
Í
67
30 KLT-M9160-E0 STOPPER ASSY.,12 1
R-L Fix. frame-Sub
/
Í
68
31 KLT-M9160-F0 STOPPER ASSY.,4 1
L-R Fix. frame-Main
/
Í
69
32 KLT-M9160-G0 STOPPER ASSY.,14 1
L-R Mov. frame-Main
/
Í
70
33 KLT-M9160-H0 STOPPER ASSY.,10 1
L-R Fix. frame-Second Main
/
Í
71
34 KLT-M9160-J0 STOPPER ASSY.,16 1
L-R Mov. frame-Second Main
/
Í
72
35 KLT-M9160-K0 STOPPER ASSY.,15 1
L-R Fix. frame-Sub
/
Í
73
36 74
37 75
38 76
5
2
Stopper Assy
Conveyor
