SW 703 Option WPC - Numbering System Of Level :
103
Numbering System Of Level
The carrier has a total of 28 trays.
1. A numbering chart with bar code is found at top left
corner inside the unit
2. Numbering of the tray starts from the bottom:
Lowest level = 1
Highest level = 28
SW 703 Option WPC - Removal Of Carrier :
104

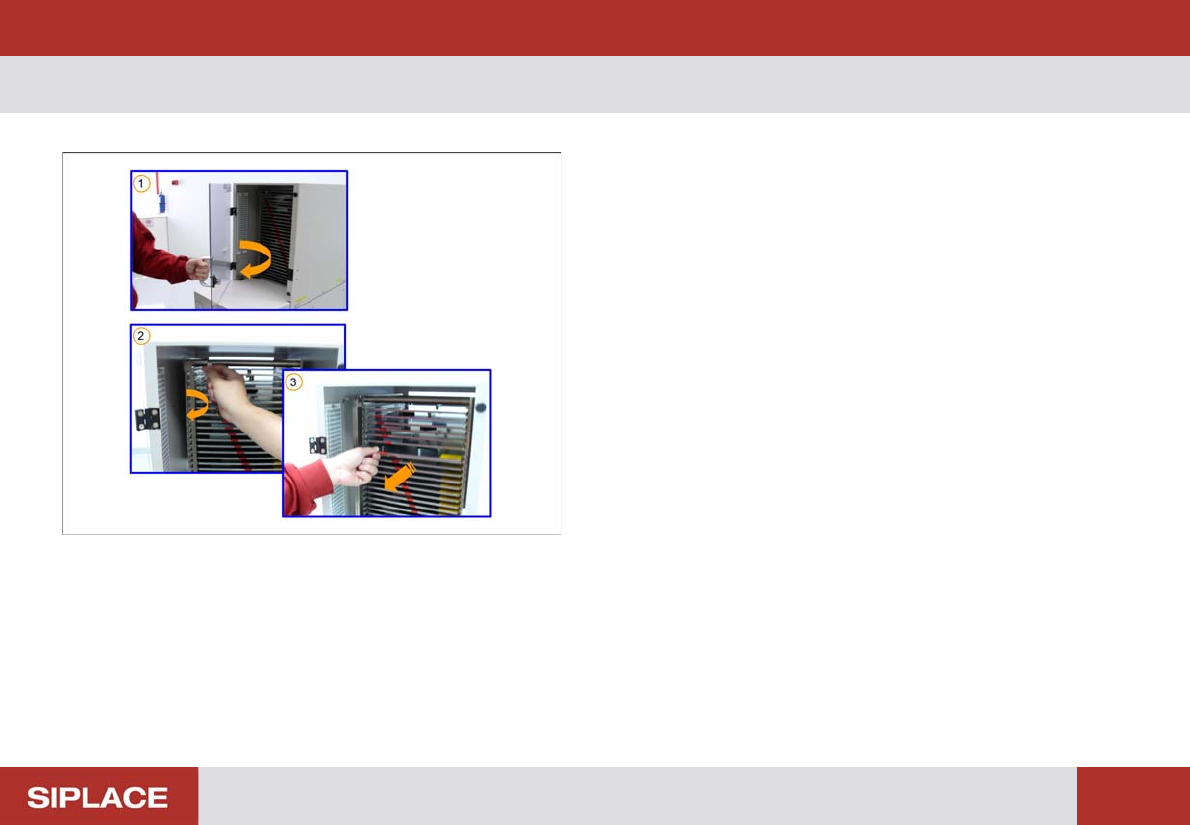

Removal Of Carrier
Removal of the carrier involves 3 steps:
1. Open the transparent acrylic door
2. Turn the latch outward to unlock the carriers
3. Pull out the empty carrier
SW 703 Option WPC - Loading Of Carrier :
105
Loading Of Carrier
Loading the carrier involves three steps:
1. Push in the refilled carrier
2. Turn the latch inward to secure the carriers
3. Close the transparent acrylic door
