SW 703 Option WPC - Correct placement of Carrier in Unit :

106

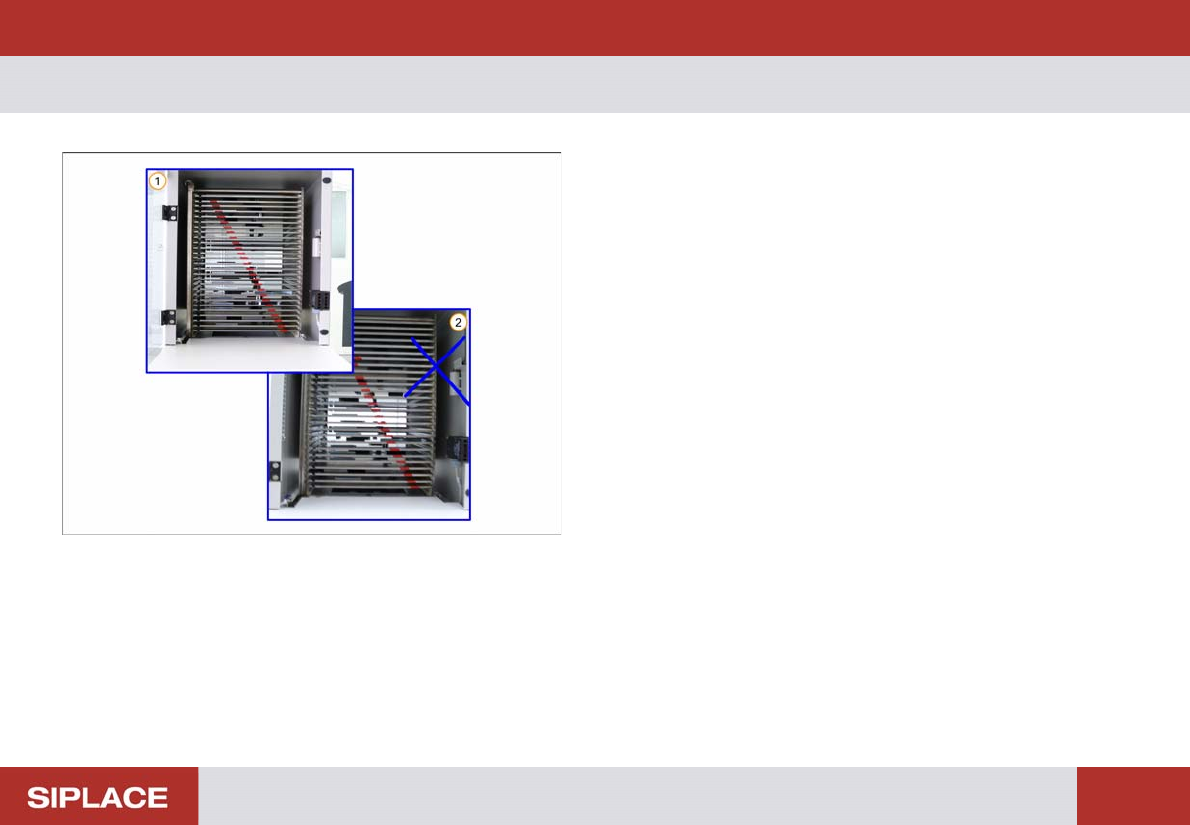

Correct place ment of Carrier i n Unit

1. Carriers with correct placement will show a consistent

straight tape line running diagonally from top left to

right bottom

2. A distorted line indicates that some carriers are at the

wrong level

Note: Wrongly positioned carrier will result in wrong

component being picked up.

SW 703 Option WPC - Loading Position Of The Carrier :

107

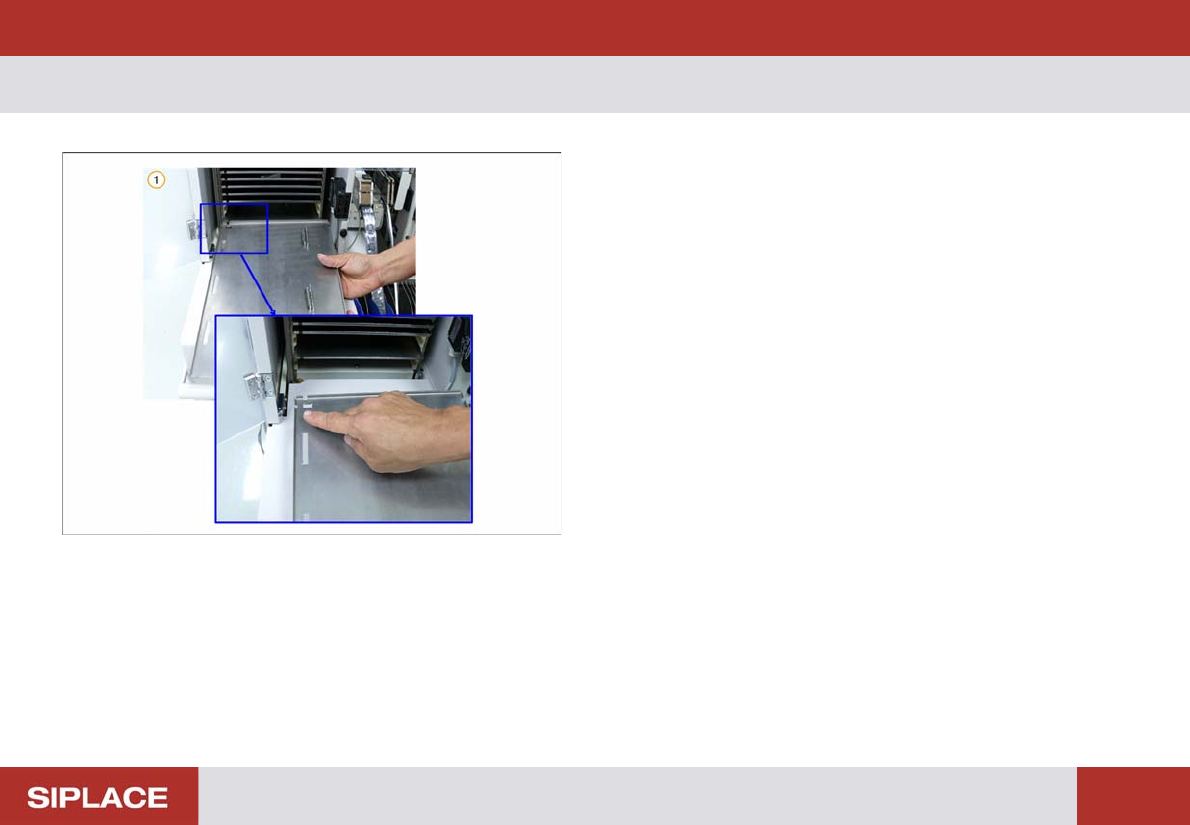

Loading P osition Of The Carrier

1. Check if all carriers are loaded into the WPC with the

correct edge (Cut) facing inward

Note: A crash may occur if the above step is not followed.

SW 703 Option WPC - Magnets Under The Carrier :

108

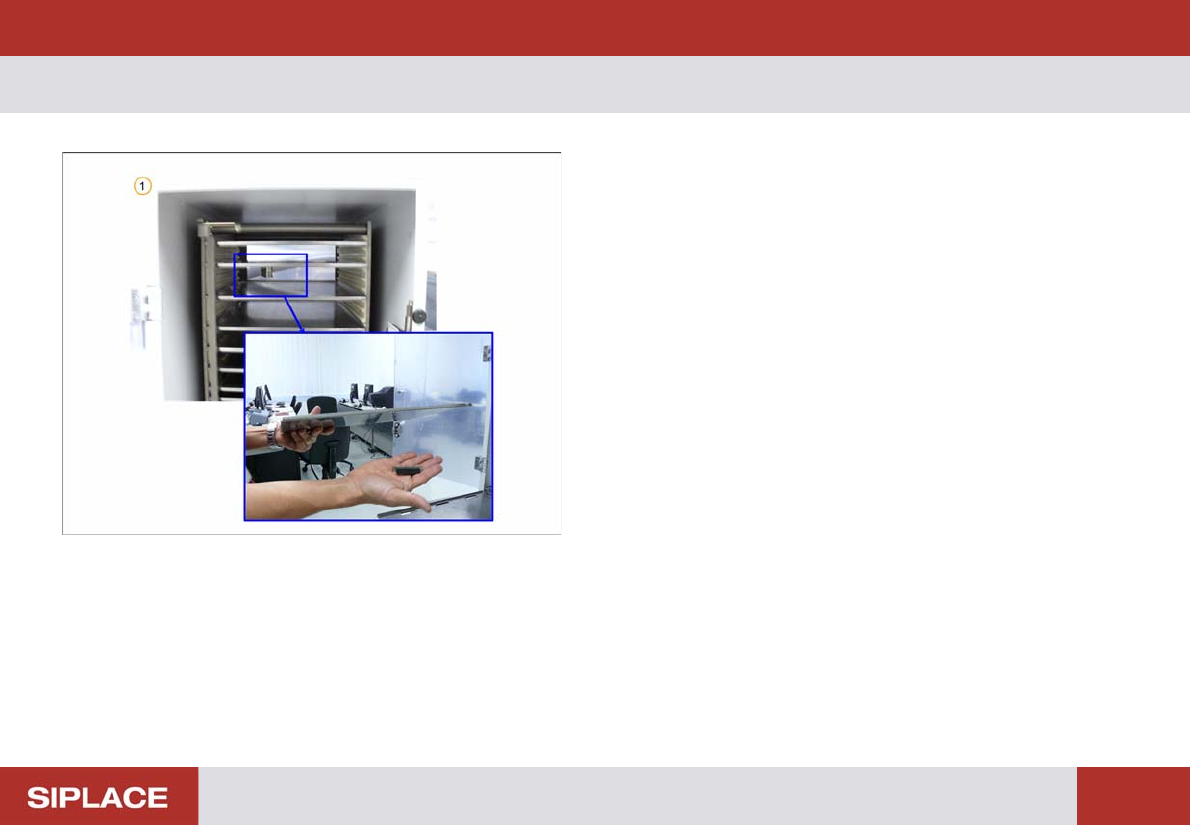

Magnets Under The C arrier

1. Physically check if there are magnets stuck

underneath the carrier above

Note: This can also result in crash of system.
