SW 703 Option WPC - Filling the WPC : 110 Filling the WPC 1. Click on the image of the WPC.
SW 703 Option WPC - Filling the WPC :
109
Filling the WPC
1. Message indicating WPC needs to be filled.
2. Click on ‘Locations’ icon.
SW 703 Option WPC - Filling the WPC :
110
Filling the WPC
1. Click on the image of the WPC.
SW 703 Option WPC - Filling the WPC :
111

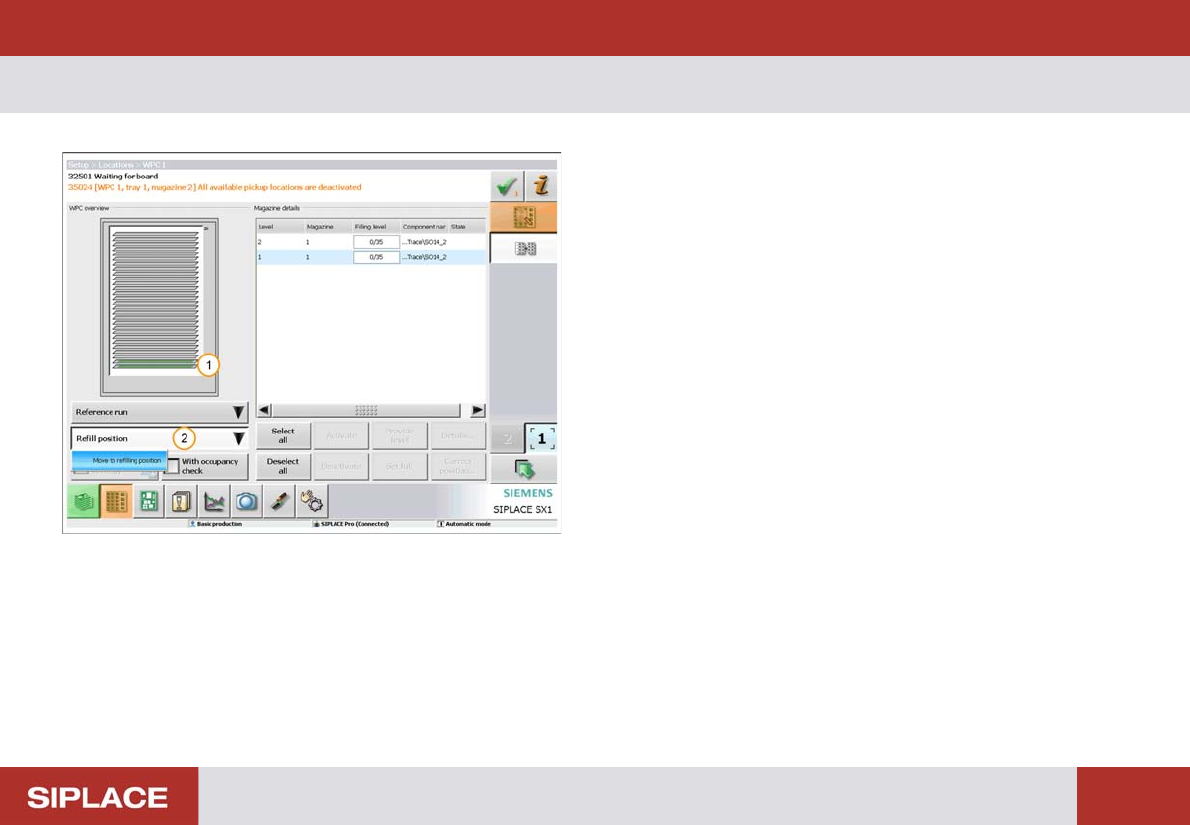

Filling the WPC
1. The green color indicates trays that need to be filled.
2. Click ‘Refill position’ then ‘Move to refilling position’.
The WPC will now move so that all trays can be
accessed.
