SW 703 Option WPC - Filling the WPC :
113

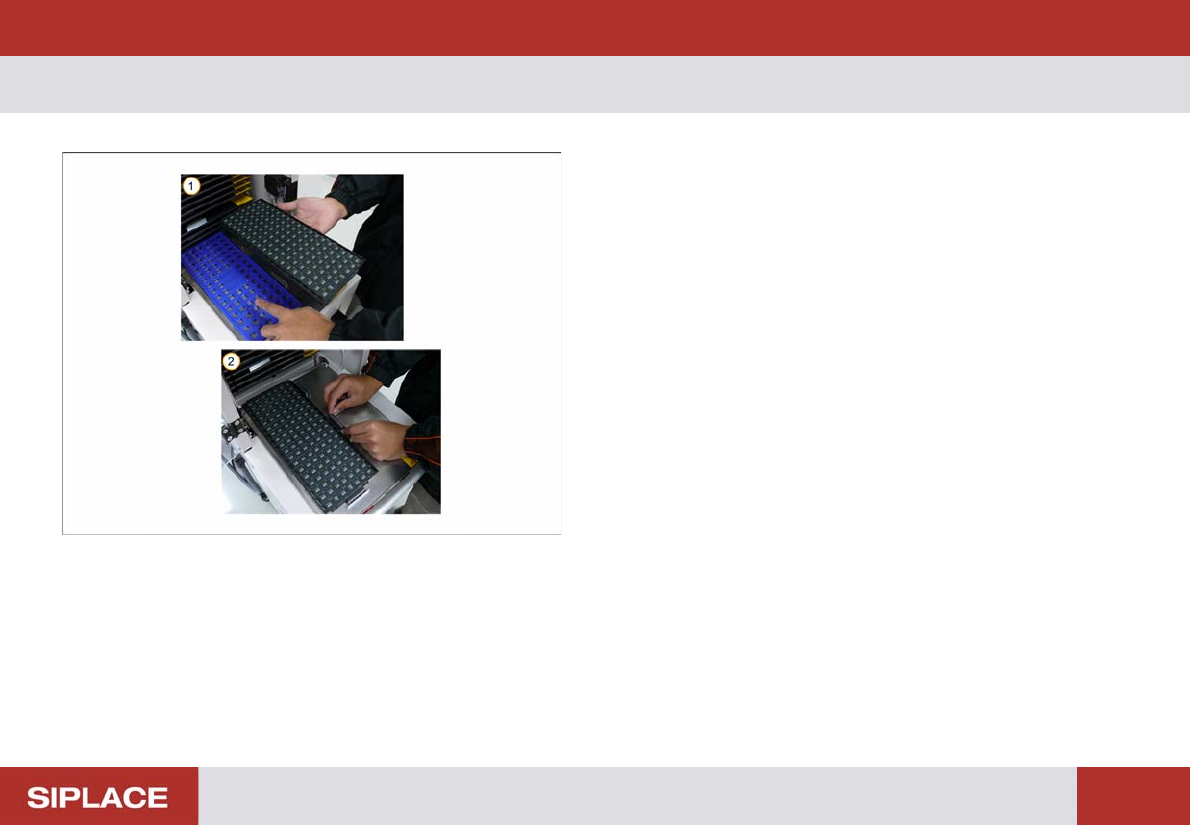

Filling the WPC
1. Remove Empty Tray
2. Refill with new tray of components – secure the tray
in place using magnets.
SW 703 Option WPC - Filling the WPC. :
114

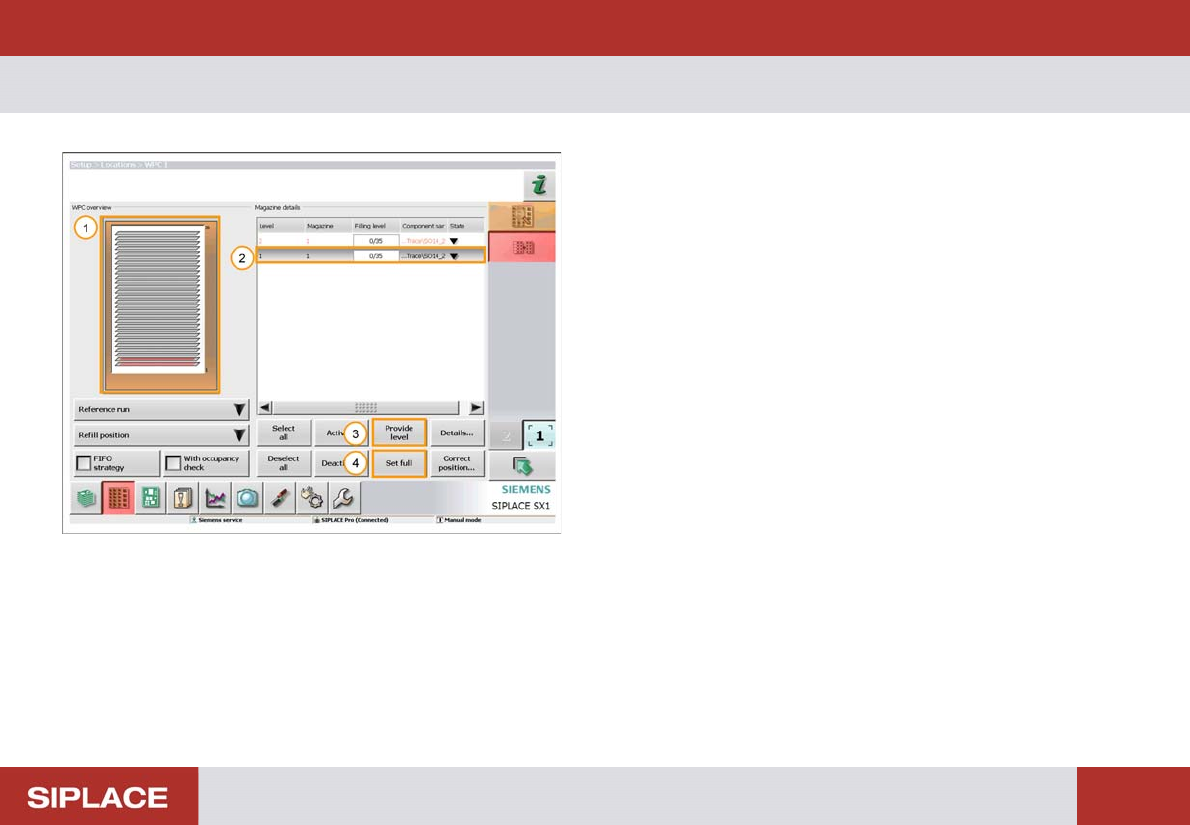

Filling the WPC.
1. The Orange color indicates that the WPC is at the
refill position.
2. Highlight the WPC level to be filled.
3. If the tray is part full then click ‘Provide Level’.
Another window will open where you can enter the
number of components in the tray.
4. If the tray is full then click ‘Set full’.
SW 703 Option WPC - WPC fill completed. :
115
WPC fill completed.
1. Fill Quantity.
2. Level of the tray that has been filled (here the lowest
tray).
3. Select ‘Refill position’ – ‘Stop refilling position’.
The WPC will now move back to the operational position.
4. Click on the return to the Main Menu icon.
