SW 703 Option WPC - WPC fill completed. :
116

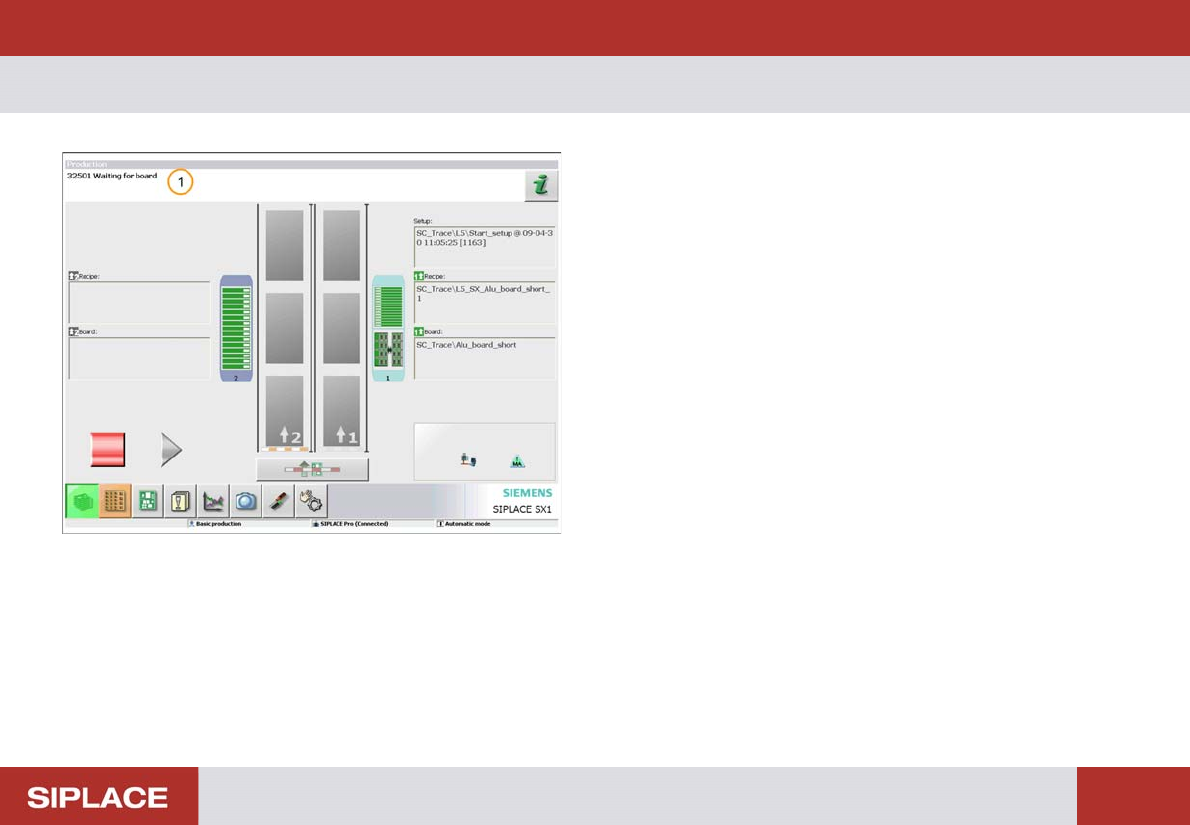

WPC fill completed.
The set up is now completed
1. The status messages shows that the machine is
ready to start production and is waiting for a PCB.
SW 703 Option WPC - WPC verification :
117
WPC verification
The WPC setup verification can be carried out separately
for each location.
1. Check and see if the setup is displayed as online
setup in Setup Center.
2. Scan the control barcode Table verification of the
location to be verified. Check if you at the right track.
3. Scan all configured barcodes of the packaging unit.
Repeat step 4 until all the necessary tracks for the
current job are verified.
NOTICE! Depending on the configuration of
Setup Center further steps can be necessary during
online setup verification. Therefore always watch the
display of the barcode reader.
e.g. scanning of user or reordering a packaging unit.
SW 703 Option WPC - Checks when loading the WPC. :
118
Checks when loading the WPC.
The table to the left lists the key points that you should
check at the WPC when preparing a product to run at the
line.
