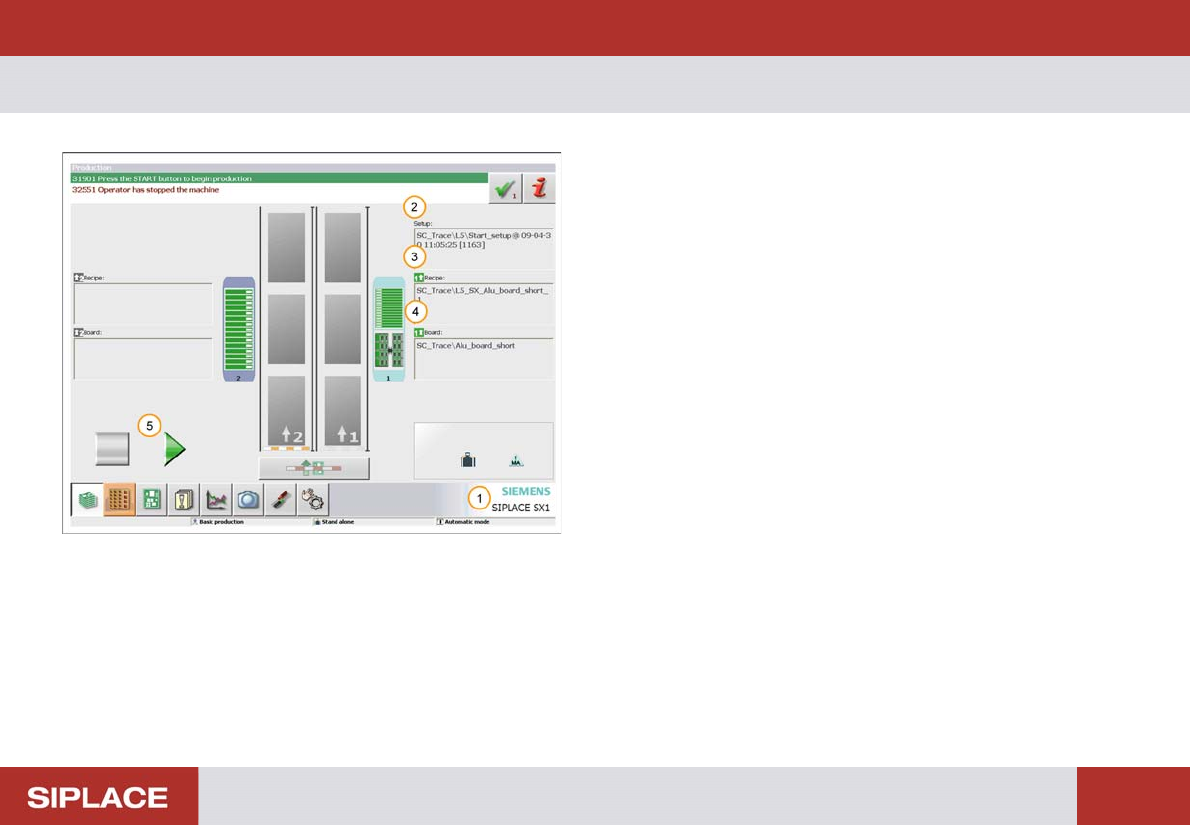

703-GUI Overview - PCB Information :
123
703-GUI O verview
1. Machine Model
2. Setup - Production Line & Resources needed
3. Recipe – the product that has been downloaded and
will run on the line.
4. Board – the PCB for the product that will be produced
on the line.
5. GUI Start/Stop Process Icon / Button – click here to
start the machine.
703-GUI Overview - PCB being Processed - Running Mode :
124
PCB being Processed - Running Mode
1. Process Start/Stop icon / button – here showing red –
press to stop the machine.
2. Main menu icon / button.
3. Locations menu.
4. Set Up Menu.
5. Messages Menu.
6. Machine Performance Menu.
7. Live image of component camera.
8. Settings and options menu.
9. Manual Operations menu.
10. Pie chart indicating progress with placement of the
PCB.
Note: To stop production, click 1
If all things are OK, PCBs will continue to be placed.
703-GUI Overview - Light Towers :
125
Light Towe rs
Use the light towers on the station to check the machine
status.
1. White fault indicator for the right side of the machine.
2. Green Operating status indicators.
3. White fault indicator for the left side of the machine.
T. Transport Direction.
Steady Green Lights = machine is placing components.
Flashing Green Lights = the machine is ready to start but
it is not placing components.
Steady White Light = the machine has stopped due to a
fault on that side of the machine.
Flashing White Light = one or more feeders have run
empty on that side of the machine.
NOTICE! Target:
Steady Green Lights on all machines = The line is
running well!
