Refilling Component Ree ls - Refill a track : 127 Refilling Component Reels Continuously check the comp onent re els to see if they are running out – if there is around 1m of tape remaining then it is time to splice a ne…

703-GUI Overview - Light Towers :

126

Refilling Component Reels - Refill a track :

127

Refilling Component Reels

Continuously check the component reels to see if they

are running out – if there is around 1m of tape remaining

then it is time to splice a new reel!

Obtain the new reel of components from the storage

location.

1. Scan the control barcode Refill of the location to be

verified.

2. Scan the Track barcode of the packaging unit be

refilled.

3. Scan all configured barcodes of the packaging unit.

NOTICE! Depending on the configuration of

Setup Center further steps can be necessary during refill.

Therefore always watch the display of the barcode

reader.

e.g. scanning of user or reordering a packaging unit.

Refilling Component Reels - Splicing - Required Tools and Materials :

128

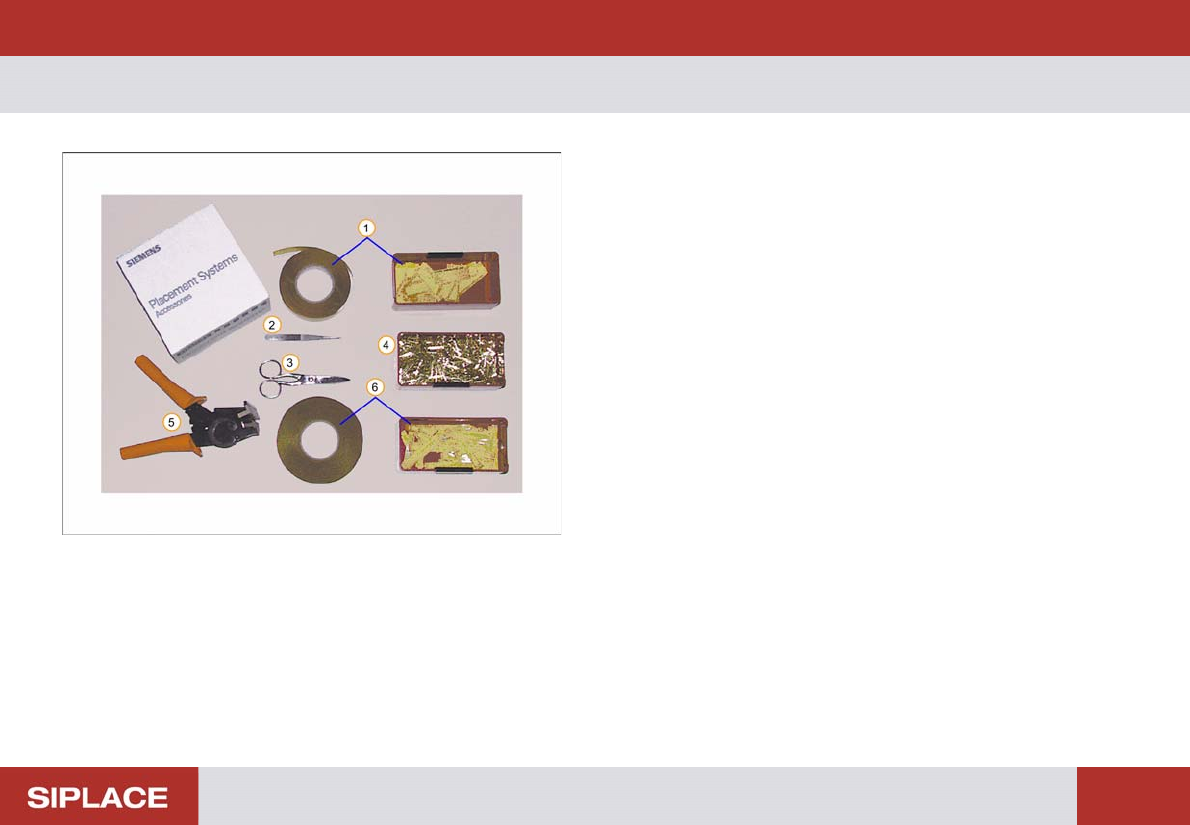

Splicing - Required Tools and Materials

These tools and materials are required for tape splicing.

1. Adhesive tape (small)

2. Tweezers

3. Scissors

4. Splicing rivets

5. Splicing tool

6. Adhesive tape (large)
