Refilling Component Reels - Splicing the carrier tape :
132

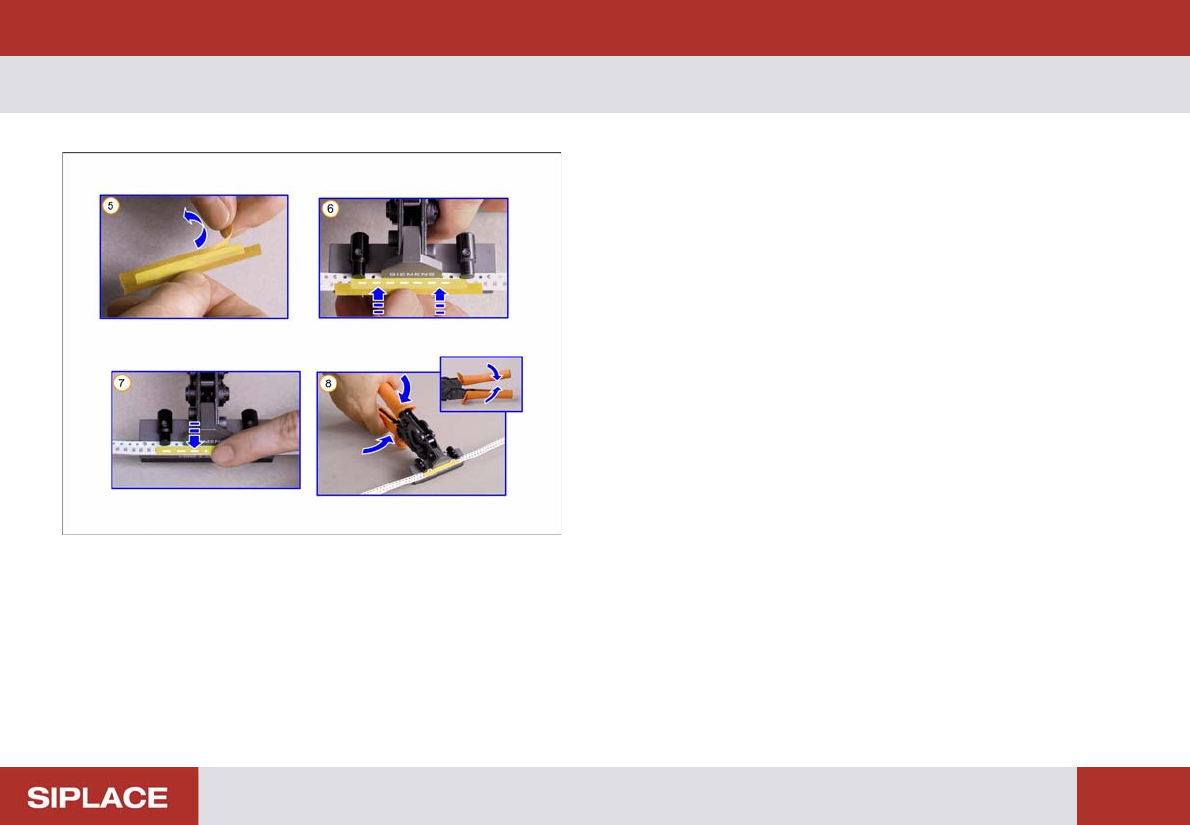

Splicing the carrier tape
5. Remove half of the adhesive protector. Do not touch
the sticky surface!
6. Lay the adhesive strip on top of the carrier tape and
press firmly
7. Remove carefully the second half of the protector strip
and press firmly on the adhesive strip
8. To splice the tape, squeeze the splicing tool until it
releases
Refilling Component Reels - Splicing of wide carrier tapes :
133

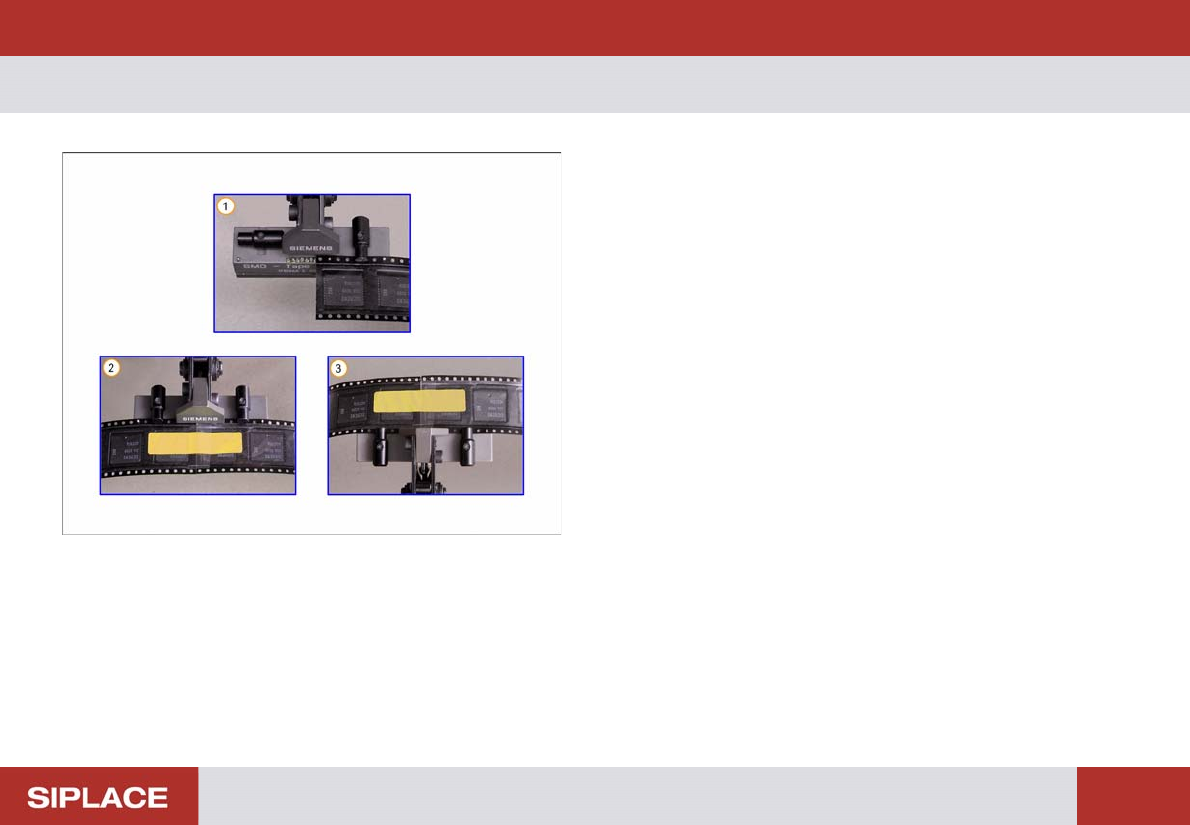

Splicing of wide carrier tapes
Handle wide tapes the same way.
1. Place the end of the carrier tape over half of the rivet
and close the lock
2. First splice one side as previously described. Use a
wide adhesive strip!
3. Next lay a new rivet in the tape splicing tool and splice
the other side
Refilling Component Reels - Checking the splice :
134

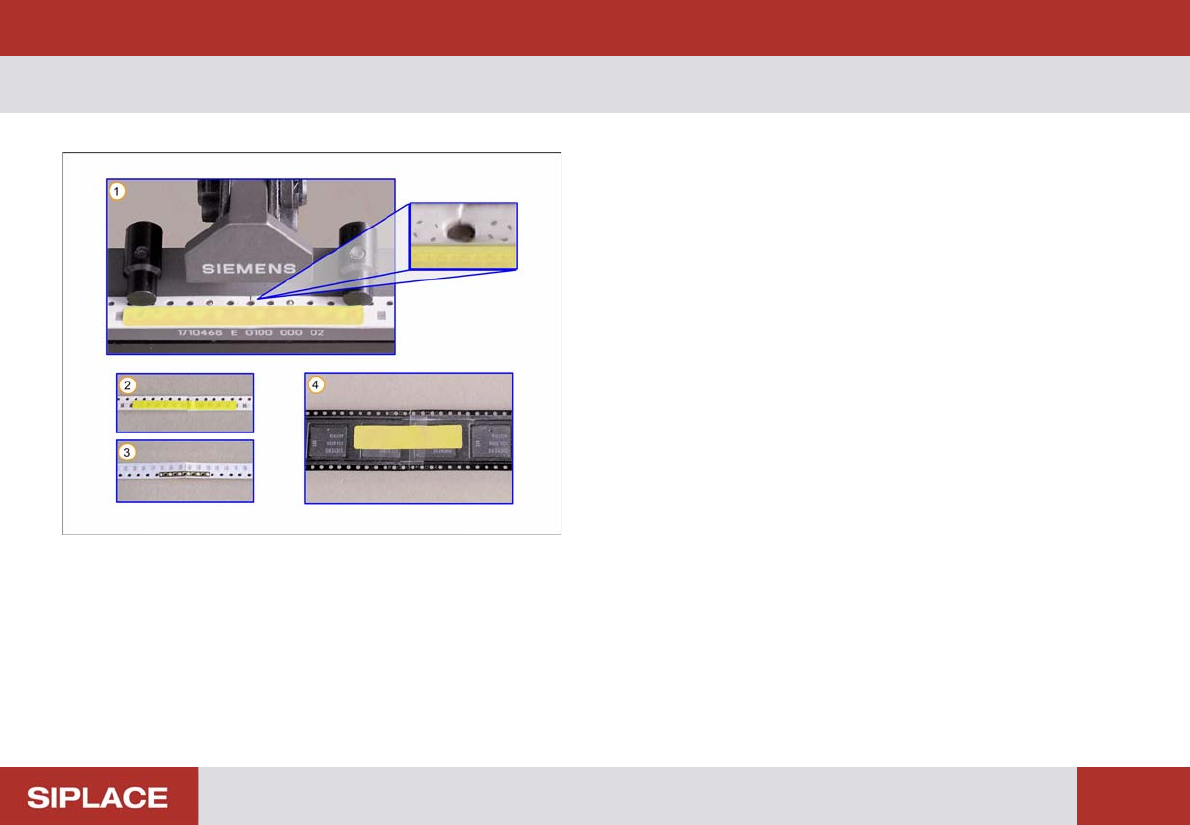

Checking the splice
Identifying correct splicing.
1. If the tape is spliced correctly, the prongs of the rivet
will be visible
2. Top side of a feeder tape (8mm)
3. Bottom side of a feeder tape (8mm)
4. Top side of a feeder tape (24mm)
