Refilling Component Reels - Splicing of wide carrier tapes :
133
Splicing of wide carrier tapes
Handle wide tapes the same way.
1. Place the end of the carrier tape over half of the rivet
and close the lock
2. First splice one side as previously described. Use a
wide adhesive strip!
3. Next lay a new rivet in the tape splicing tool and splice
the other side
Refilling Component Reels - Checking the splice :
134
Checking the splice
Identifying correct splicing.
1. If the tape is spliced correctly, the prongs of the rivet
will be visible
2. Top side of a feeder tape (8mm)
3. Bottom side of a feeder tape (8mm)
4. Top side of a feeder tape (24mm)
Refilling Component Reels - After Splicing :
135

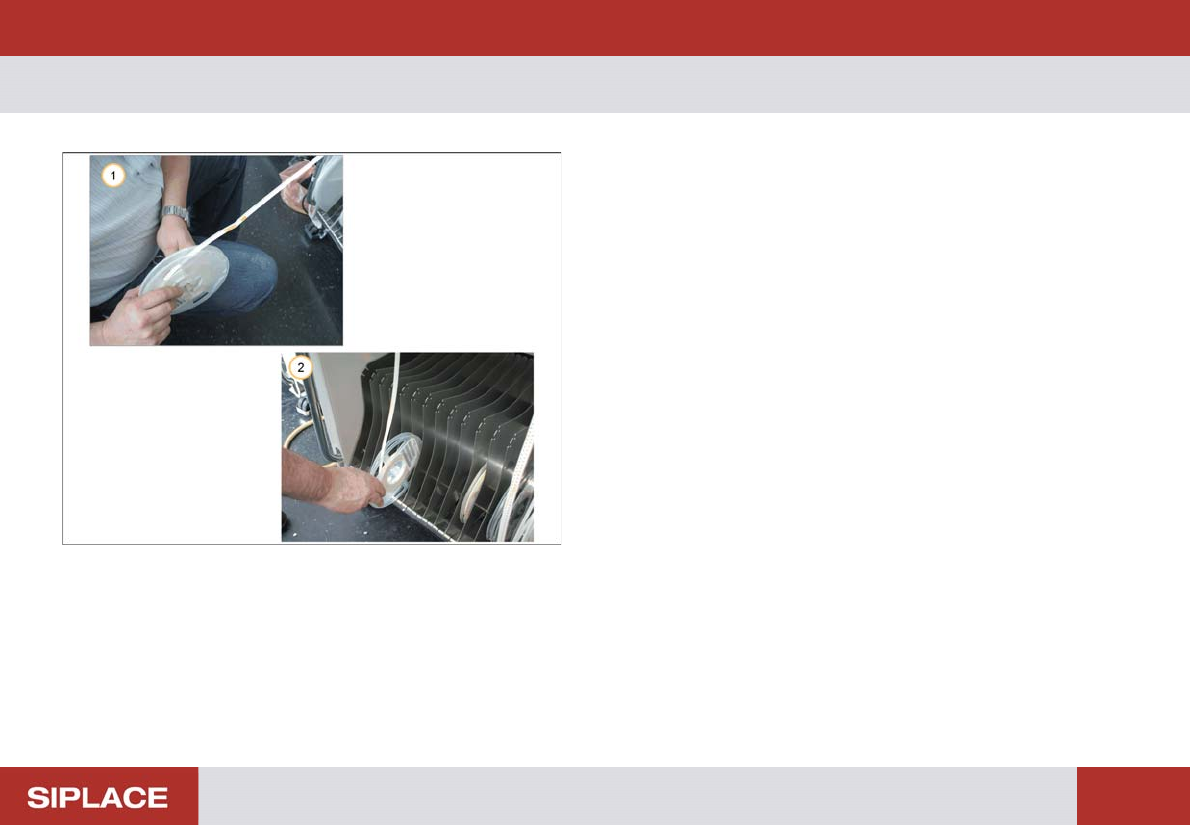

After Splicing
1. Wrap the excess tape onto the new reel.
2. Place the reel into the table reel holder bin.
