Option 703 MTC Refill - Refill a MTC tray :
149
Refill a MTC tr ay
1. Scan the control barcode Refill of the location to be
verified.
2. Scan the Track barcode of the MTC tray be refilled.
You find the track barcode inside the MTC door.
3. Scan all configured barcodes of the packaging unit.
NOTICE! Depending on the configuration of
Setup Center further steps can be necessary during refill.
Therefore always watch the display of the barcode
reader.
e.g. scanning of user or reordering a packaging unit.
Option 703 MTC Refill - MTC Refill Completed :
150

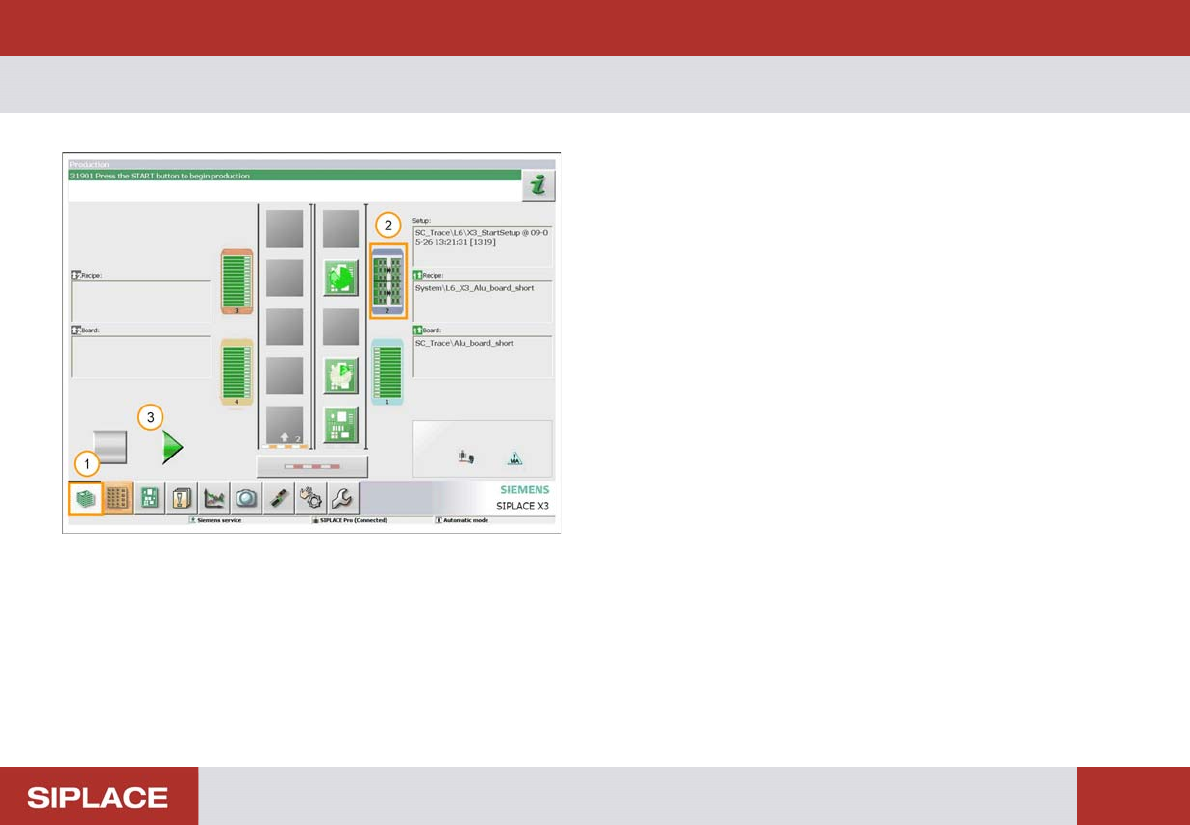

MTC Refill Completed
1. Click on the bottom left icon to return to the main
menu.
2. The indicators to the table should now go green,
showing that the MTC is refilled.
3. Click on the Processing Start / Stop icon or press the
machine start key to start production again.
Option 703 WPC refill - Refilling the WPC :
151

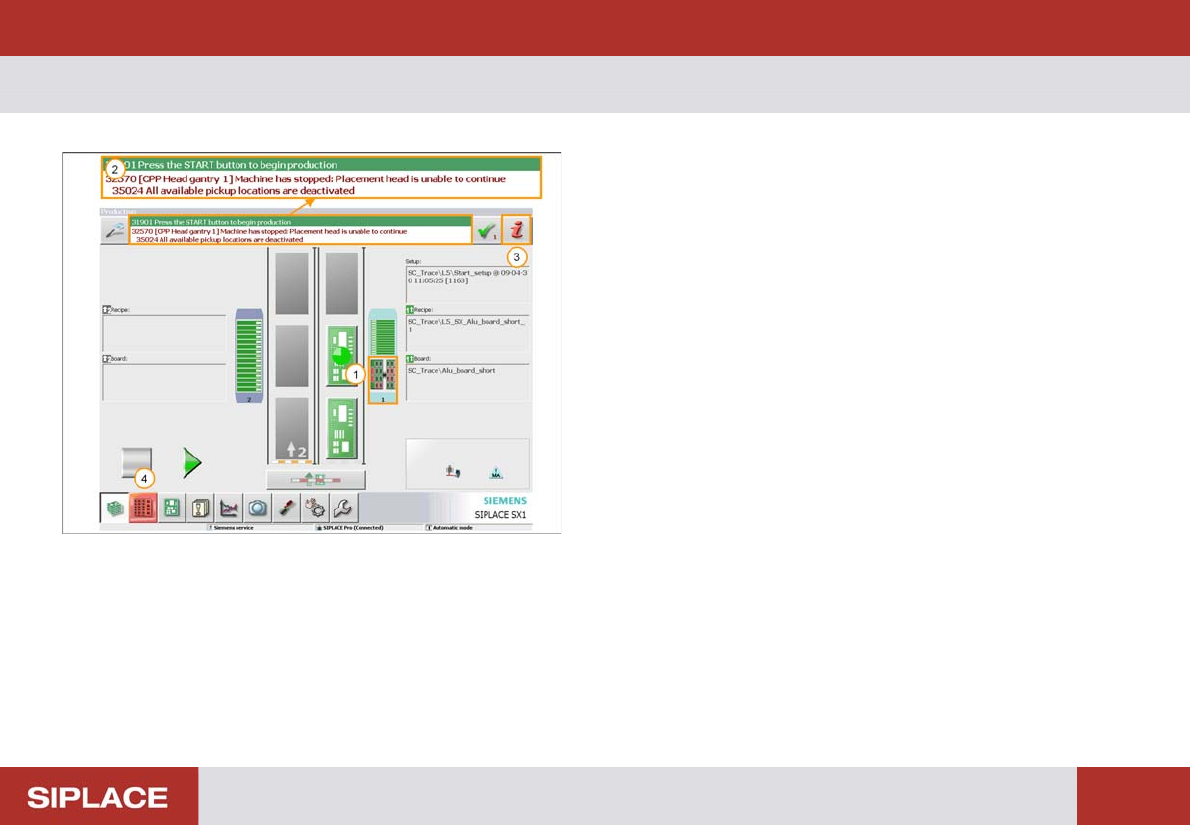

Option 703 WP C refill
1. Empty track at WPC - indicators on the table go red.
2. Error message.
3. Error information icon (click for more details).
4. Locations menu icon – click here to enter the WPC
menu directly.
