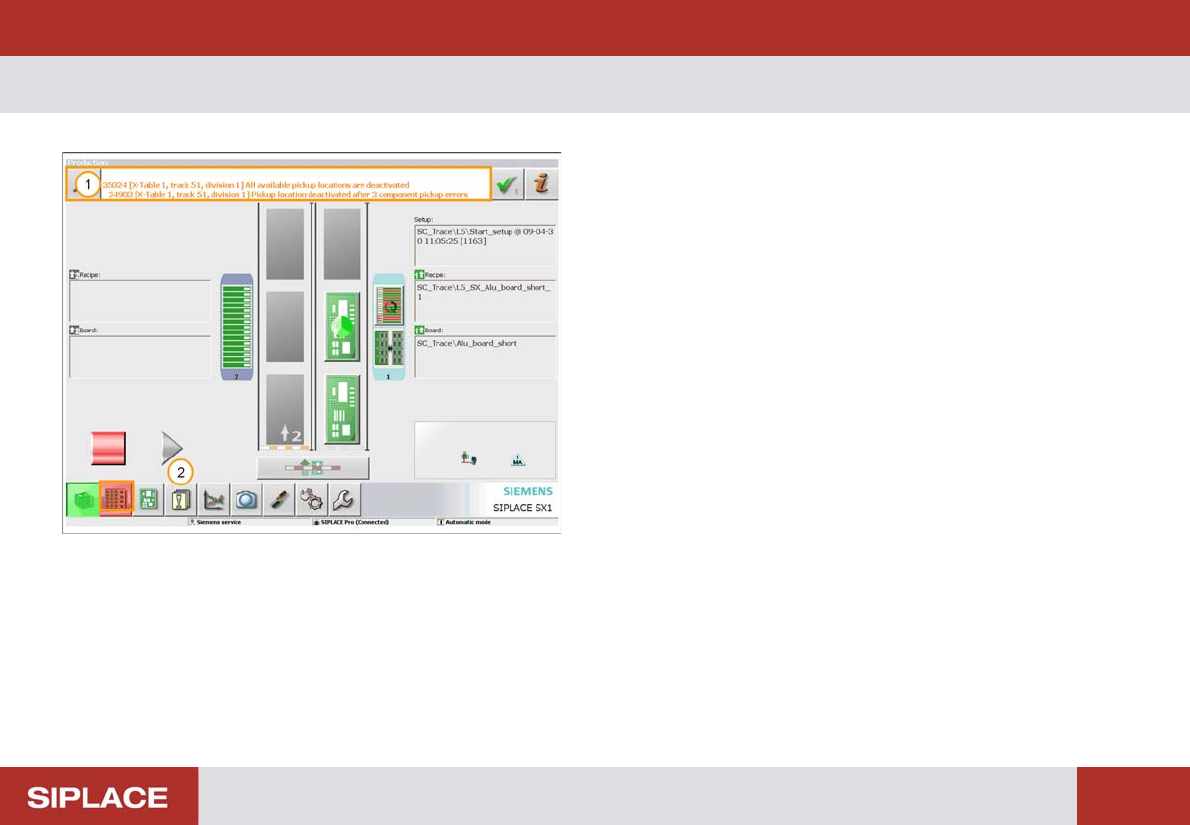

703-Handling Messages - GUI Messages :
159
703-Handli ng Messages
1. Message Display.
2. Click on the Messages Icon to see the list of errors.

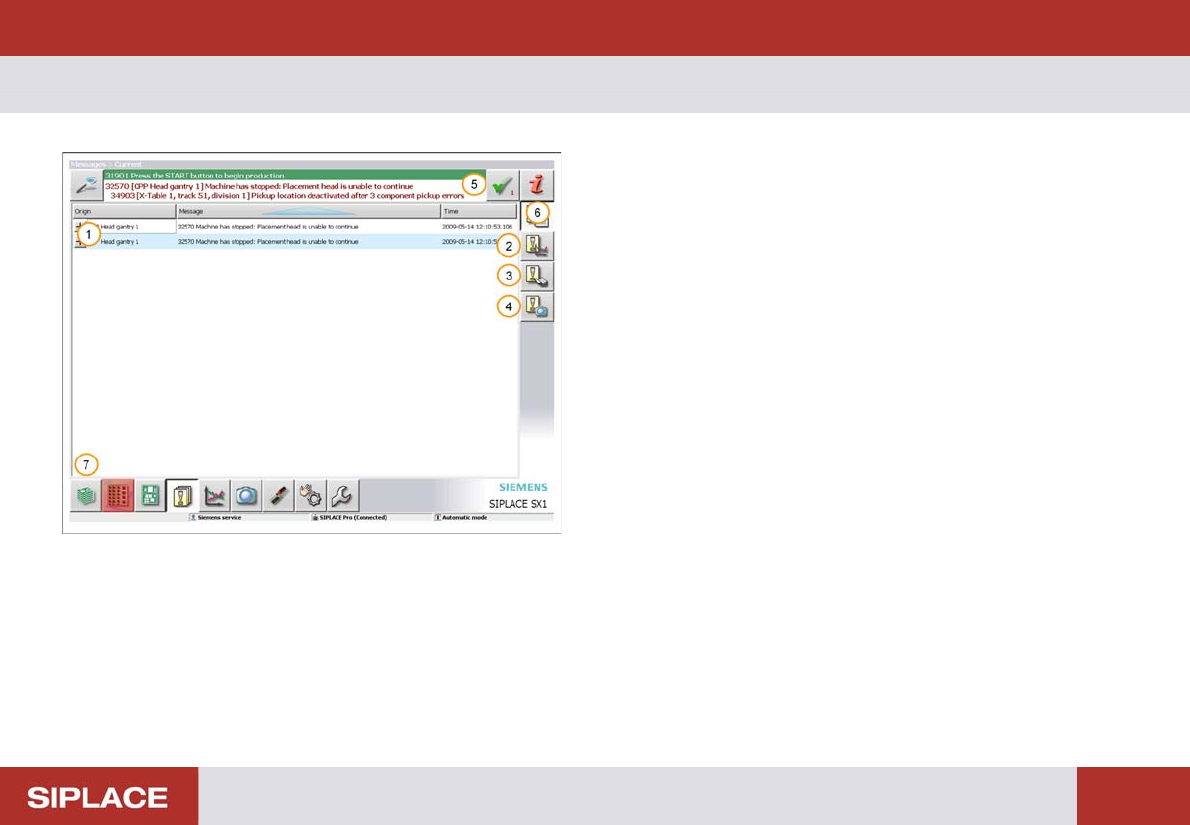

703-Handling Messages - Messages - Current :
160
Messages - Current
Error Menu:
1. List of current messages.
2. Statistics screen.
3. Message history screen.
4. Vision dump files screen.
5. To clear the current message clear the green tick.
6. To view more detailed message information –
highlight the message and click the red i icon
7. Return to main menu.

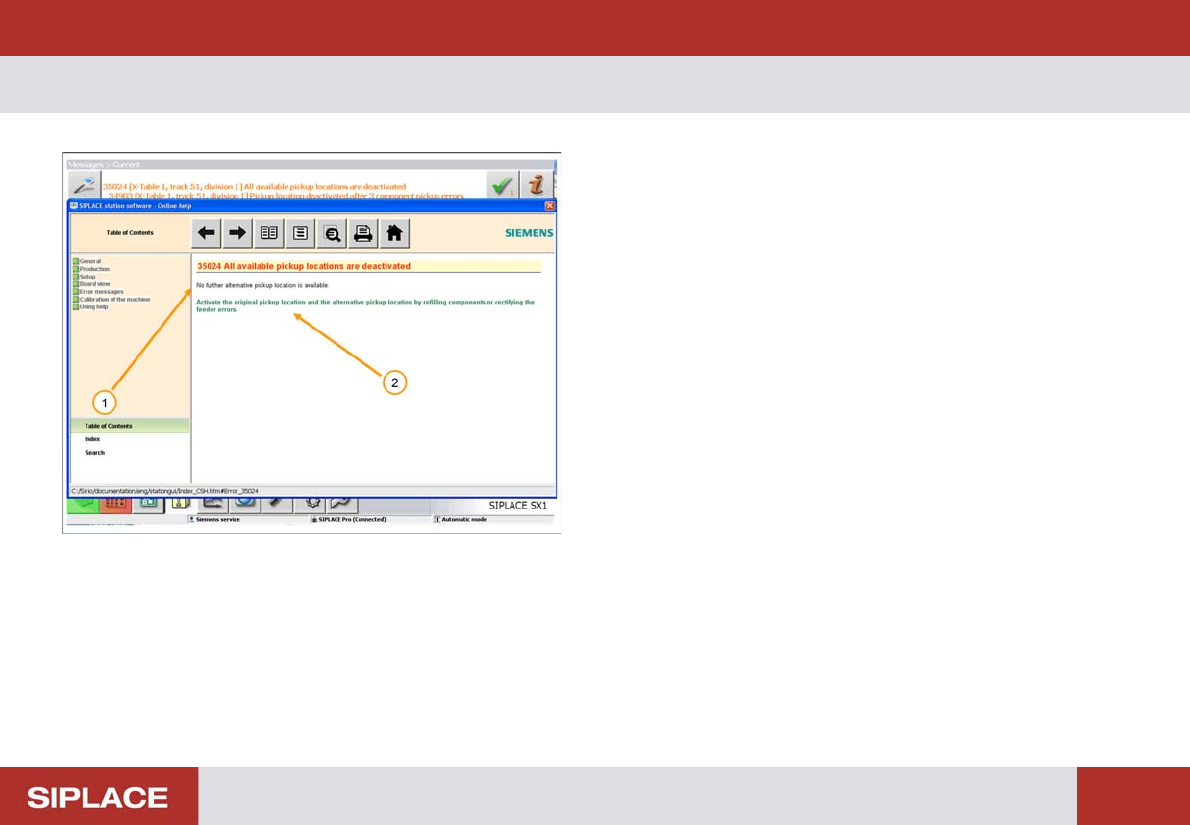

703-Handling Messages - Message Detail :
161
Message Detail
1. Possible causes are listed.
2. At the same time, possible solutions are
recommended in bold green letters.
