Weekly PM (70x) - Return the nozzles to the nozzle changer :
172
Return the noz zles to the nozz le changer
All the nozzles for all the heads of each machine should
be returned to the nozzle changers.
1. Select the ‘Locations’ icon.
2. Select the ‘Head’ icon.
Weekly PM (70x) - Return the nozzles to the nozzle changer :
173

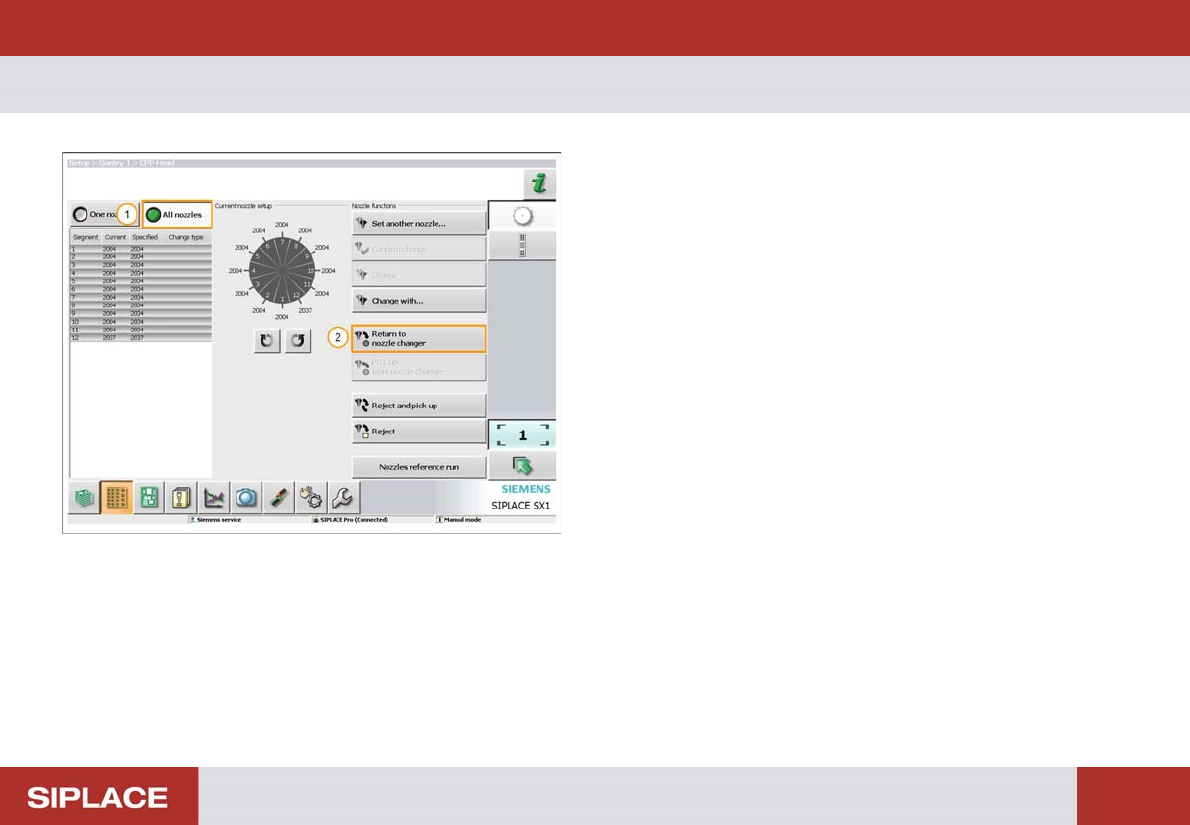

Return the noz zles to the nozz le changer
1. Select ‘All nozzles’.
2. Select ‘Return to nozzle changer’.
Weekly PM (70x) - Move the gantry to a safe position. :
174

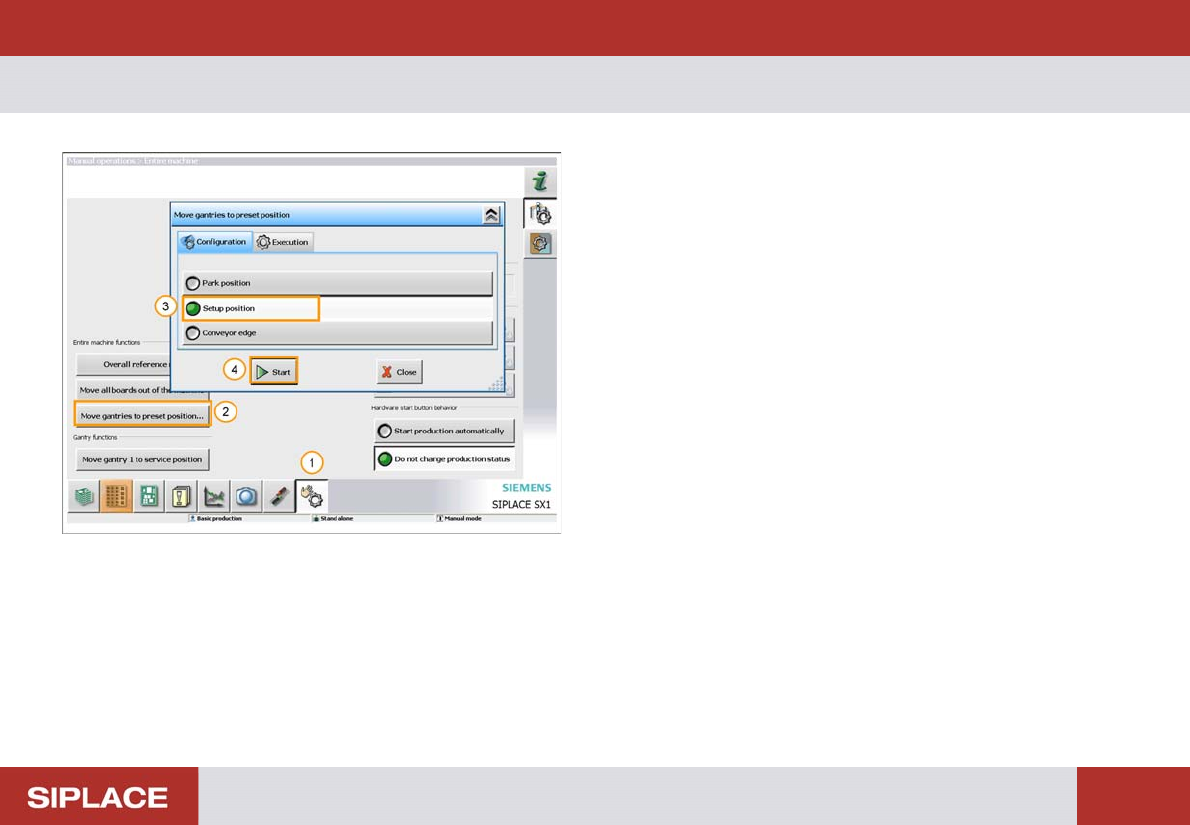

Move the gantr y to a safe positi on.
1. Select ‘Manual Operations’ window.
2. Click ‘Move gantries to preset position…’
3. Click ‘Setup position’.
4. Click ‘Start’.
The gantry will now move to a safe position to allow you
to remove the feeder table.
