Weekly PM (70x) - Cle an inside the machine : 180 Clean ins ide the ma chine 1. Remove the PCB support pin s. 2. Vacuum around th e tape cutter, nozzle changer a nd PCB conveyor s. 3. Empty t he componen t reject boxes .…
Weekly PM (70x) - Clean the Feeder Tables :
179
Clean the Feeder Tables
1. Slide the feeders back on the table in a step format.
2. Turn the component pusher clockwise and remove
the waste components.
3. Vacuum around the feeders and the table to ensure
that all loose components are removed.
4. Slide the feeders back into position at the front of the
table and cut the waste tape back to the feeder.
Weekly PM (70x) - Clean inside the machine :
180
Clean inside the machine
1. Remove the PCB support pins.
2. Vacuum around the tape cutter, nozzle changer and
PCB conveyors.
3. Empty the component reject boxes.
4. Clean around the conveyor and lifting table area
using a dry lint free cloth.
5. Replace the PCB support pins in the correct location.
Weekly PM (70x) - Clean inside the machine :
181

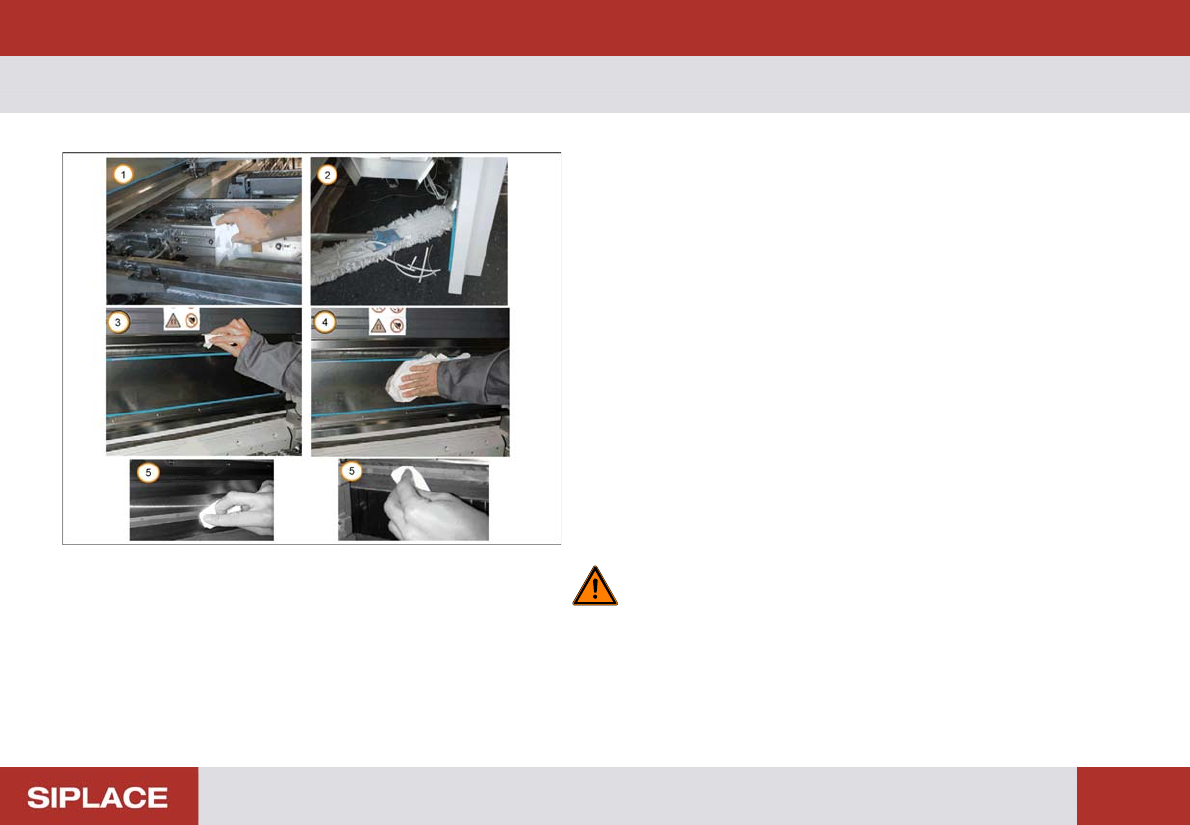

Clean inside the machine
Have everything ready before you start maintenance!
1. Use lint free cloths to clean the metal surfaces of the
machine.
2. Sweep around the feeder tables to remove any waste
tape that is on the floor.
3. Clean the X & Y axis linear guides using a SIPLACE
cleaning cloth.
4. Clean the X&Y axis magnetic surfaces using a lint
free cloth.
5. Clean the X&Y axis linear scales using a lint free cloth
moistened with Ethanol Alcohol.
Make sure you clean the scales after the guides and the
magnets.
WARNING! Do not apply too much pressure or
use any aggressive cleaning solution when cleaning the
scales.
