Weekly PM (70x) - Clean inside the machine :
180
Clean inside the machine
1. Remove the PCB support pins.
2. Vacuum around the tape cutter, nozzle changer and
PCB conveyors.
3. Empty the component reject boxes.
4. Clean around the conveyor and lifting table area
using a dry lint free cloth.
5. Replace the PCB support pins in the correct location.
Weekly PM (70x) - Clean inside the machine :
181
Clean inside the machine
Have everything ready before you start maintenance!
1. Use lint free cloths to clean the metal surfaces of the
machine.
2. Sweep around the feeder tables to remove any waste
tape that is on the floor.
3. Clean the X & Y axis linear guides using a SIPLACE
cleaning cloth.
4. Clean the X&Y axis magnetic surfaces using a lint
free cloth.
5. Clean the X&Y axis linear scales using a lint free cloth
moistened with Ethanol Alcohol.
Make sure you clean the scales after the guides and the
magnets.
WARNING! Do not apply too much pressure or
use any aggressive cleaning solution when cleaning the
scales.
Weekly PM (70x) - Cleaning Ceramic Nozzles - Overview :
182

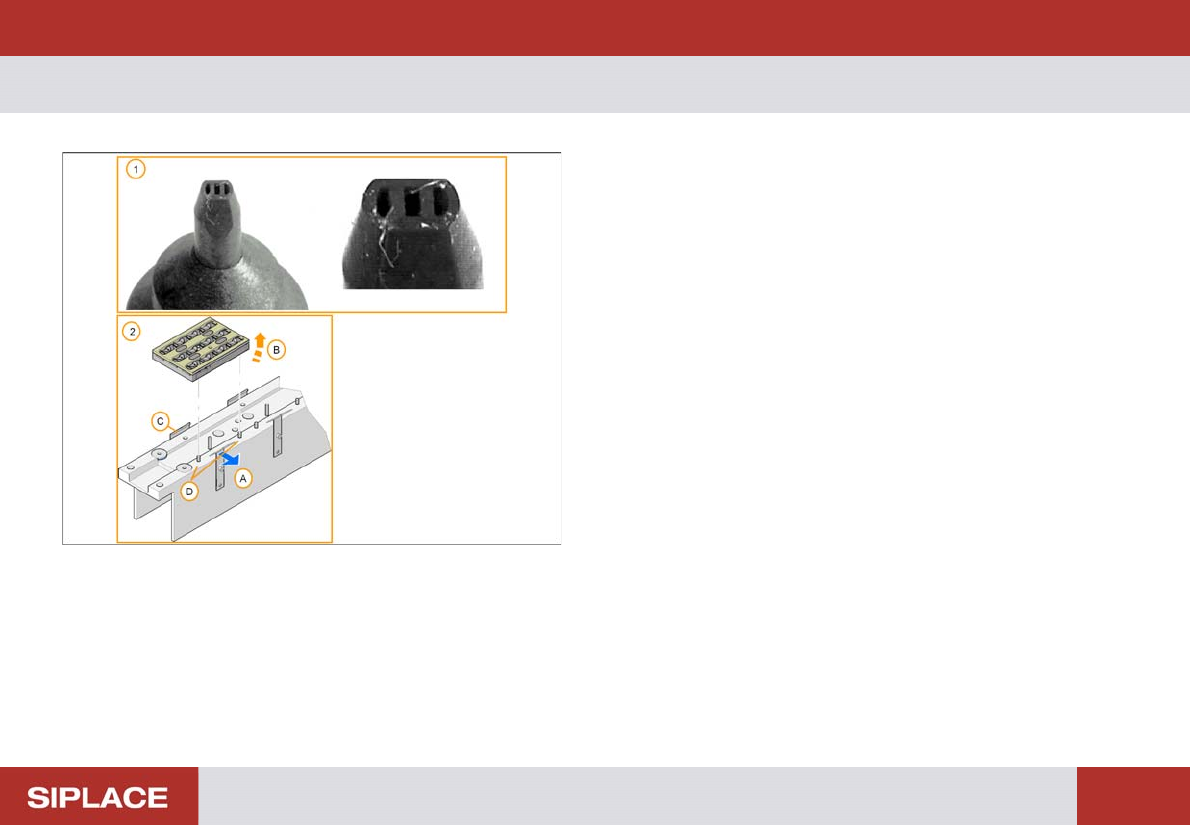

Cleaning Ceramic Nozzles - Overview
All Ceramic nozzles should be removed and cleaned. All
plastic nozzles should be checked for damage / wear and
replaced if needed.
1. Ceramic nozzles before cleaning.
2. Nozzle Magazine Exchange.
(A) To remove - push spring plate forward to release the
magazine.
(B) Tilt the magazine back and lift up.
(C) To replace – Slot back of magazine into rear clip.
(D) Align holes in magazine with pins.
