Weekly PM (70x) - Nozzle Cleaning Tools :

183

Nozzle Cle aning Tools

The nozzle cleaning tool set allows you to easily transfer

nozzles from the changer magazine into the cleaning

appliance and directly into the cleaning bath filled with

distilled water.

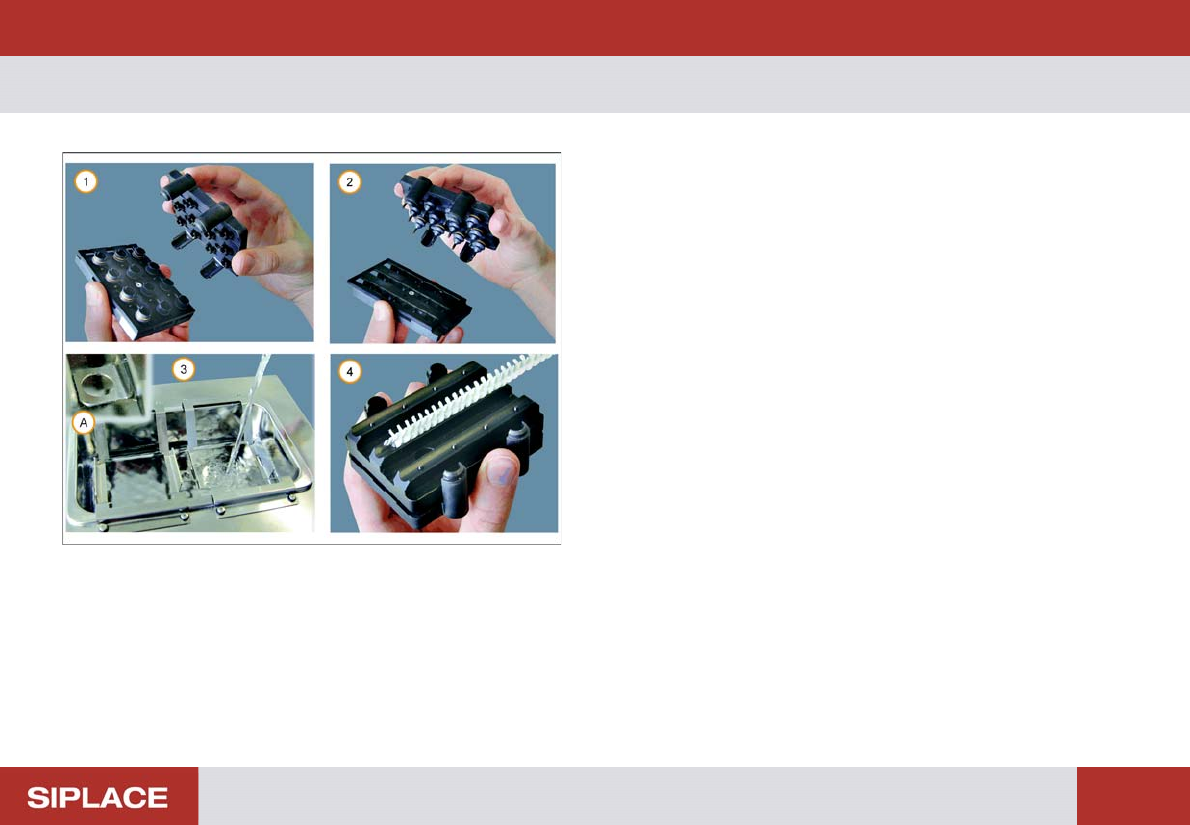

1. Cleaning appliance is fitted to the nozzles in the

magazine.

2. All nozzles are removed from the magazine in 1

action.

3. The ultrasonic bath is filled with distilled water to the

level (A).

4. After cleaning in the ultrasonic bath the groove plate

is fitted to the cleaning appliance and the nozzle

brush is used to remove any remaining dirt.

Weekly PM (70x) - Check the Nozzles :

184

Check the Nozzles

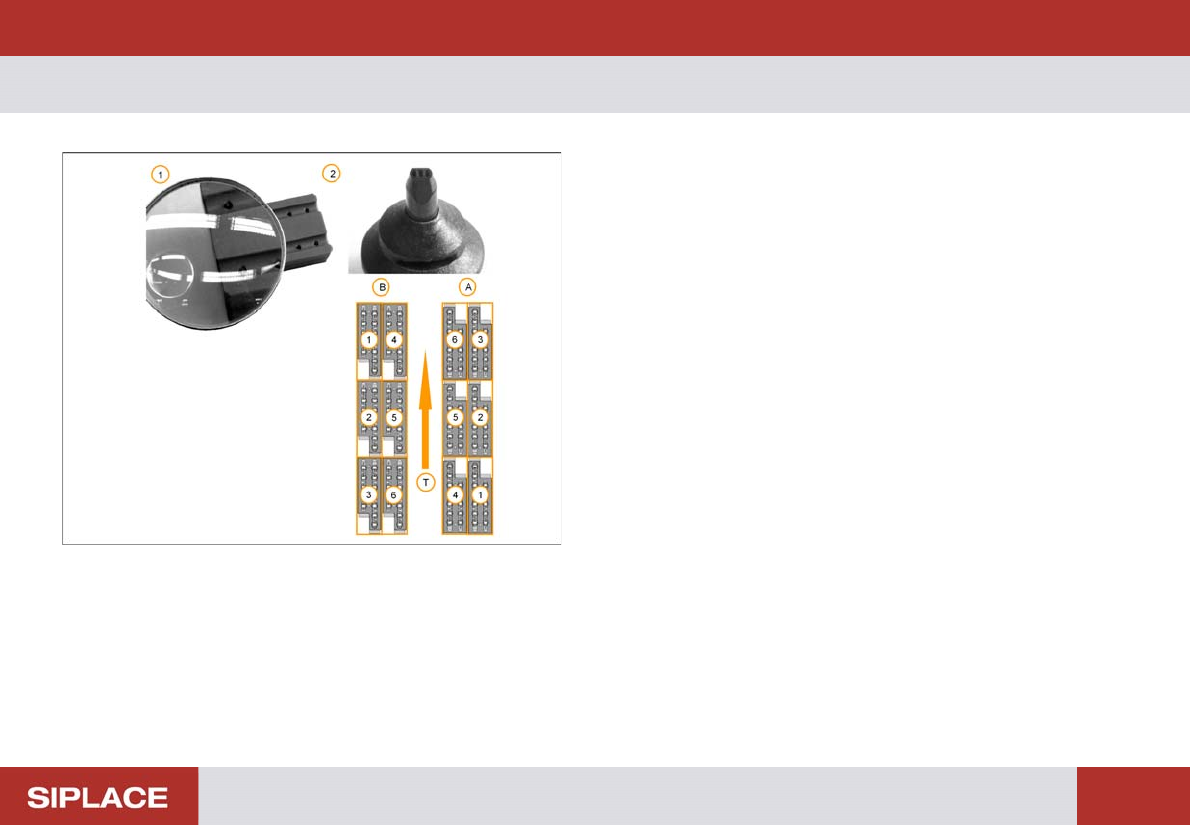

1. Use a magnifying glass to examine the nozzles – re-

clean if required or replace if defective.

2. Ceramic nozzle after cleaning.

3. Refit the nozzle magazines to the changers.

Ensure the magazines are fitted to the correct location.

(A) Magazine numbering locations 1 & 2

(B) Magazine numbering locations 3 & 4.

(T) Transport Direction

Weekly PM (70x) - Cleaning of the C&P 20 heads :

185

Cleaning of the C &P 20 heads

1. The rubber disk on the filter must not be damaged. If

there any damaged filter disks then contact your

supervisor as they should be replaced.
