Weekly PM (70x) - Cleaning of the C&P 20 heads :
185

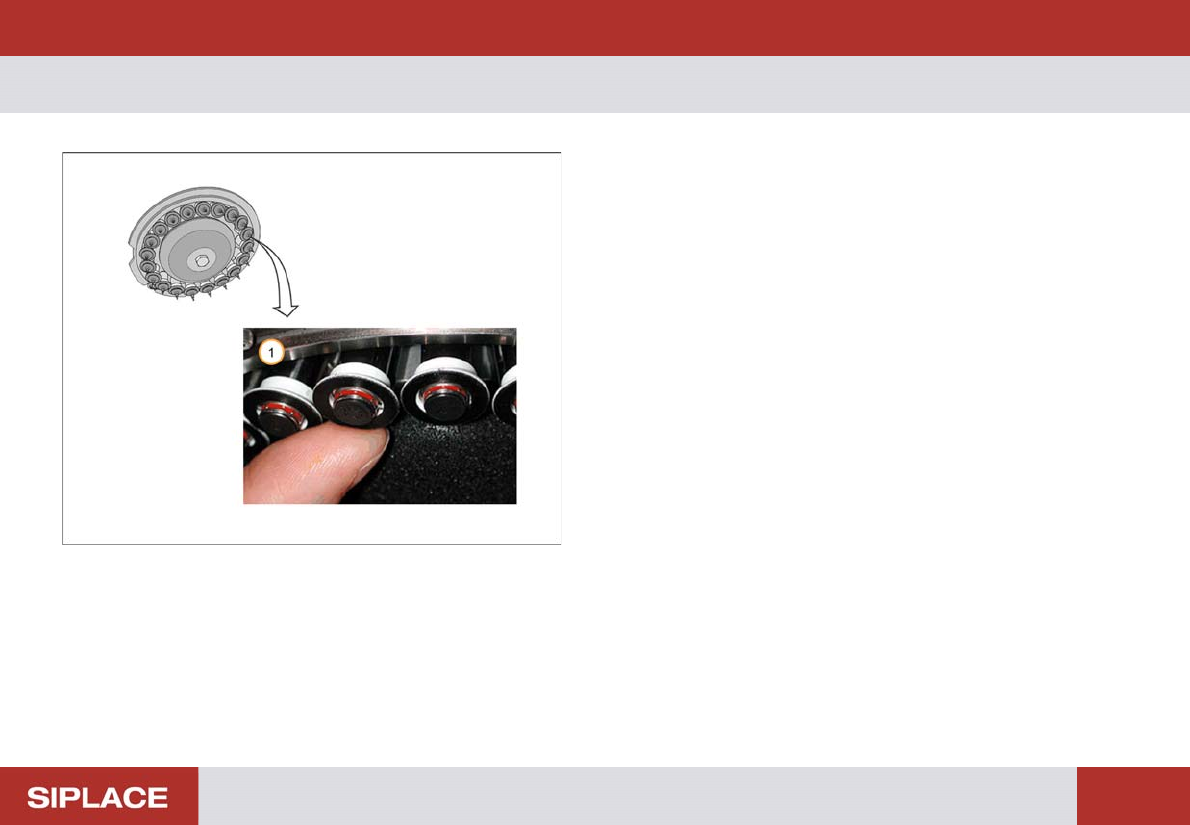

Cleaning of the C &P 20 heads
1. The rubber disk on the filter must not be damaged. If
there any damaged filter disks then contact your
supervisor as they should be replaced.
Weekly PM (70x) - Clean the Stationary Camera Lens :
186

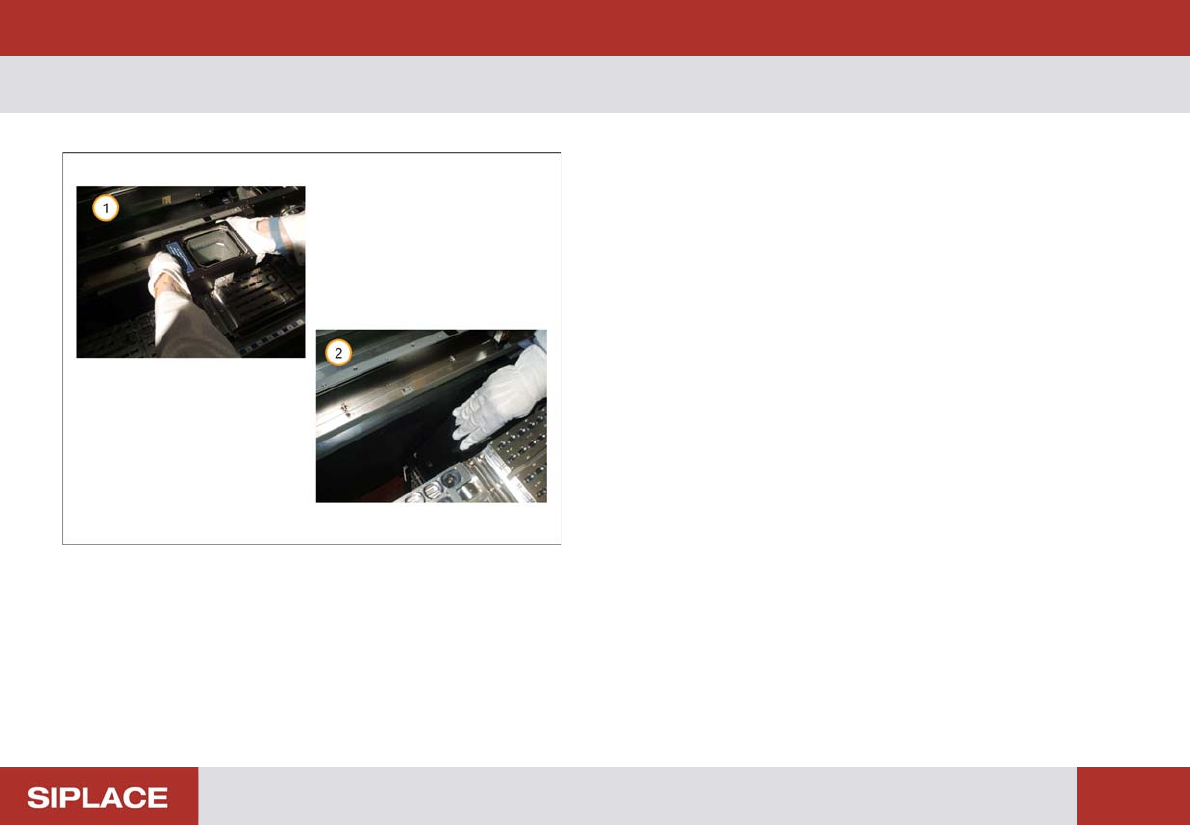

Clean the S tationary Camera Lens
1. Remove the stationary camera.
2. Carefully clean the glass lens of the camera with a
lens cloth.
3. Refit the stationary camera.
Reboot the machine by turning on the main power switch.
It will take around 2 minutes for the machine to be ready.
Weekly PM (70x) - Refit the Feeder Tables :
187
Refit the Feeder Tables
1. Refit the feeder tables to the correct location.
2. Check the part numbers of the component reels
loaded onto the feeders against those on the set up
sheet for that machine location.
Ensure the right table is loaded to the right location!
3. Check that a component is present at the pick up
position for each feeder.
4. Empty the cover tape holders on all the feeders.
5. Empty the waste tape bin on all the feeder tables.
