Machine Safety (70x) - High temperatures r elated to CP20 head a nd X feeders. : 19 High tempe ratures related to CP20 head and X f eeders. Areas of t he C&P 20 head and X-feeders can reach hig h temperatures when th…

Machine Safety (70x) - Warning Labels - Lasers :

Warning Labels - Lasers

1. Laser Class 1 – for the stationary cameras (used by

the P&P and Twin Heads) and PCB camera

2. Laser Class 1M – for the C&P head cameras

3. Laser Class 2 - Do not look into the beam – for the

conveyor system light barriers, PCB barcode readers

and Coplanarity module option

Machine Safety (70x) - High temperatures related to CP20 head and X feeders. :

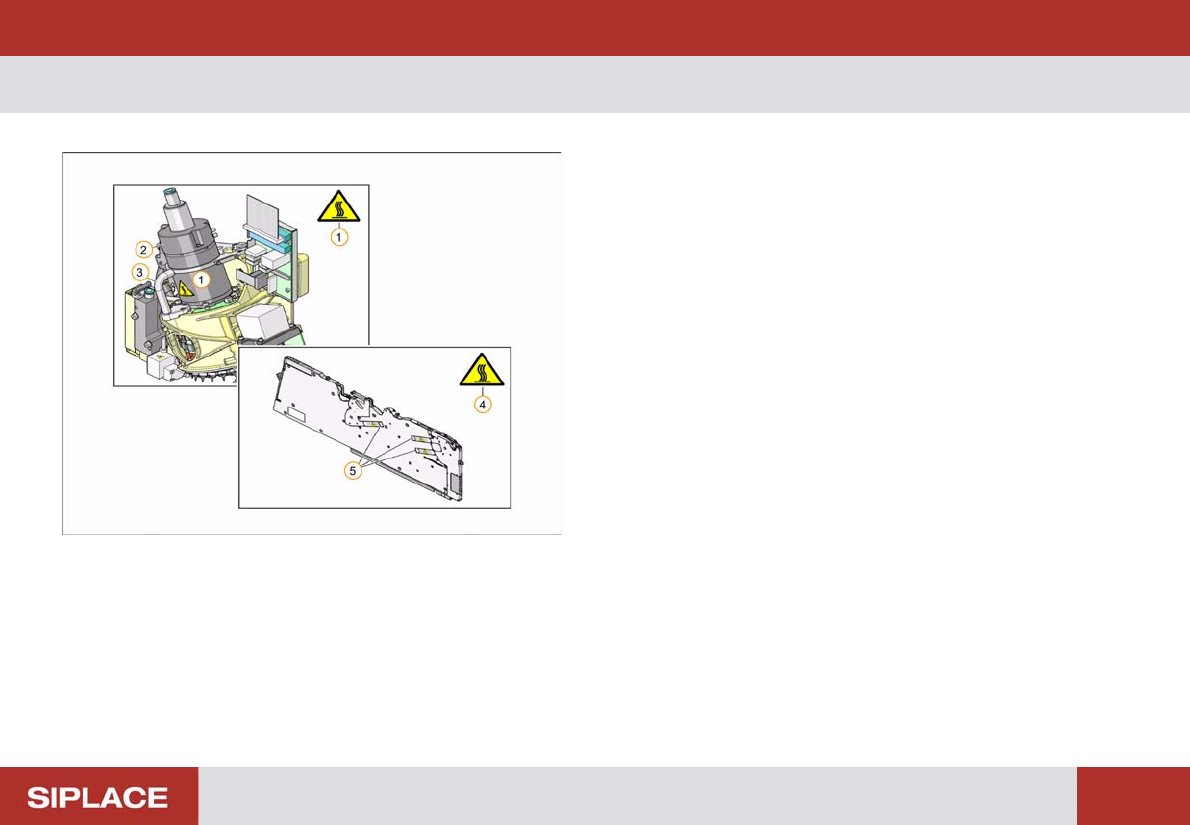

High tempe ratures related to CP20 head and X f eeders.

Areas of the C&P 20 head and X-feeders can reach high

temperatures when they have been in continuous

operation.

1. The Star motor body can become hot during

operation – take care not to touch the parts!

2. Star motor housing

3. Grab handle

4. The stepper motors used by the X-feeders can

become hot during operation – take care not to touch

the parts!

5. 3 Stepper motors

Machine Safety (70x) - High temperatures related to Head Control Unit. :

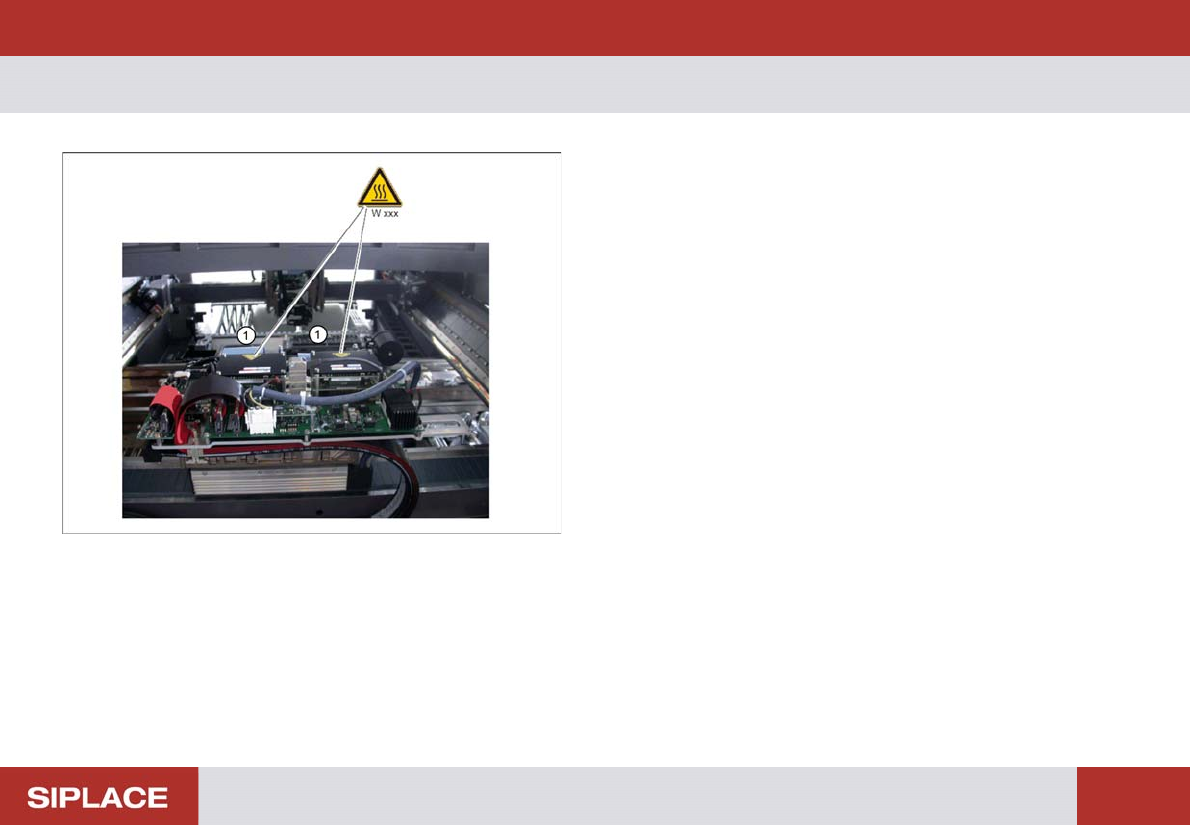

High tempera tures related to Head Control Unit.

Areas of the Head Control Unit (HCU) can reach high

temperatures when the machine has been in continuous

operation.

1. The HCU covers can become hot during operation –

take care not to touch the parts!
