Machine Safety (70x) - High temperatures related to Head Control Unit. :
20
High tempera tures related to Head Control Unit.
Areas of the Head Control Unit (HCU) can reach high
temperatures when the machine has been in continuous
operation.
1. The HCU covers can become hot during operation –
take care not to touch the parts!
Machine Safety (70x) - Buttons and switches - X-series machines :
21

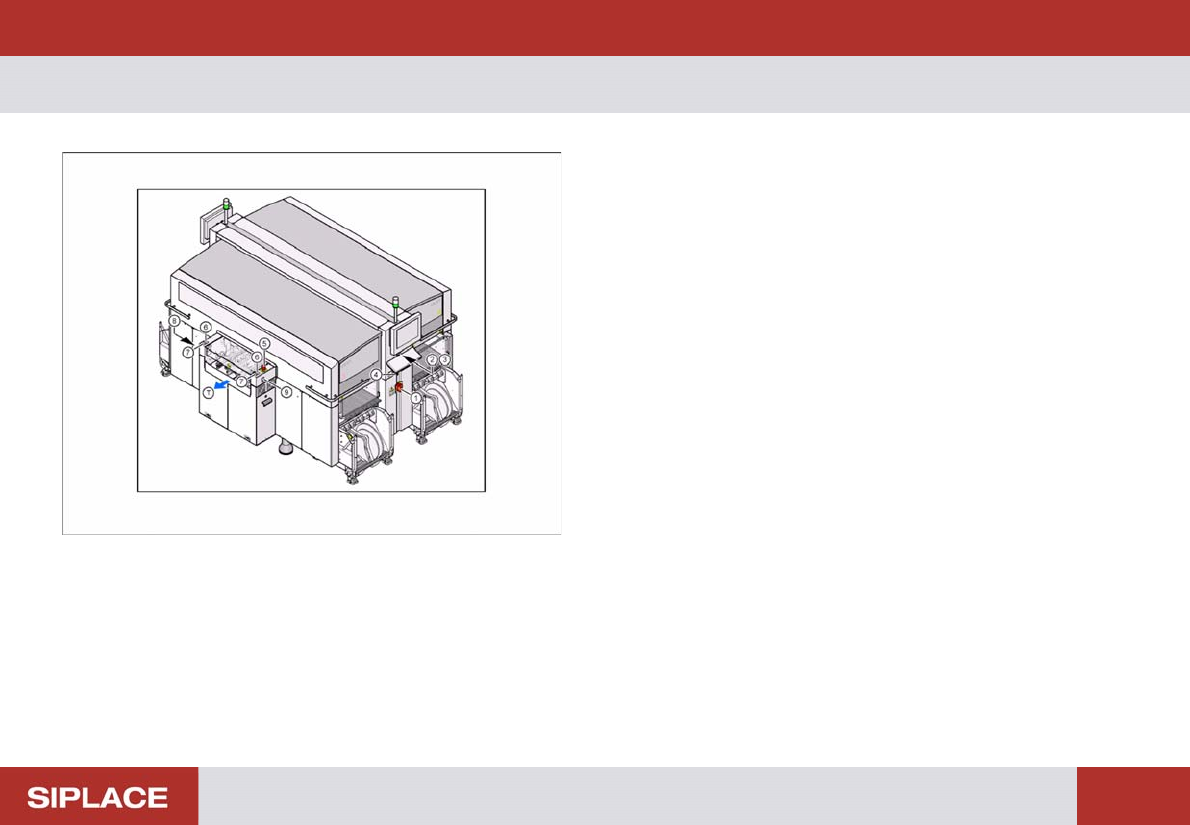

Buttons an d switches - X-s eries machines
1. Main Power Switch
2. Stop button (black) operator panel
3. Start button (white) operator panel
4. Component counter
5. Emergency stop button – output side (repeated at
input side)
6. Start button (white) – output side (repeated at input
side)
7. Stop button (black) – output side (repeated at input
side)
8. Button for docking component table 2 – repeated at
input side for table 1
9. Button for docking component table 3 – repeated at
input side for table 4
(T) Transport direction.
Machine Safety (70x) - Safety Covers - X-series machines :
22

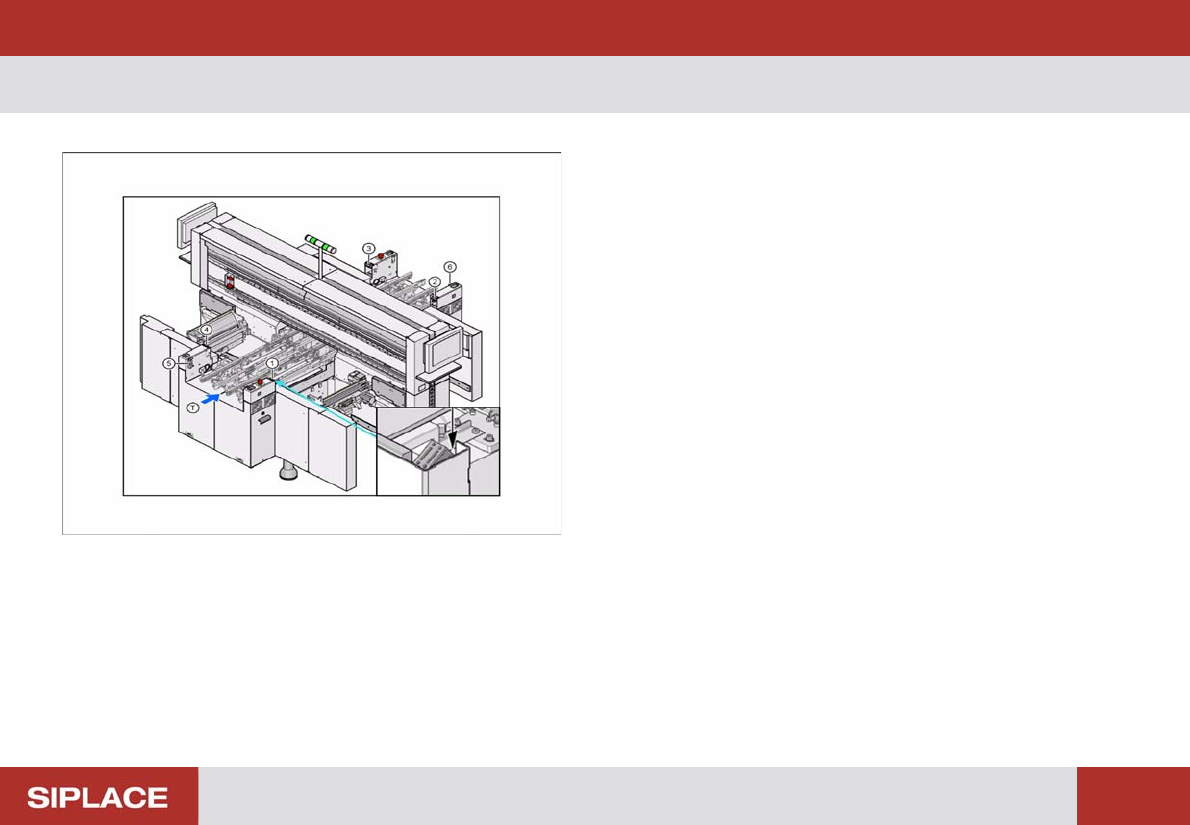

Safety Co vers - X-se ries machines
All SIPLACE machines are fitted with safety covers to
protect the operator. Theses safety covers must be kept
closed at all times when the machine is in operation.
Each cover is fitted with a switch to detect if it is closed
properly.
1. Safety Cover Switch – location 1
2. Safety Cover Switch – location 2
3. Safety Cover Switch – location 3
4. Safety Cover Switch – location 4
5. Safety Cover Switch – input conveyor flap
6. Safety Cover Switch – output conveyor flap
(T) Transport direction.
