Machine Safety (70x) - Buttons and switches - X-series machines :
21
Buttons an d switches - X-s eries machines
1. Main Power Switch
2. Stop button (black) operator panel
3. Start button (white) operator panel
4. Component counter
5. Emergency stop button – output side (repeated at
input side)
6. Start button (white) – output side (repeated at input
side)
7. Stop button (black) – output side (repeated at input
side)
8. Button for docking component table 2 – repeated at
input side for table 1
9. Button for docking component table 3 – repeated at
input side for table 4
(T) Transport direction.
Machine Safety (70x) - Safety Covers - X-series machines :
22
Safety Co vers - X-se ries machines
All SIPLACE machines are fitted with safety covers to
protect the operator. Theses safety covers must be kept
closed at all times when the machine is in operation.
Each cover is fitted with a switch to detect if it is closed
properly.
1. Safety Cover Switch – location 1
2. Safety Cover Switch – location 2
3. Safety Cover Switch – location 3
4. Safety Cover Switch – location 4
5. Safety Cover Switch – input conveyor flap
6. Safety Cover Switch – output conveyor flap
(T) Transport direction.

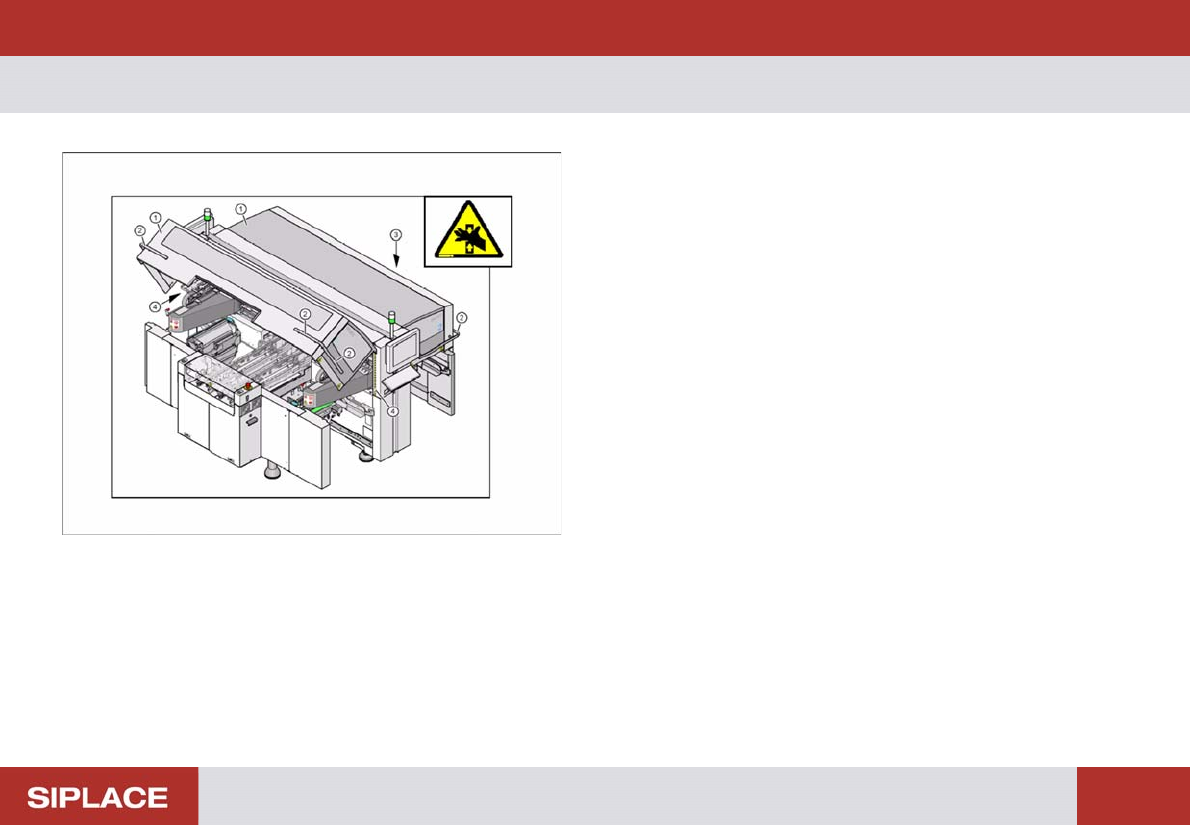

Machine Safety (70x) - Safety Covers – X-series machines :
23
Safety Covers – X-series machines
Risk of crushing if the covers are not opened/ closed
properly. Use both hands on the grab handles to open /
close the covers to avoid risk.
1. Safety Covers
2. Grab handles
3. Safety Cover over PCB conveyors
4. Warning strips (yellow and black)
(T) Transport direction.
