Machine Safety (70x) - Buttons and switches - SX-series machines :

Buttons an d switches - SX- series machine s

1. Main Power Switch.

2. Start button (white).

3. Emergency stop button.

4. Stop button (black).

(T) Transport direction.

Machine Safety (70x) - Safety Covers - SX-series machines :

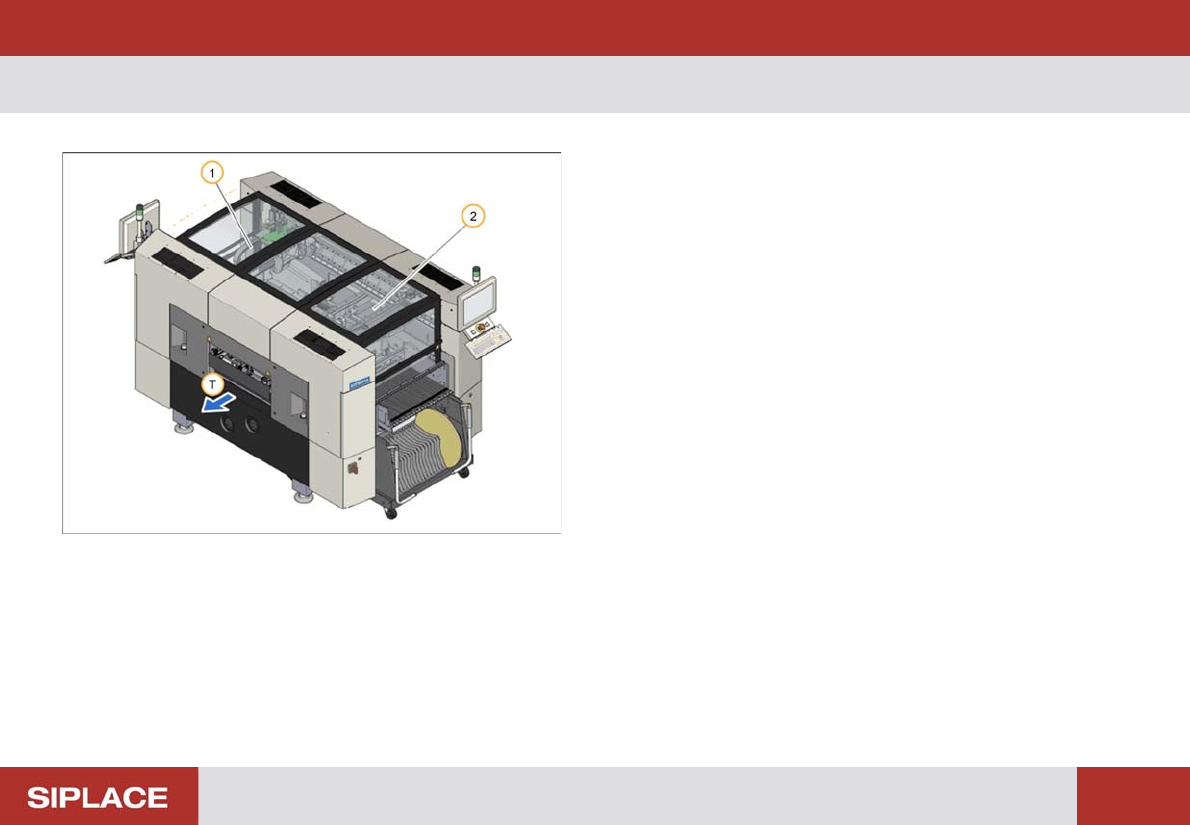

Safety Covers - S X-series machines

All SIPLACE machines are fitted with safety covers to

protect the operator. Theses safety covers must be kept

closed at all times when the machine is in operation.

Each cover is fitted with a switch to detect if it is closed

properly.

1. Safety Cover location 1

2. Safety Cover location 2

(T) Transport direction.

Machine Safety (70x) - Safety Covers – SX-series machines :

Safety Covers – SX-series machines

There is a risk of crushing if the covers are not opened /

closed properly. Use both hands on the grab handles to

open / close the covers to avoid risk.

1. Danger of crushing - use the grab handles when

closing the covers

2. Danger of crushing - do not reach into the end of the

machine.

(T) Transport direction.
