Machine Overview (70x) - SIPLACE SX-Series machine setup : 34 SIPLACE SX-Series mac hine setup General Overview 1. Gantr y 1 2. Ganrty 2 3. Changeover tables 4. Operator pane ls (T) Transport Direction (R) Right of machi…
Machine Overview (70x) - SIPLACE SX-Series machine types :
33
SIPLACE SX-Series mac hine types
Machine types
1. SIPLACE SX series
2. SIPLACE SX1
3. SIPLACE SX2
Station control
4. GUI Software – 703.
Machine Overview (70x) - SIPLACE SX-Series machine setup :
34

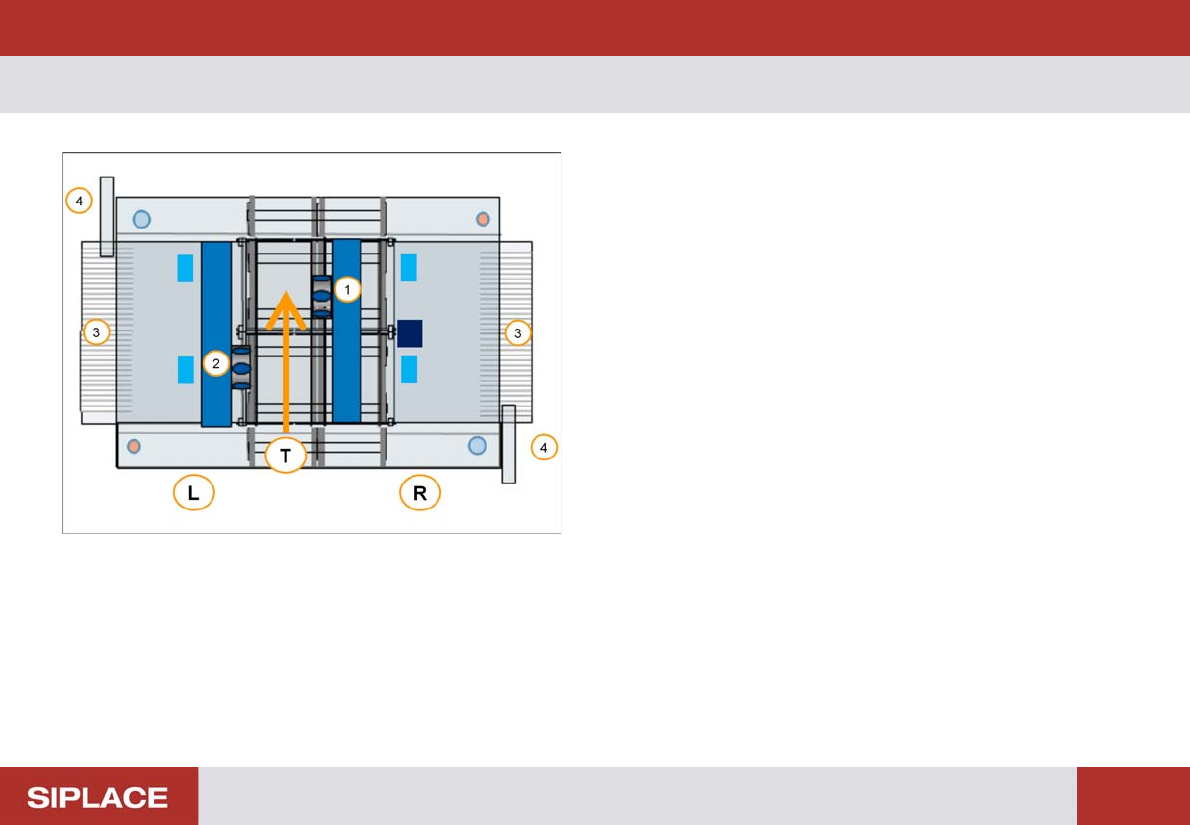

SIPLACE SX-Series mac hine setup
General Overview
1. Gantry 1
2. Ganrty 2
3. Changeover tables
4. Operator panels
(T) Transport Direction
(R) Right of machine
(L) Left of machine
Machine Overview (70x) - SIPLACE SX-Series machine setup :
35
SIPLACE SX-Series mac hine setup
General Overview
1. Stationary camera
2. Nozzle changers
3. Optional 2nd row of nozzle changers.
(T) Transport Direction
(R) Right of machine
(L) Left of machine
