Nozzles (70x) - Overview H ead Types vs. Nozzles : 39 Nozzles (70x) Identification of nozzle types. 1. Identification by color point. 2. Identification by number ing.
Machine Overview (70x) - SIPLACE feeder modules :
38

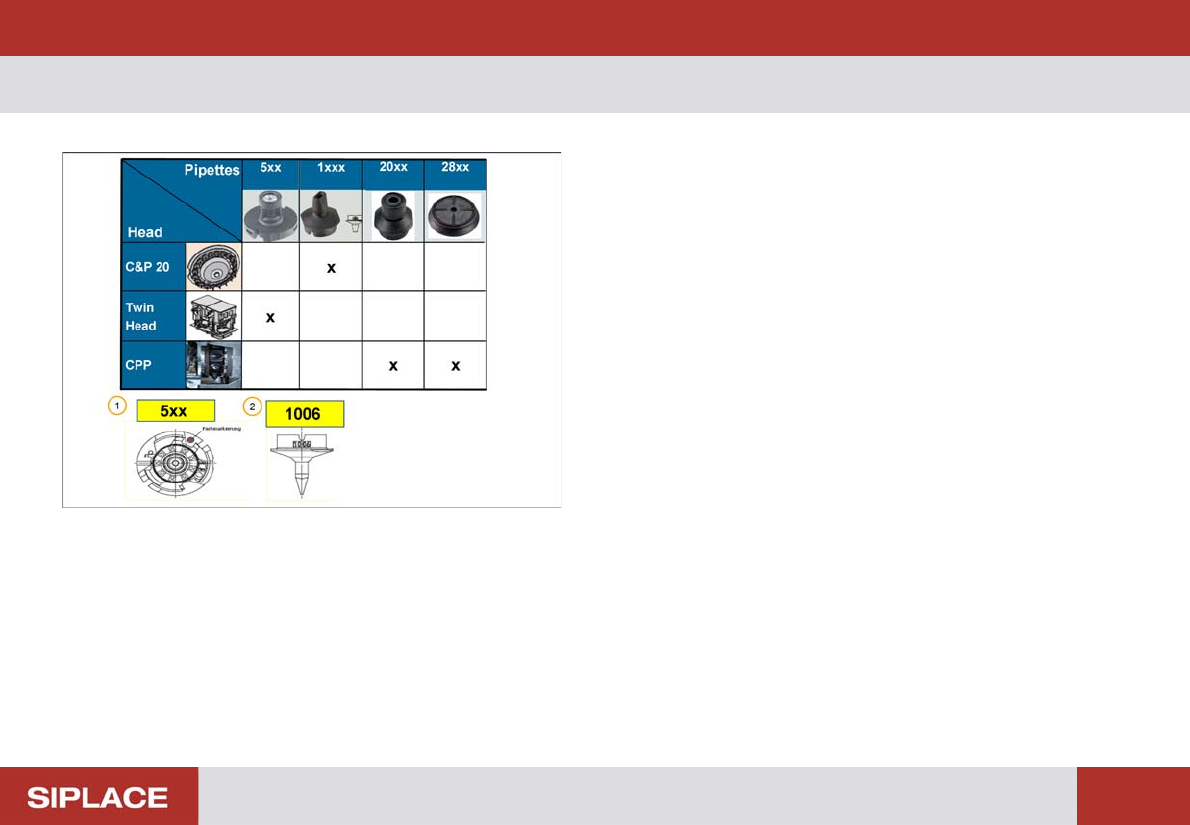

Nozzles (70x) - Overview Head Types vs. Nozzles :
39
Nozzles (70x)
Identification of nozzle types.
1. Identification by color point.
2. Identification by numbering.
Nozzles (70x) - Keep the Ceramic Nozzles Clean! :
40
Keep the C eramic Nozzles C lean!
Ceramic nozzles must be cleaned regularly.
Uncleaned nozzles can produce a high reject rate and
effect placement quality!

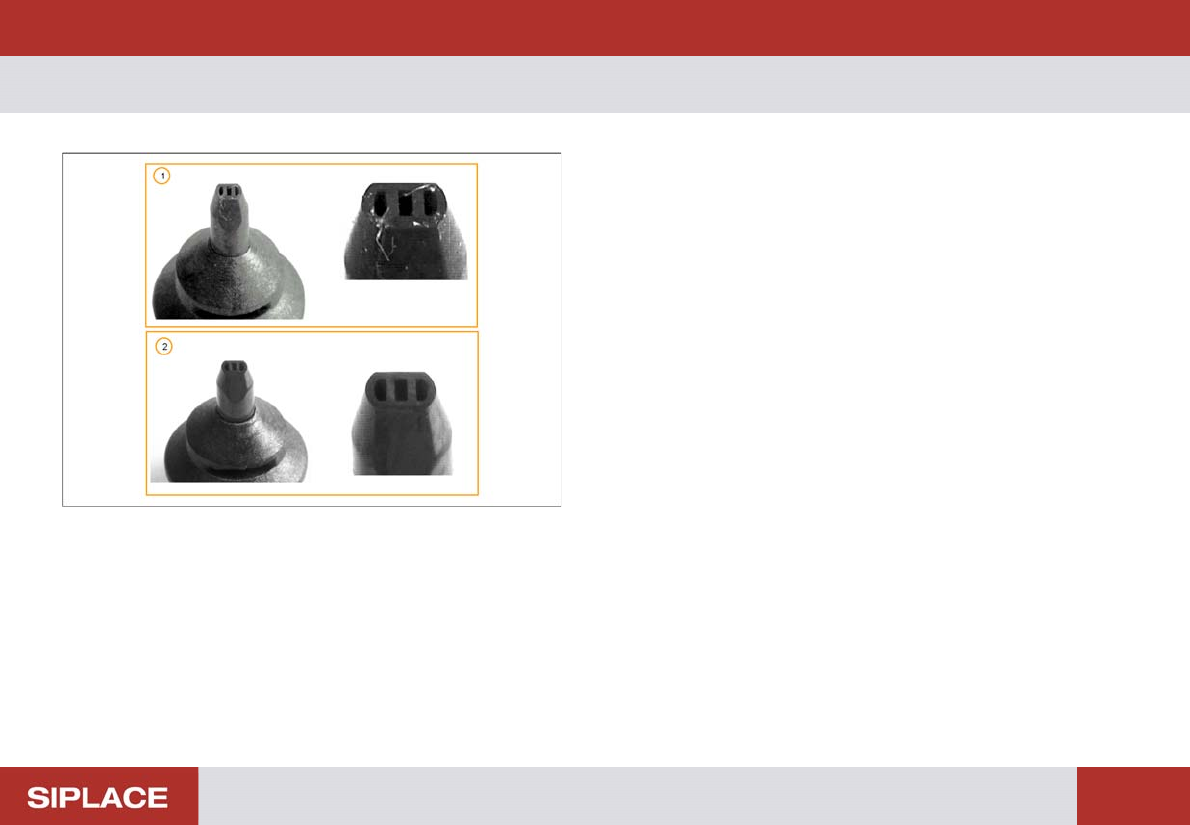

1. Ceramic nozzles before cleaning.
2. Ceramic nozzles after cleaning.
