Preparing the Compone nt Set Up - Printing a Set Up report : 43 Printing a Set Up report The offline setup verification is carried out s eparately fo r each changeover table. 1. Check and see if the setup is displayed as…
Preparing the Component Set Up - Steps to prepare a product to run at the line :
42
Steps to prepare a product to run at the line
Preparing the Component Set Up - Printing a Set Up report :
43
Printing a Set Up report
The offline setup verification is carried out separately for
each changeover table.
1. Check and see if the setup is displayed as offline
setup in Setup Center.
2. Print the Setup Report for the setup to be verified. By
the selection window on the left border of SIPLACE
Setup Center reports can be displayed and printed
out.
Preparing the Component Set Up - Reading / Interpreting Of The Table Set Up Sheet :
44

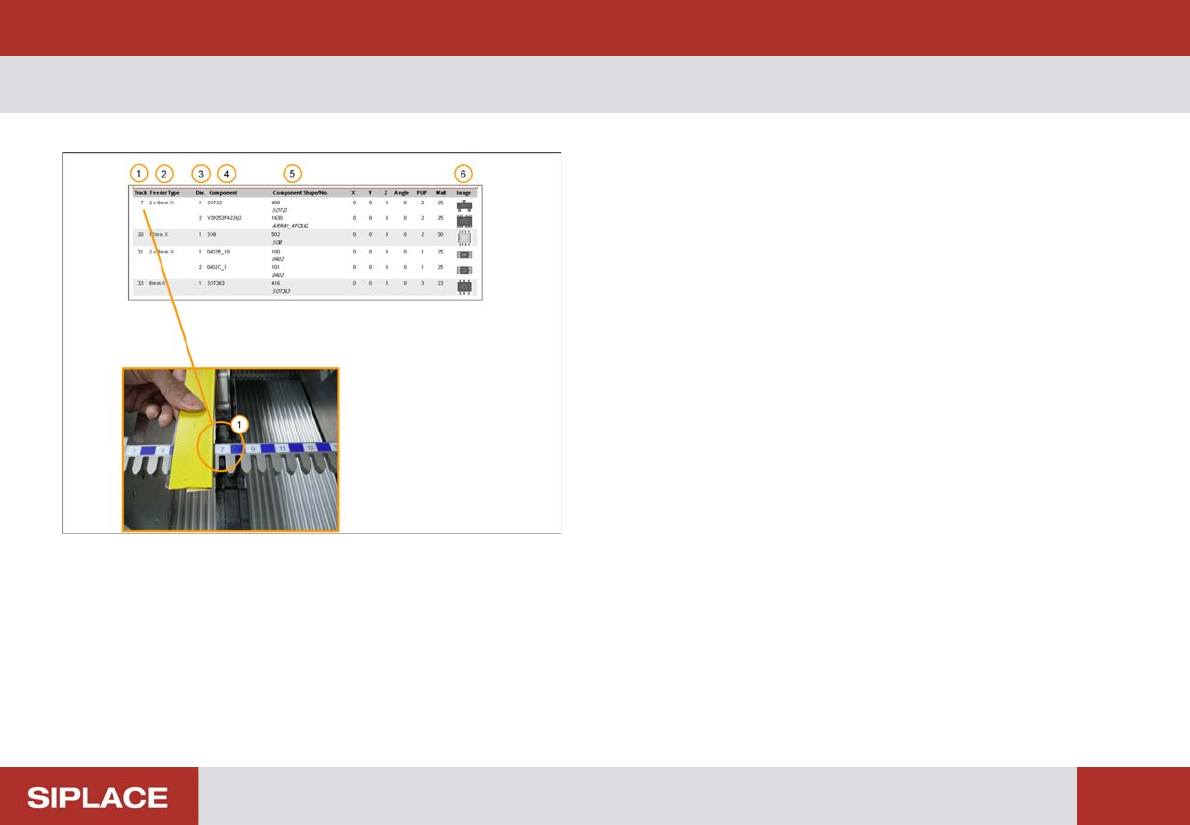

Reading / Inter preting Of The T able Set Up Sheet
1. Track number of the feeder.
2. Size and type of feeder.
3. Feeder Division Number (2 x 8mm feeder only).
4. Component Part number.
5. Component shape and number.
6. Graphical Image of the components (angle at pick up
position).
