Setting Up X-Feeders - Loading Feeders - Inserting the Cover tape :
53
Loading Feeders - Inserting the Cover tape
1. Press and hold the cover tape end between finger
and thumb
2. Guide the cover tape into the channel and hold down
the Foil button
3. The cover tape is drawn in and stops when it is
tensioned
Setting Up X-Feeders - Unloading Feeders - Removing a tape :
54
Unloading Feeders - Removi ng a tape
1. Removal of tape with energy supply
(A) Cut the Cover Tape
(B) Press the Backwards button
(C) Remove the tape
2. Removal of tape without energy supply
(A) Cut the Cover Tape
(B) Press the lever forwards
(C) Remove the tape
Setting Up X-Feeders - Unloading Feeders - Removing a Feeder :
55

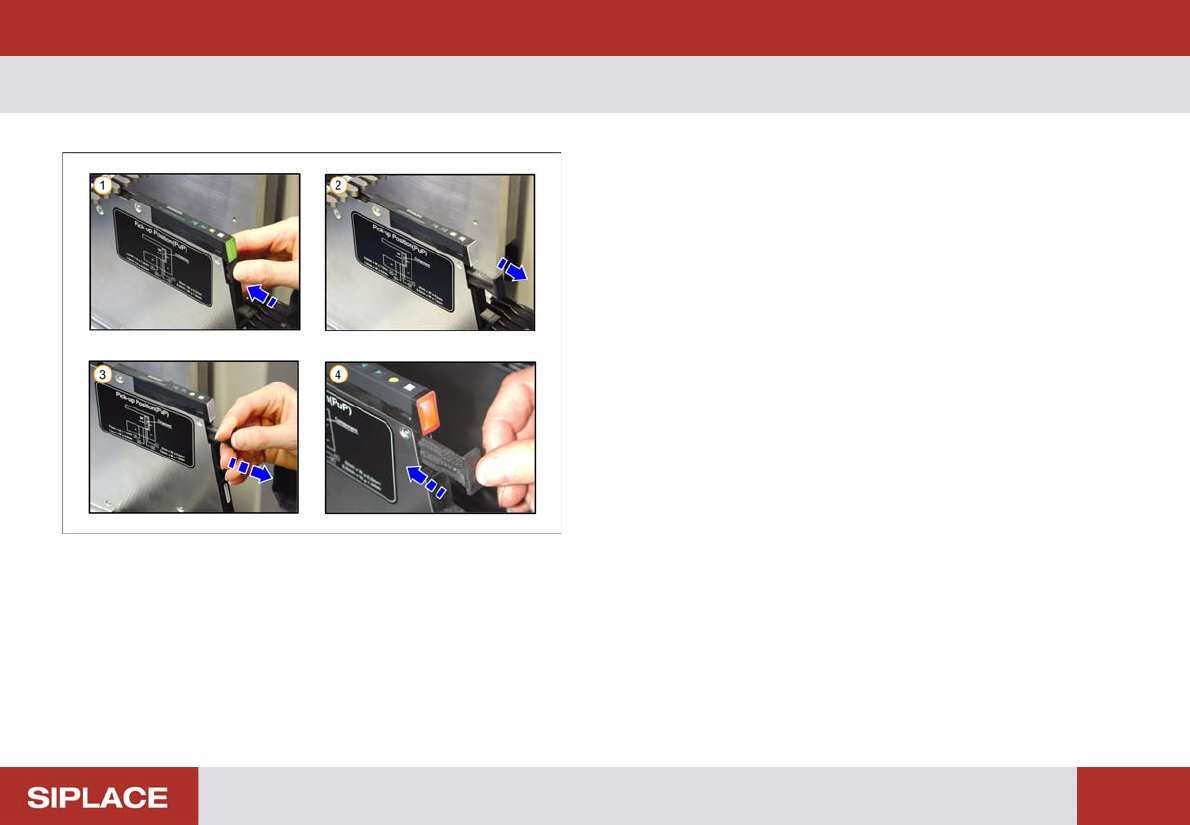

Unloading Feeders - Removing a Feeder
1. Push in the removal handle, the feeder is now
disconnected
2. The status display is not illuminated, the handle
springs out
3. Pull the handle to remove the feeder
4. If delayed the status display will turn red. Push in the
removal handle to reconnect the feeder and then
repeat steps 1 – 3
