Setting Up X-Feeders - 8mm X - Setting the Pick-up position :
58
8mm X - S etting the P ick-up position
NOTICE! The settings for a 8mm feeder are set
automatically when the recipe is downloaded to the line.
The settings should be programmed at the SIPLACE Pro
computer.
1. Start screen – press the Set button.
2. Press the Forwards button – the current pick-up
position is displayed
3. Press the Forwards button again to select the correct
position – 2/ 3?/ etc..
4. Set the required pick-up position by pressing the Foil
button. A ! briefly appears until the pick-up position is
reached
5. Repeatedly press the Set button to return to the start
screen
NOTICE! The feeder will also return to the start
screen if no button is pressed for 1 minute.
Setting Up X-Feeders - 12mm X - Pick-up positions :
59
12mm X - Pick-u p positions
NOTICE! W = width of component in transport
direction.
Pick-up position = center of component.
(A) Direction of tape movement
(B) Cover tape removal edge
1. Pick-up position 1 –Component width W smaller or
equal to 3mm
2. Pick-up position 2 - Component width W larger than
3mm and smaller or equal to 7mm
3. Pick-up position 3 - Component width W larger than
7mm and smaller or equal to 11.5mm
Setting Up X-Feeders - 12mm X - Setting the Pick-up position :
60
12mm X - Sett ing the Pick-up p osition

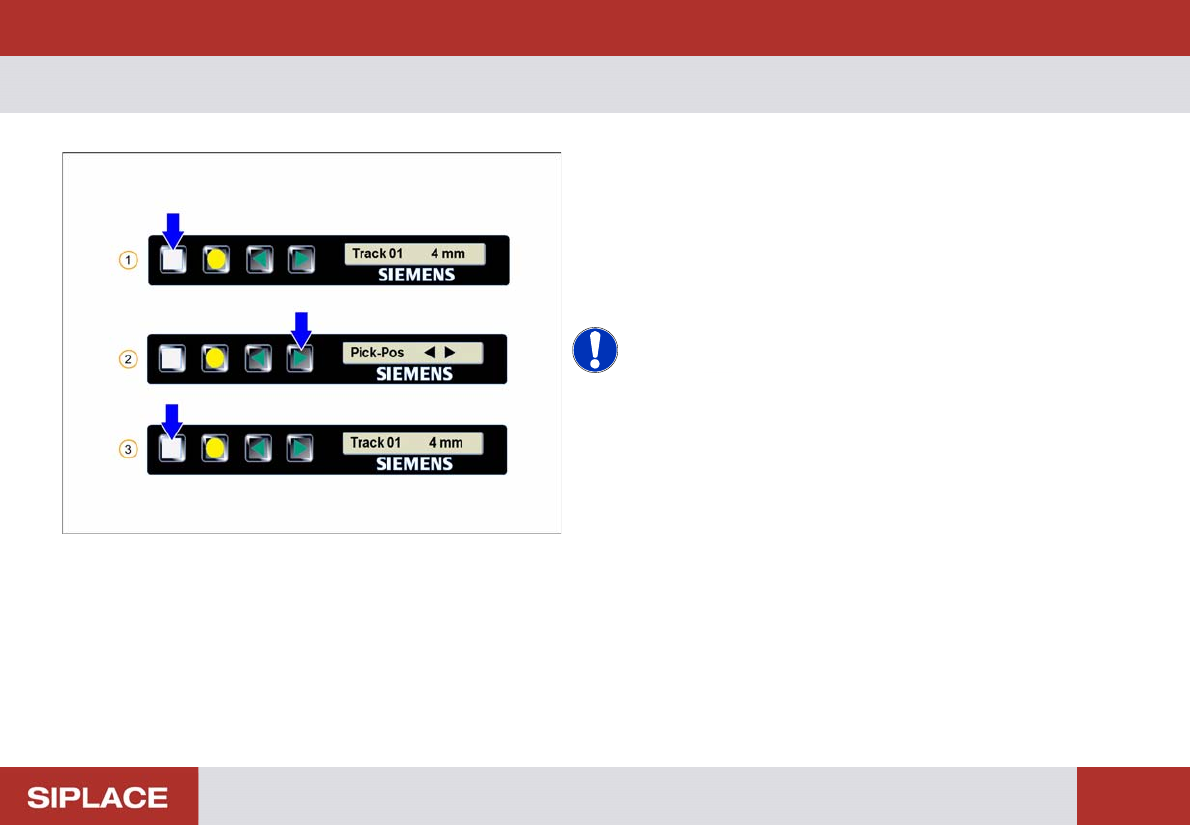

1. Start screen – press the Set button
2. Press the Forwards button – the tape advances in
2mm steps until the centre of the component is at the
correct pick-up position
3. Repeatedly press the Set button to return to the start
screen
NOTICE! The feeder will also return to the start
screen if no button is pressed for 1 minute.
