SW 703 Option MTC - Numbering System Of Levels (Towers 1 & 2) :

Numbering Syst em Of Levels (T owers 1 & 2)

Tower 1 has a total of 5 cassettes XL and 30 carriers.

Tower 2 has a total of 4 cassettes and 40 carriers.

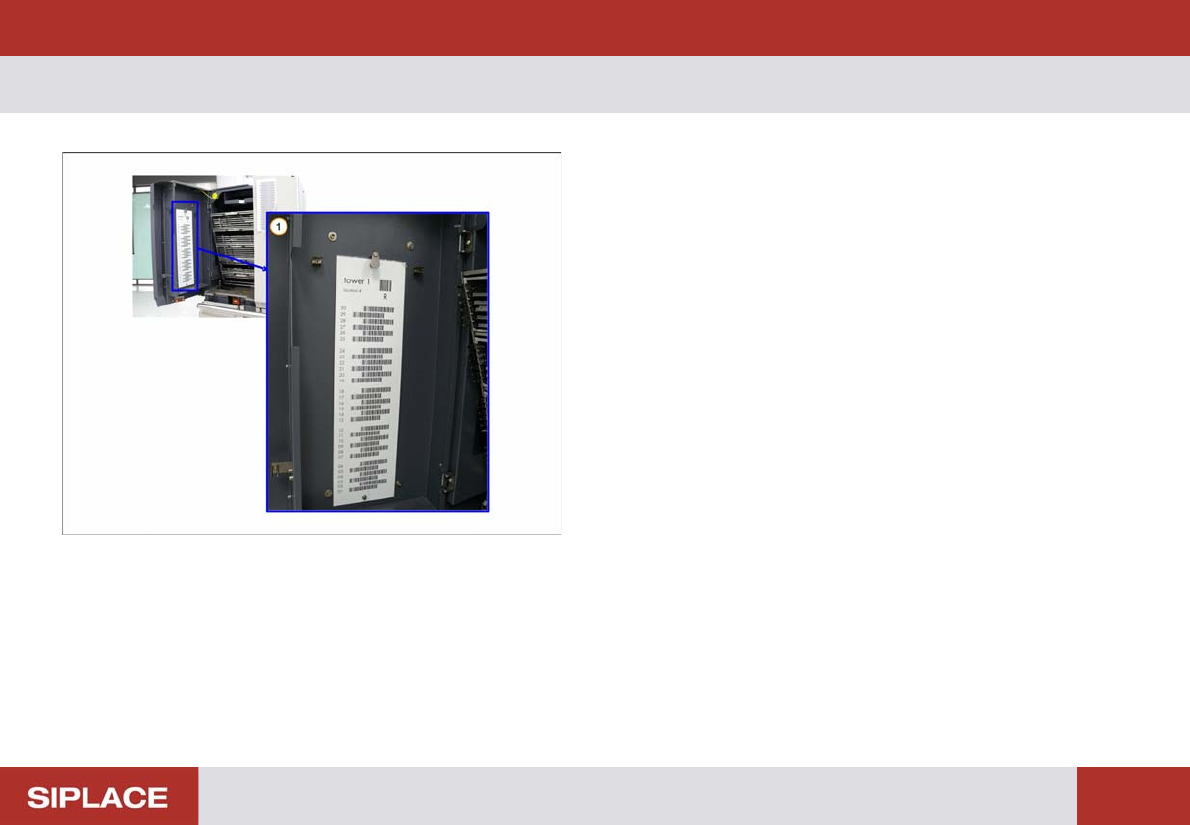

1. A numbering chart with bar code is found at top left

corner inside the unit

SW 703 Option MTC - Numbering System Of Levels (Towers 1 & 2) :

Numbering Syst em Of Levels (T owers 1 & 2)

1. Numbering of the metal carrier starts from the bottom:

Tower 1

Lowest level = 1

Highest level = 30

Tower 2

Lowest level = 1

Highest level = 40

2. Numbering of the Cassette XL starts from the bottom

Tower 1

Lowest level = 1

Highest level = 6

Tower 2

Lowest level = 1

Highest level = 4

SW 703 Option MTC - Removal Of Carriers for both Towers :

Removal O f Carriers for both T owers

Removal of the carrier involves 4 steps, it is the same

procedure for both towers (Tower 1 is used for

illustration):

1. Open the tower door

2. Turn the latch outward to unlock the carriers

3. Pull the WTC interlock leaf spring sideward

4. Pull the empty tray out
