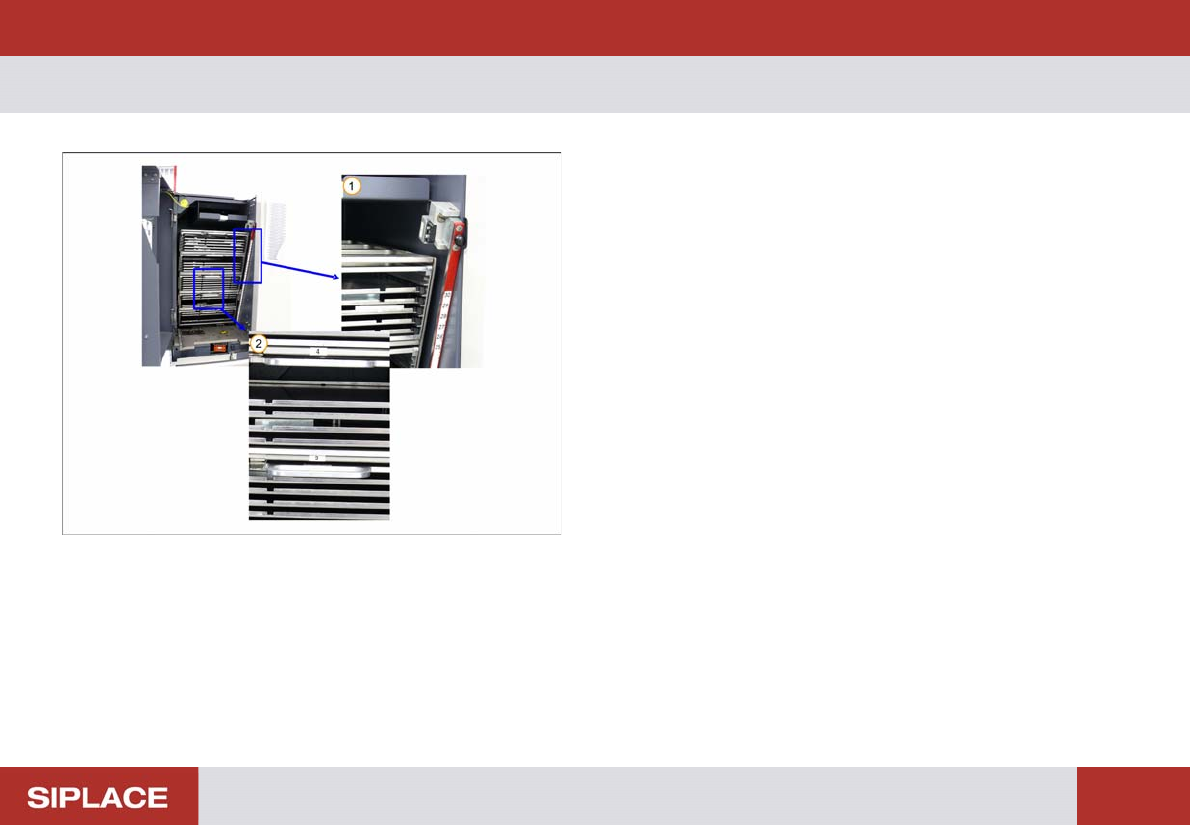

SW 703 Option MTC - Numbering System Of Levels (Towers 1 & 2) :

Numbering Syst em Of Levels (T owers 1 & 2)

1. Numbering of the metal carrier starts from the bottom:

Tower 1

Lowest level = 1

Highest level = 30

Tower 2

Lowest level = 1

Highest level = 40

2. Numbering of the Cassette XL starts from the bottom

Tower 1

Lowest level = 1

Highest level = 6

Tower 2

Lowest level = 1

Highest level = 4

SW 703 Option MTC - Removal Of Carriers for both Towers :

Removal O f Carriers for both T owers

Removal of the carrier involves 4 steps, it is the same

procedure for both towers (Tower 1 is used for

illustration):

1. Open the tower door

2. Turn the latch outward to unlock the carriers

3. Pull the WTC interlock leaf spring sideward

4. Pull the empty tray out

SW 703 Option MTC - Loading Of Carrier for both Towers :

Loading Of Carrier for both Towers

Loading of the carrier involves 4 steps, it is the same

procedure for both towers (Tower 1 is used for

illustration):

1. Push in the refilled carrier

2. Turn the latch inward to secure the carriers

3. Close the tower door

NOTICE! Always ensure that the leaf spring is

locked.
