00196851-02 OG SIPLACE Operation of X and SX-Series with SSC (SW70x) - 第94页
SW 703 Option MTC - Filling MTC : 94 Filling MTC 1. Location 2 (Matri x Tray Cha nger). 2. Locations menu icon – click here to enter the feeder menu.
SW 703 Option MTC - Locking Of The Leaf Springs (Towers 1 & 2) :
93
Locking Of Th e Leaf Springs (T owers 1 & 2)
1. Leaf Springs are often found unlocked due to
improper loading of the carriers
WARNING! A crash could occur if the carriers
are not loaded correctly and the leaf springs are not
closed.
SW 703 Option MTC - Filling MTC :
94

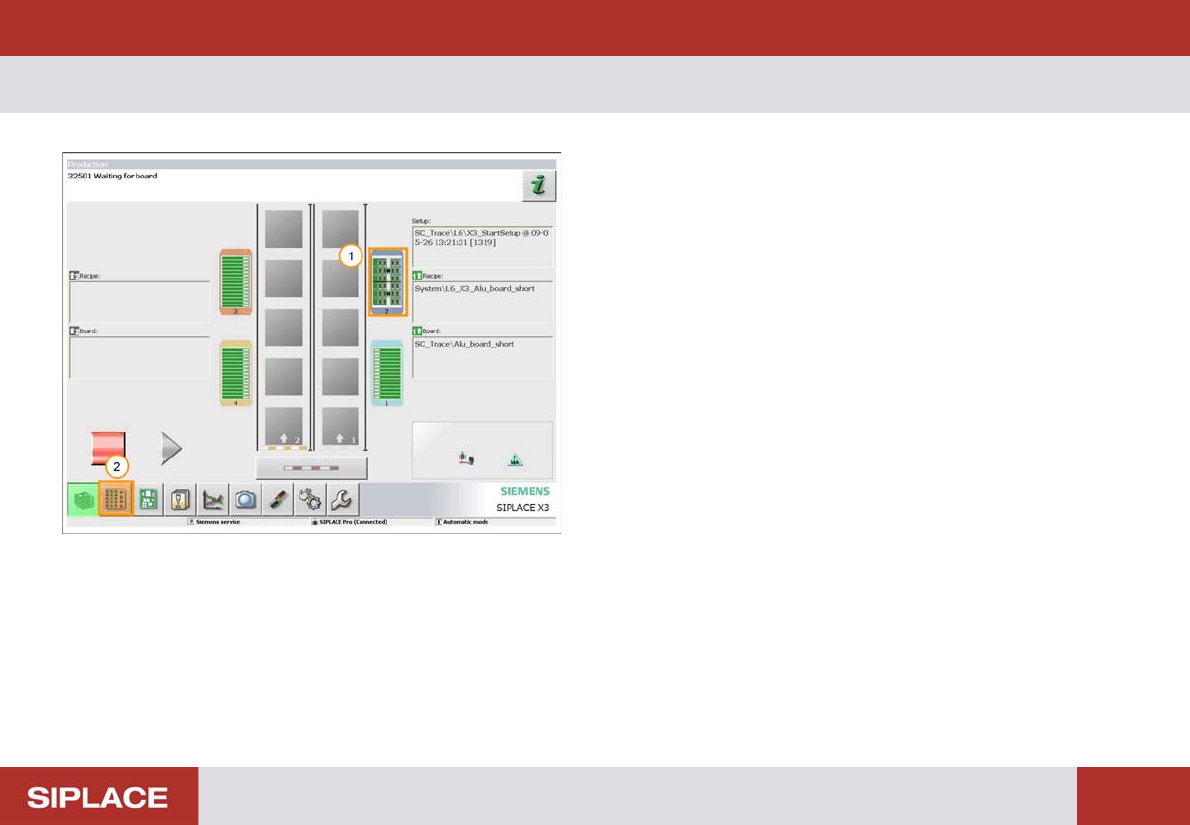

Filling MTC
1. Location 2 (Matrix Tray Changer).
2. Locations menu icon – click here to enter the feeder
menu.
SW 703 Option MTC - Set Up Sheet for MTC :
95

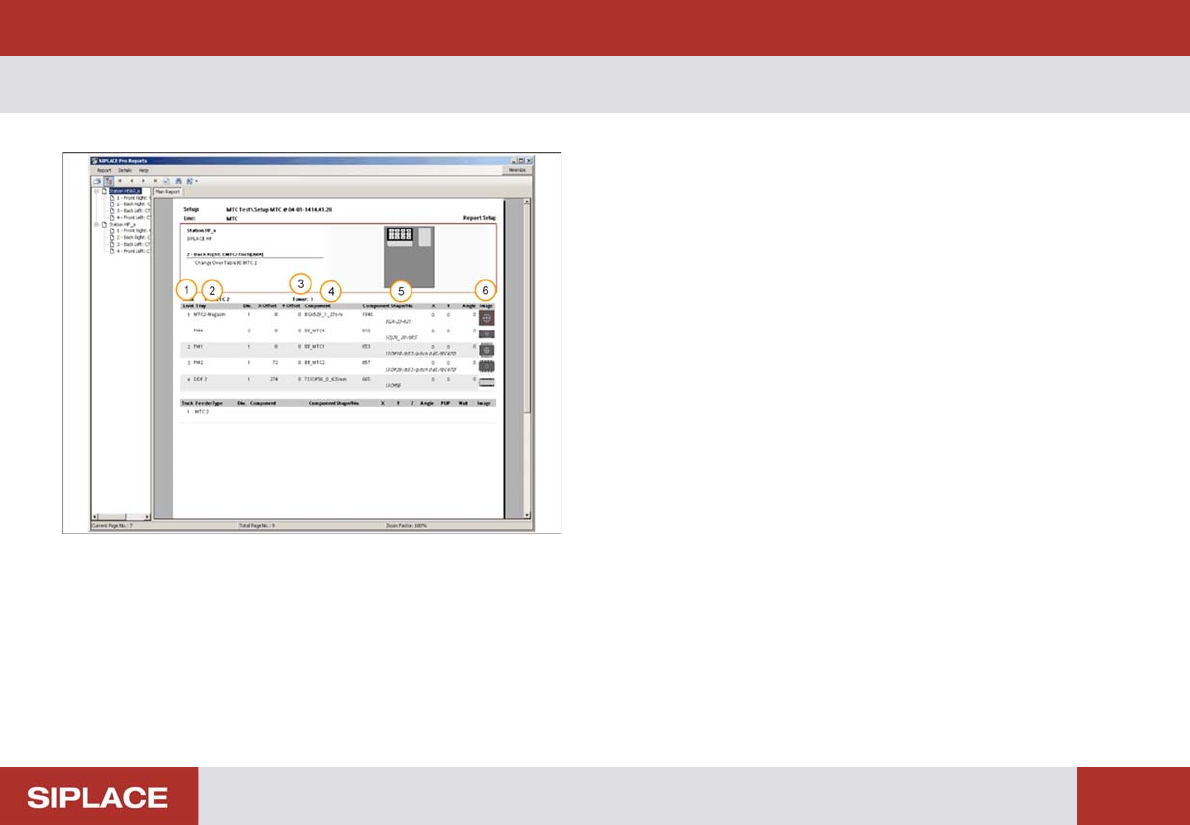

Set Up Sheet for M TC
Print the Set Up report for the MTC in the same way as
for the feeder tables.
1. Level of MTC.
2. Type of tray.
3. Tower Number.
4. Component Part Number.
5. Component Shape and number.
6. Graphical Image of the component (angle at pick up
position).
