semi automatic
0$&+,1(352*5$00,1*
63&&21),*85$7,21
1.96 User Manual Software Version 07SP02
Edit SPC Limits Pressing the Edit Limits key when SPC Configuration Page is displayed opens
the following window and menu bar:
NOTE
The shaded parameters in the window are set by the machine.
Each parameter can be set to stop the machine if the limits are exceeded.
The Left and Right keys move the cursor across the parameter columns.
The Next and Previous keys move the cursor vertically through the parameter
list.
The Incr. and Decr. keys increase or decrease the highlighted parameter.
The Exit key returns to the previous menu.
The SPC parameters and their edit limits are listed in the table below:
EDIT SPC LIMITS
X Alignment Deviation
Y Alignment Deviation
Theta Alignment Deviation
Board Stretch
Front Pressure
Rear Pressure
Separation Speed
Temperature
Relative Humidity
Cycle Time
Table Position
Board Fiducial 1 Score
Parameter Stop On
Limit
Maximum
Limit
Minimum
Limit
Nominal
+0.025
+0.025
+27
+0.10
+0.2
+2.00
+2.00
+5
+25
+2.0
+0.4
+300
-0.025
-0.025
-27
-0.10
-0.2
-2.00
-2.00
-5
-25
-2.0
-0.4
-200
0.000
0.000
0
0.00
0.0
0.0
1.0
22
50
30.0
0.000
700
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
Left Right Next Previous Incr. Decr. Exit
Parameter Nominal Default
Tolerances
Increment
Size
Tolerance
Range
X Alignment Deviation 0 ± 0.025mm 0.0005mm ± 1mm
Y Alignment Deviation 0 ± 0.025mm 0.0005mm ± 1mm
Theta Alignment Deviation 0 ± 31 arcsec 1 arcsec ± 100arcsec
Board Stretch 0 ± 0.1mm 0.01mm ± 1mm
Front pressure Product
Parameter
± 0.2kg 0.01kg ± 2kg
Rear Pressure Product
Parameter
± 0.2kg 0.01kg ± 2kg
Separation Speed Product
Parameter
± 0.5mm 0.25mm ± 5mm
Temperature 22 ± 5 degrees 1 degree ± 10 degrees
Relative Humidity 50 ± 25% 1% ± 50%
Cycle Time 30 ± 2 secs 0.1 sec ± 10 secs
Table Position Product
Parameter
(print gap)
± 0.2mm 0.025mm ± 1mm
Board Fiducial 1 Score 700 +375, +100 10 ± 500
semi automatic
0$&+,1(352*5$00,1*
63&&21),*85$7,21
Software Version 07SP02 User Manual 1.97
Screen Fiducial 1 Score 700 +375, +100 10 ± 500
Board Fiducial 2 Score 700 +375, +100 10 ± 500
Screen Fiducial 2 Score 700 +375, +100 10 ± 500
X Pre Alignment Deviation 0 ± 0.025mm 0.0005mm ± 1mm
Y Pre Alignment Deviation 0 ± 0.025mm 0.0005mm ± 1mm
Theta Pre Align Deviation 0 ± 27 arcsec 1 arcsec ± 100 arcsec
Pre Print Board Stretch 0 ± 0.1mm 0.01mm ± 1mm
Pre Fid 1 X Align Deviation 0 ± 0.0625mm 0.0005mm ± 1mm
Post Fid 1 X Align Deviation 0 ± 0.0625mm 0.0005mm ± 1mm
Pre Fid 1 Y Align Deviation 0 ± 0.0625mm 0.0005mm ± 1mm
Post Fid 1 Y Align Deviation 0 ± 0.0625mm 0.0005mm ± 1mm
Pre Fid 2 X Align Deviation 0 ± 0.0625mm 0.0005mm ± 1mm
Post Fid 2 X Align Deviation 0 ± 0.0625mm 0.0005mm ± 1mm
Pre Fid 2 Y Align Deviation 0 ± 0.0625mm 0.0005mm ± 1mm
Post Fid 2 Y Align Deviation 0 ± 0.0625mm 0.0005mm ± 1mm
Front X Act Rel Movement 0 ± 0.45mm 0.025mm ± 2mm
Rear X Act Rel Movement 0 ± 0.85mm 0.025mm ± 2mm
Act Y Rel Movement 0 ± 0.25mm 0.025mm ± 2mm
Front X Act Position Front X Rough
Align Value
± 0.45mm 0.025mm ± 9mm
Rear X Act Position Rear X Rough
Align Value
± 0.85mm 0.025mm ± 9mm
Act Y Position Y Rough Align
Value
± 0.25mm 0.025mm ± 9mm
PVP Result 80 ± 20% 5% ± 50%
Front Print Speed Product
Parameter
± 0.5mm 0.25mm ± 5mm
Rear Print Speed Product
Parameter
± 0.5mm 0.25mm ± 5mm
Parameter Nominal Default
Tolerances
Increment
Size
Tolerance
Range
semi automatic
0$&+,1(352*5$00,1*
67$7863$*(
1.98 User Manual Software Version 07SP02

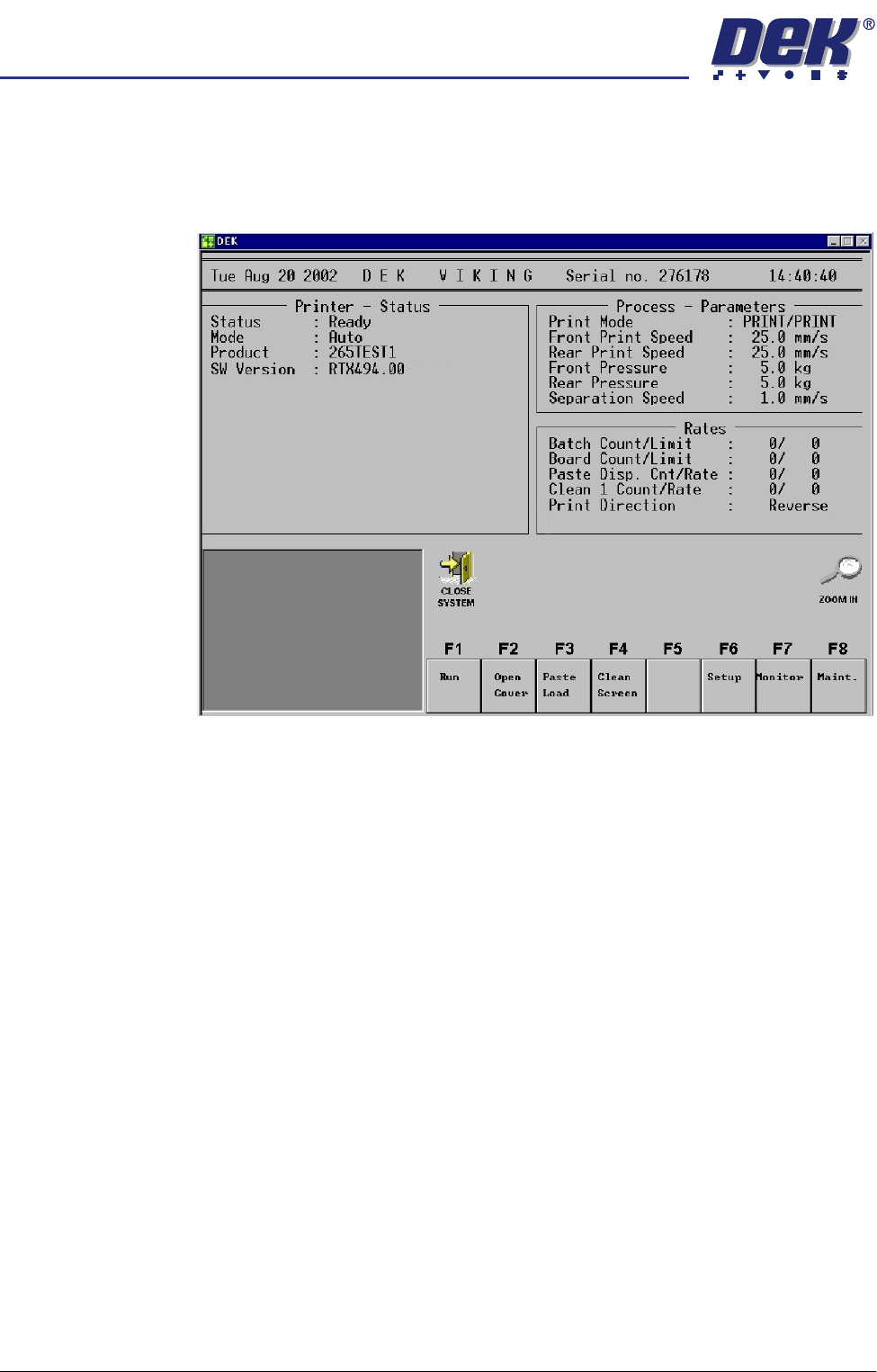

STATUS PAGE
The information displayed on the main control monitor is shown on the status
page.
Display
