semi automatic 0$&+,1( 352*5$ 00,1* 67$*( 32:(5 83 1.2 User Manual Software Version 0 7SP02 ST AGE 1 - POWER UP 1. T urn the mains is olator swit ch to ON . 2. When the message ‘Press SYSTEM Switch T o Initial…
semi automatic
0$&+,1(352*5$00,1*
,1752'8&7,21
Software Version 07SP02 User Manual 1.1
CHAPTER 1 MACHINE PROGRAMMING
INTRODUCTION
This chapter details the procedure for a product setup, in stages and are as
follows:
STAGE 1
POWER UP
STAGE 2
LOAD A PRODUCT FILE
STAGE 3
EDIT A PRODUCT FILE
STAGE 9
PRINT
Load Paste
IN STEP MODE
STAGE 10
2DI SETUP
STAGE 11
PRINT IN RUN MODE
STAGE 8
VISION SYSTEM SETUP
STAGE 6E
FORMFLEX TOOLING
STAGE 6C
DEDICATED TOOLING
STAGE 6B
VACUUM TOOLING
STAGE 6D
MULTIFLEX TOOLING
STAGE 6A
MAGNETIC PILLARS
TOOLING
STAGE 4A
FIT SQUEEGEES
STAGE 5
SCREEN UNLOAD
STAGE 7
SCREEN LOAD
STAGE 4B
PROFLOW SETUP
semi automatic
0$&+,1(352*5$00,1*
67$*(32:(583
1.2 User Manual Software Version 07SP02

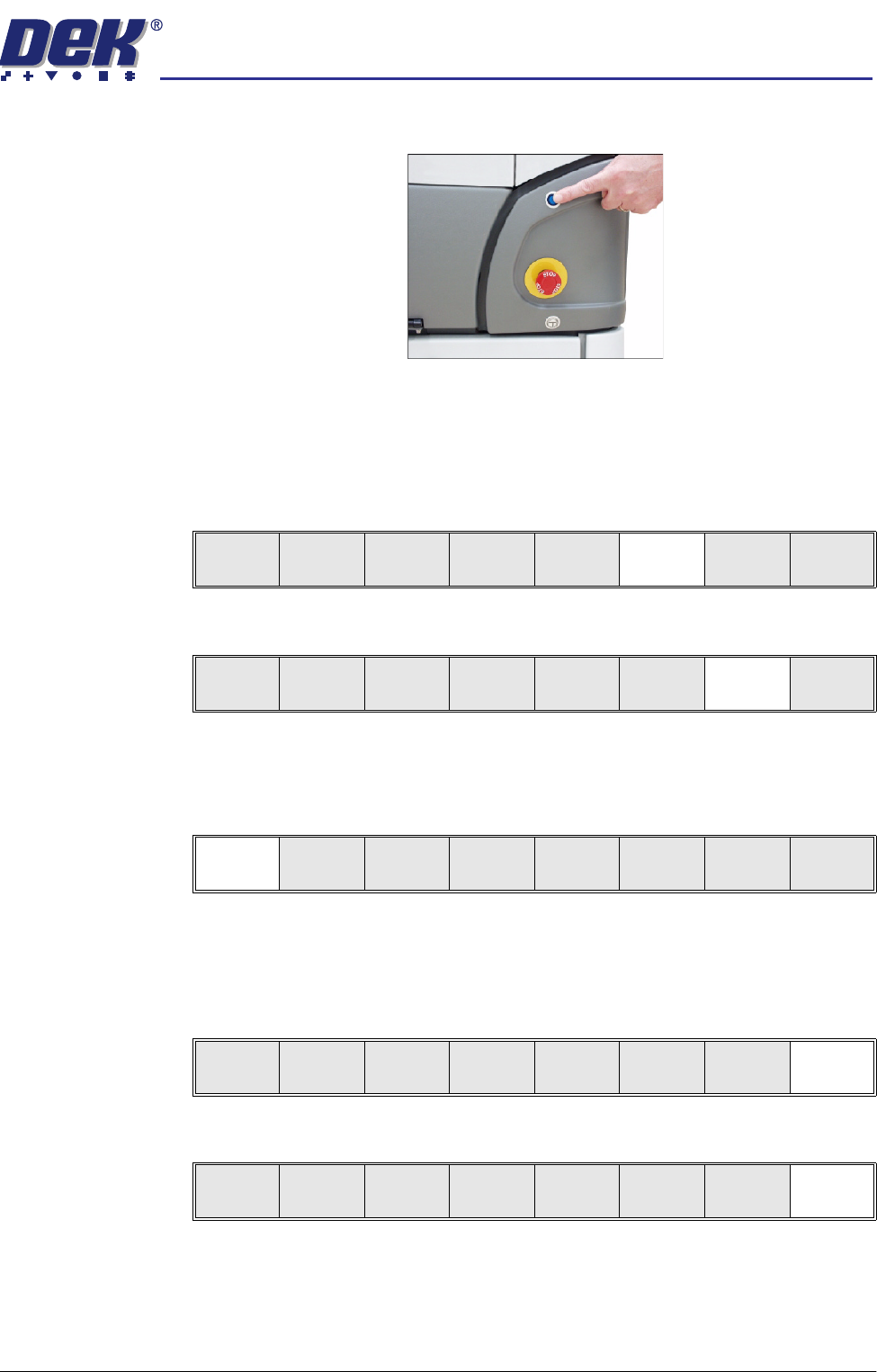

STAGE 1 - POWER UP
1. Turn the mains isolator switch to ON.
2. When the message ‘Press SYSTEM Switch To Initialize Printer or Select
Diagnostics or Load Data’ is displayed in the message prompt bar, either:
a. Select Load Data (F2) if the loaded product is unknown or needs to be
changed.
b. Go to Step 5 if the loaded product file is known to be the correct one.
The following Load data File window is displayed:
3. Use Left, Right, Up or Down function keys (F4-F7) to highlight the required
file.
4. Press Load (F1).
Load
Data
Diagnost
Load Data File
Product ID
Search
Training
265TEST1
265TEST1
ANDY H
CALIBRA
DEFAULT
DEK04
DEK06
Load
Rebuild
List
Left Right Up Down Exit
Load
Rebuild
List
Left Right Up Down Exit
semi automatic
0$&+,1(352*5$00,1*
67$*(32:(583
Software Version 07SP02 User Manual 1.3
5. Initialize the machine by pressing the System button.
The selected file is now displayed on the status page. The operator can
change the language used in the display menus. To select a different
language continue with Step 6. If the correct language is loaded go to Step
12.
6. Select Setup (F6).
7. Select Change Language (F7).
8. A list of installed languages is displayed. Select Up (F5), or Down (F6) until
the desired language is highlighted.
9. Select Load (F1).
The message ‘Loading Language...’ is displayed. A delay of approxi-
mately 20 seconds take place and all displayed text is changed to the
selected language. The message ‘Language Loaded...’ is displayed.
10. Select Exit (F8).
11. Select Exit (F8).
If this is the correct file for the product proceed to Stage 4. If the file has to
be edited proceed to Stage 3.
Run
Open
Cover
Paste
Load
Clean
Screen
Setup Monitor Maint.
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Load Up Down Exit
Load Up Down Exit
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
