semi automatic ',$*126 7,&6 6&5( (1$/ ,*10( 17 4.22 User Manual Software Ve rsion 07SP02 SCREEN ALIGNMENT Selectin g this diagnos tics modul e opens the fol lowing wi ndow: The menu bar changes to the follo…
semi automatic
',$*1267,&6
3$67(',63(16(6<67(0
Software Version 07SP02 User Manual 4.21
Cartridge in Up
Position
This diagnostic function continuously displays the status of the cartridge home
(up) sensor.
semi automatic
',$*1267,&6
6&5((1$/,*10(17
4.22 User Manual Software Version 07SP02
SCREEN ALIGNMENT

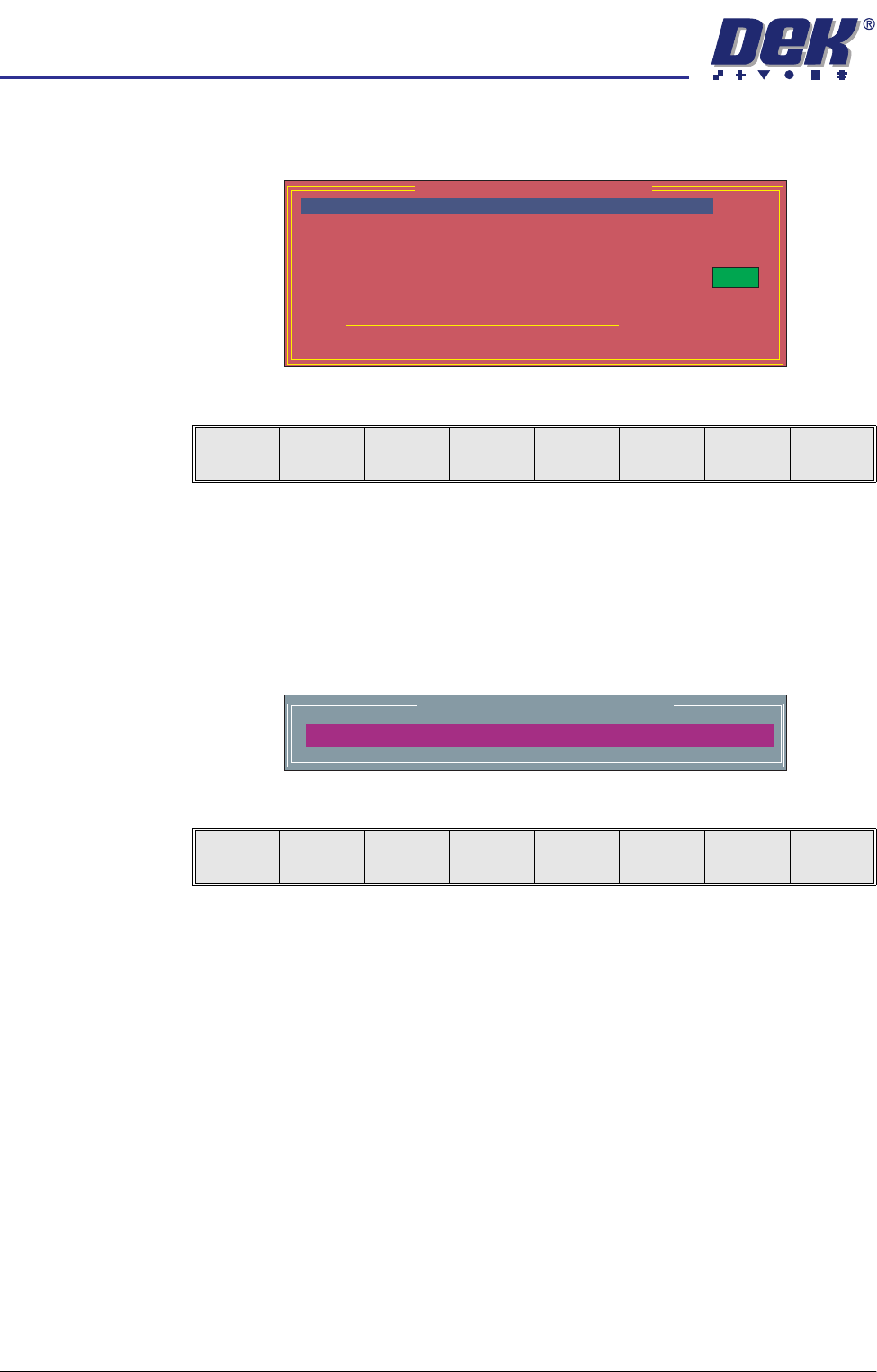

Selecting this diagnostics module opens the following window:
The menu bar changes to the following:
Next / Previous keys move the highlight bar up and down the list of selectable
diagnostic functions.
Run Diagnost activates the diagnostic function, as selected by the highlight
bar.
Exit returns operation to the module diagnostics page.
Adjust opens the following window:
The menu bar changes to the following:
Next / Previous keys have no function in this application.
Incr. / Decr. keys change the value of the cycle count.
Exit returns operation to the screen alignment diagnostics page.
Home Actuators Selecting this diagnostic function drives the X forward, X Rear and Y Axis
actuators simultaneously to their home positions, as determined by their home
sensors.
Drive X Forward
Motor Using Jog
Buttons
Selecting this diagnostic function drives the X forward actuator using the jog
buttons. The right Jog button drives the X forward actuator right at slow speed
and the left Jog button drives it left, stopping immediately the button is released.
Drive X Rear Motor
Using Jog Buttons
Selecting this diagnostic function drives the X rear actuator using the jog
buttons. The right jog button drives the X rear actuator right at slow speed and
the left jog button drives it left, stopping immediately the button is released.
Cycle Count
Done :-
0, To go :-
50
ON
Home Actuators
Drive X Forward Motor Using Jog Buttons
Drive X Rear Motor Using Jog Buttons
Drive Y Motor Using Jog Buttons
Toggle Chase Clamp
Cycle Alignment System
Screen Alignment Diagnostics
Run
Diagnost
Adjust Next Previous Exit
Actuator Cycle Test Parameters
CYCLE COUNT
50.0
Cycles
Next Previous Incr. Decr. Exit
semi automatic
',$*1267,&6
6&5((1$/,*10(17
Software Version 07SP02 User Manual 4.23
Drive Y Motor
Using Jog Buttons
Selecting this diagnostic function drives the Y actuator using the jog buttons.
The right jog button drives the Y actuator forward at slow speed and the left jog
button drives it to the rear, stopping immediately the button is released.
Toggle Chase
Clamp
Selecting this diagnostic function alternately energizes and de-energizes the
chase clamp solenoid, displaying On when the clamps are energized and Off
when the clamps are de-energized.
Cycle Alignment
System
Selecting this diagnostic function starts a continuous cycle of driving the screen
actuators to each of the positions in the table below in sequence, dwelling for 2
seconds at each point and continuing the cycle.
The positions are given as XF, XR and Y in mm from the home position and are
as follows:
This continuous cycling is terminated by selecting the stop key or when the set
cycle count has been reached.
Cycle Count This diagnostic function displays the amount of cycles done and the amount of
cycles to go to complete the cycle count.
1 0, 0, 0.
2 +20, +10, +10.
3 0, 0, 0.
4 -20, -10, -10.
5 0, 0, 0.
6 +10, +20, -10.
7 0, 0, 0.
8 -10, -20, +10.
