Software Version 07SP02 User Manual 8.9
WARNING
PROTECTIVE CLOTHING. APPROVED PROTECTIVE CLOTHING SHOULD BE
WORN BY SOLDER PASTE AND SOLVENT HANDLERS AT ALL TIMES TO
ELIMINATE FUME INHALATION, EYE CONTACT, SKIN CONTACT AND
INGESTION.
To replace the paste cartridge carry out the following:
1. Press Paste Load (F3).
2. Press Load Cart. (F4).
The print carriage drives to the front of the machine and the dispenser rises
to the vertical position. A message is displayed on the screen ‘Open cover
and replace Paste Cartridge’.
3. Raise the printhead cover.
4. Remove the empty cartridge by unscrewing the cap at the rear of the paste
dispense tube to allow it to be withdrawn.
5. Unscrew the nozzle from the old cartridge and insert it into the new cartridge.
Run
Open
Cover
Paste
Load
Clean
Screen
Setup Monitor Maint.
Auto
Dispense
Manual
Load
Load
Cart.
Print
Directn
Exit
semi automatic
&21680$%/(5(3/(1,6+0(176
3$67(/2$',1*
8.10 User Manual Software Version 07SP02
6. Fit the new cartridge into the dispenser.
7. Screw the end cap onto the dispenser finger tight. Ensure the pneumatic
fitting on the cap is facing towards the rear of the machine.
8. Lower the printhead cover.
9. Press the System button.
10. Press Exit (F8).
Auto
Dispense
Manual
Load
Load
Cart.
Print
Directn
Exit
semi automatic
&21680$%/(5(3/(1,6+0(176
%/8(81'(56&5((1&/($1(5
Software Version 07SP02 User Manual 8.11

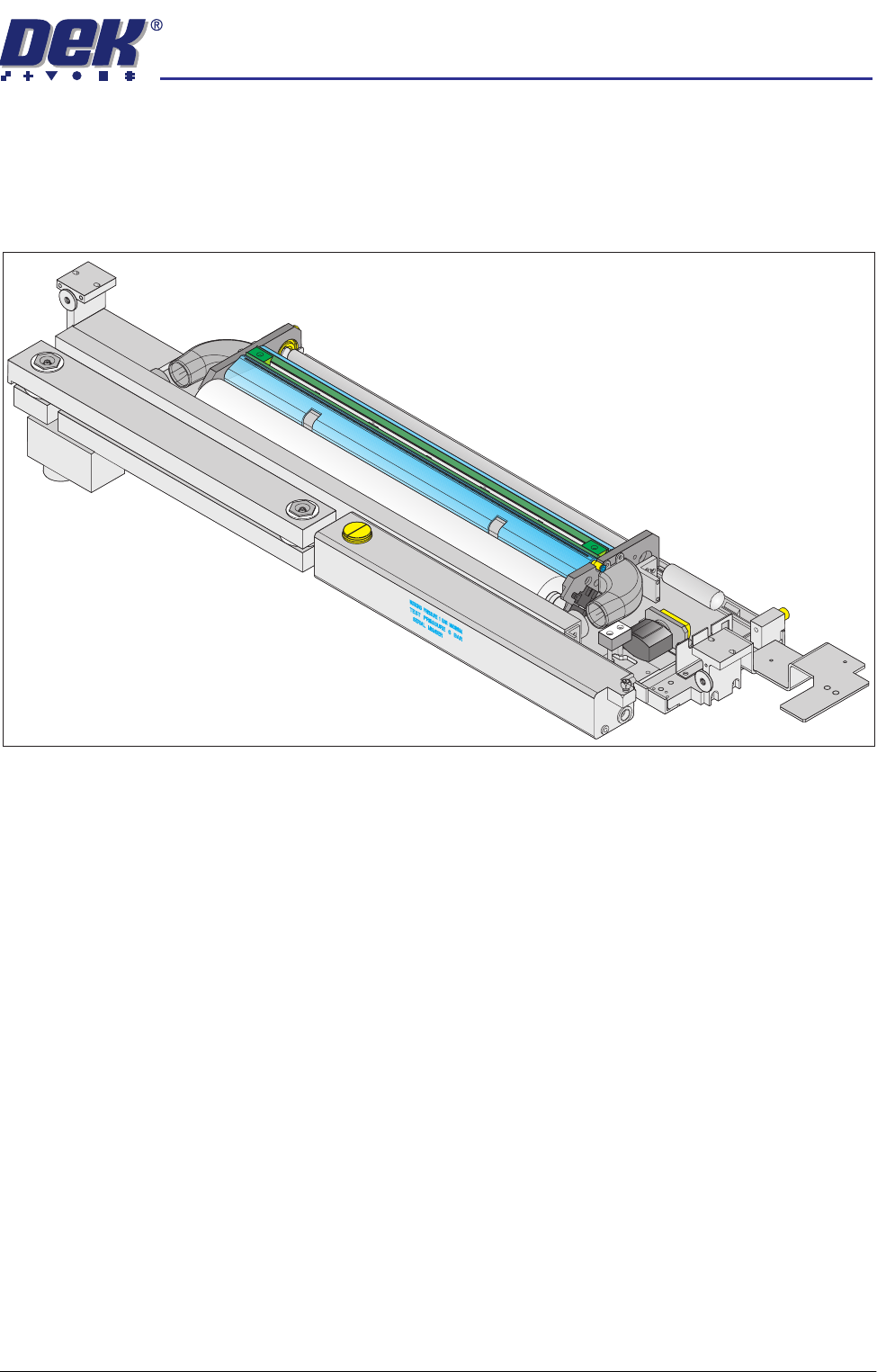

BLUE UNDERSCREEN CLEANER
Provision is made on the printer for automatic underscreen cleaning. This is
carried out using a lint free paper roll which can be dry or wetted with an
appropriate solvent. A combination of wet and dry wipes can be programmed.
The cleaning options can be programmed into a particular product file so that
they take place at pre-programmed intervals or they can be selected, directly
from the MMI, to take place at the operators discretion.
Programming
Operation
The screen clean parameters can be setup when editing a product file, while
setting up a new product. It may be more convenient to set these after the
product has been setup and printed and screen cleaning requirements have
been decided upon.
The parameters to be edited that affect the operation of the underscreen cleaner
are:
• Clean Screen Rate:
This parameter sets the number of print cycles between the cycling of the
underscreen cleaner. This can be set at any number between 0 to 200 in
increments of 1.
• Clean Screen Modes:
These parameters determine the modes of operation for the screen cleaner.
Each mode can have a cleaning sequence with up to six sweeps, each of which
can be set to VAC, DRY, WET or NONE.
