Software Version 07SP02 User Manual 8.17
22. Toggle the screen clamp to the up position (OFF) (standard chase only).
23. Remove the stencil from the machine.
24. Go to Paper Replenishment section.
Solvent Replenishment
WARNING
RECOMMENDED SOLVENTS. ANY SOLVENTS USED MUST COMPLY WITH
LOCAL ENVIRONMENTAL GUIDELINES. DEK RECOMMEND USING SOLVENTS
THAT ARE ENVIRONMENTALLLY FRIENDLY, IE CFC FREE AND WATER BASED.
SOLVENTS USED MUST HAVE FAST EVAPORATION RATES AND FLASHPOINT
SPECIFICATIONS GREATER THAN 39ºC.
WARNING
SOLDER PASTE AND SOLVENTS. WHEN USING OR HANDLING ANY SOLDER
PASTE OR SOLVENT FORMULATION THE MANUFACTURERS’ RECOMMEND
SAFETY PRECAUTIONS MUST BE STRICTLY ADHERED TO.
WARNING
PROTECTIVE CLOTHING. APPROVED PROTECTIVE CLOTHING SHOULD BE
WORN BY SOLDER PASTE AND SOLVENT HANDLERS AT ALL TIMES TO
ELIMINATE FUME INHALATION, EYE CONTACT, SKIN CONTACT AND
INGESTION.
WARNING
SOLVENT SOLUTION. DO NOT MIX SOLVENT SOLUTIONS. FLUSH THE
SOLVENT TANK THOROUGHLY WHEN CHANGING TO A DIFFERENT SOLVENT
SOLUTION.
semi automatic
&21680$%/(5(3/(1,6+0(176
%/8(81'(56&5((1&/($1(5
8.18 User Manual Software Version 07SP02
WARNING
SOLVENT SPRAY. THE UNDERSCREEN CLEANER SPRAYS A FINE JET OF
SOLVENT SOLUTION ON TO THE CLEANER. APPROVED PROTECTIVE
CLOTHING SHOULD BE WORN.
1. Remove the solvent tank cap (1) from the solvent tank (2).
2. Using a suitable container refill the tank and replace the cap.
3. Lower the printhead cover.
4. Press the System button.
5. Press Prime Solvent (F6).
The message ‘Press the two button control buttons to prime solvent.’
is displayed.
6. Prime the solvent using the two button control.
7. Press Exit (F8).
Paper Replenishment
WARNING
PROTECTIVE CLOTHING. APPROVED PROTECTIVE CLOTHING SHOULD BE
WORN BY SOLDER PASTE AND SOLVENT HANDLERS AT ALL TIMES TO
ELIMINATE FUME INHALATION, EYE CONTACT, SKIN CONTACT AND
INGESTION.
WARNING
FLAMMABLE. THE USED PAPER ROLL CONTAINS RESIDUES OF
UNDERSCREEN CLEANER FLUID AND SOLDER PASTE. OBSERVE
MANUFACTURERS’ RECOMMENDED DISPOSAL INSTRUCTIONS.
1
2
Change
Screen
Board
Clamps
Prime
Paper
Prime
Solvent
Exit
Change
Screen
Board
Clamps
Prime
Paper
Prime
Solvent
Exit
semi automatic
&21680$%/(5(3/(1,6+0(176
%/8(81'(56&5((1&/($1(5
Software Version 07SP02 User Manual 8.19
NOTE
When using 300 or 400mm wide paper rolls, ensure the correct paper roll
spacers are used.

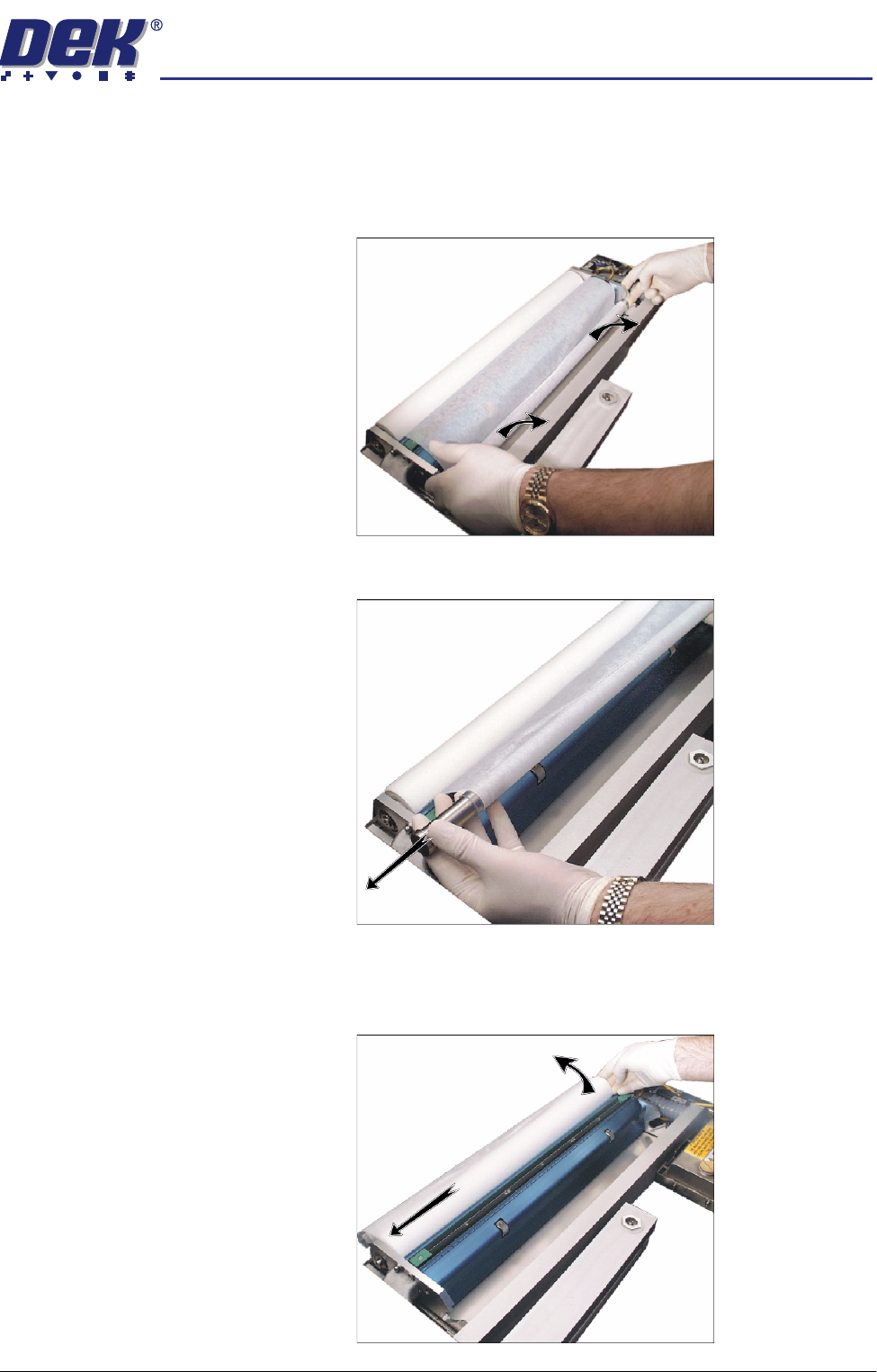

1. Lift the empty roll from the front of the cleaner.
2. Remove the paper spindles from both ends of the empty paper roll.
3. Remove the take up roll from the rear of the unit by easing the roll to the left
against spring pressure, until the right hand end is clear of the motor drive
spindle in the right hand end plate. Lift the take up roll clear of the unit.
