semi automatic &21680$ %/(5(3/ (1,6+0 (176 %/8(81'(5 6&5(( 1&/( $1(5 8.22 User Manual Software Ve rsion 07SP02 10. Refit t he paper sp indles to both ends o f the new pape r roll. Ensur e both faces o…
semi automatic
&21680$%/(5(3/(1,6+0(176
%/8(81'(56&5((1&/($1(5
Software Version 07SP02 User Manual 8.21

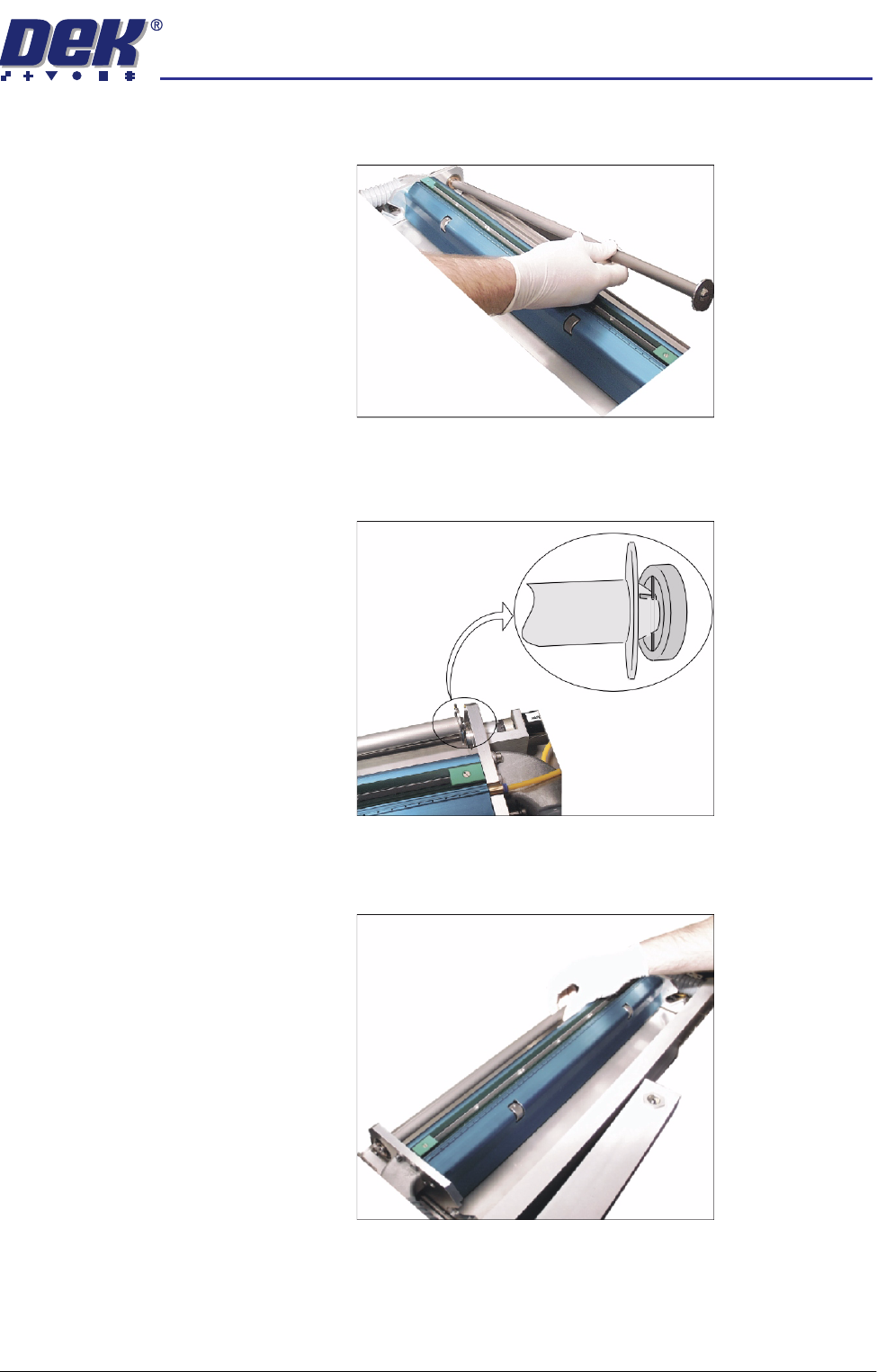

7. Fit the left hand shaft end into the cleaner left hand end plate.
8. Locate the right hand end of the paper roll shaft into the motor drive spindle
ensuring that the shaft is correctly seated.
9. Rotate the paper roll shaft until the groove is at 45° to the horizontal, facing
towards the top rear printhead cover of the machine.
semi automatic
&21680$%/(5(3/(1,6+0(176
%/8(81'(56&5((1&/($1(5
8.22 User Manual Software Version 07SP02

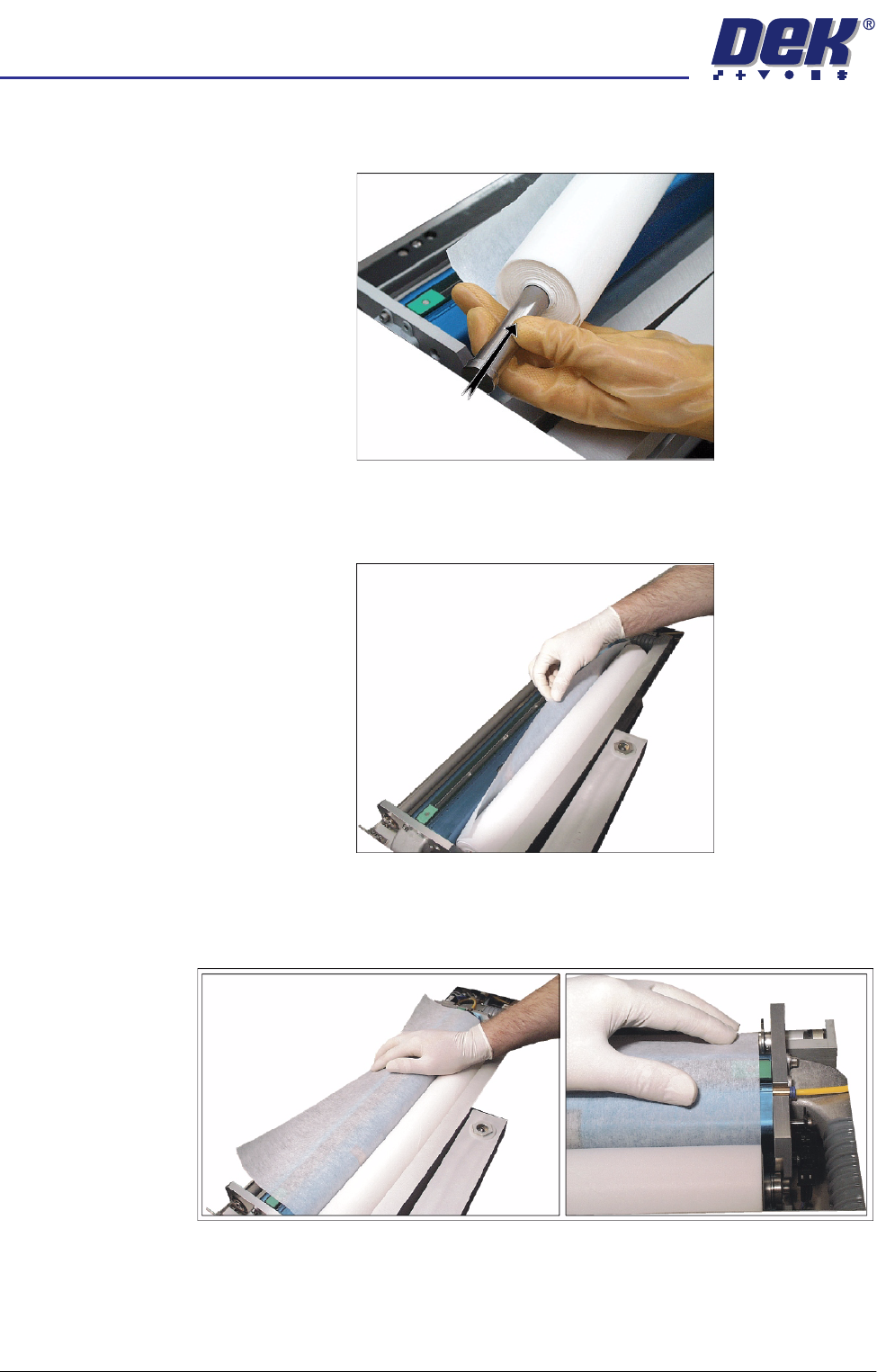

10. Refit the paper spindles to both ends of the new paper roll. Ensure both
faces of the new paper roll are flush.
11. Install the new clean paper roll at the front of the unit, ensure the paper is
routed from underneath the roll towards the rear of the unit.
12. Feed the cleaner paper across the body assembly, ensuring the cleaner
paper is aligned parallel to the unit end plate.
semi automatic
&21680$%/(5(3/(1,6+0(176
%/8(81'(56&5((1&/($1(5
Software Version 07SP02 User Manual 8.23

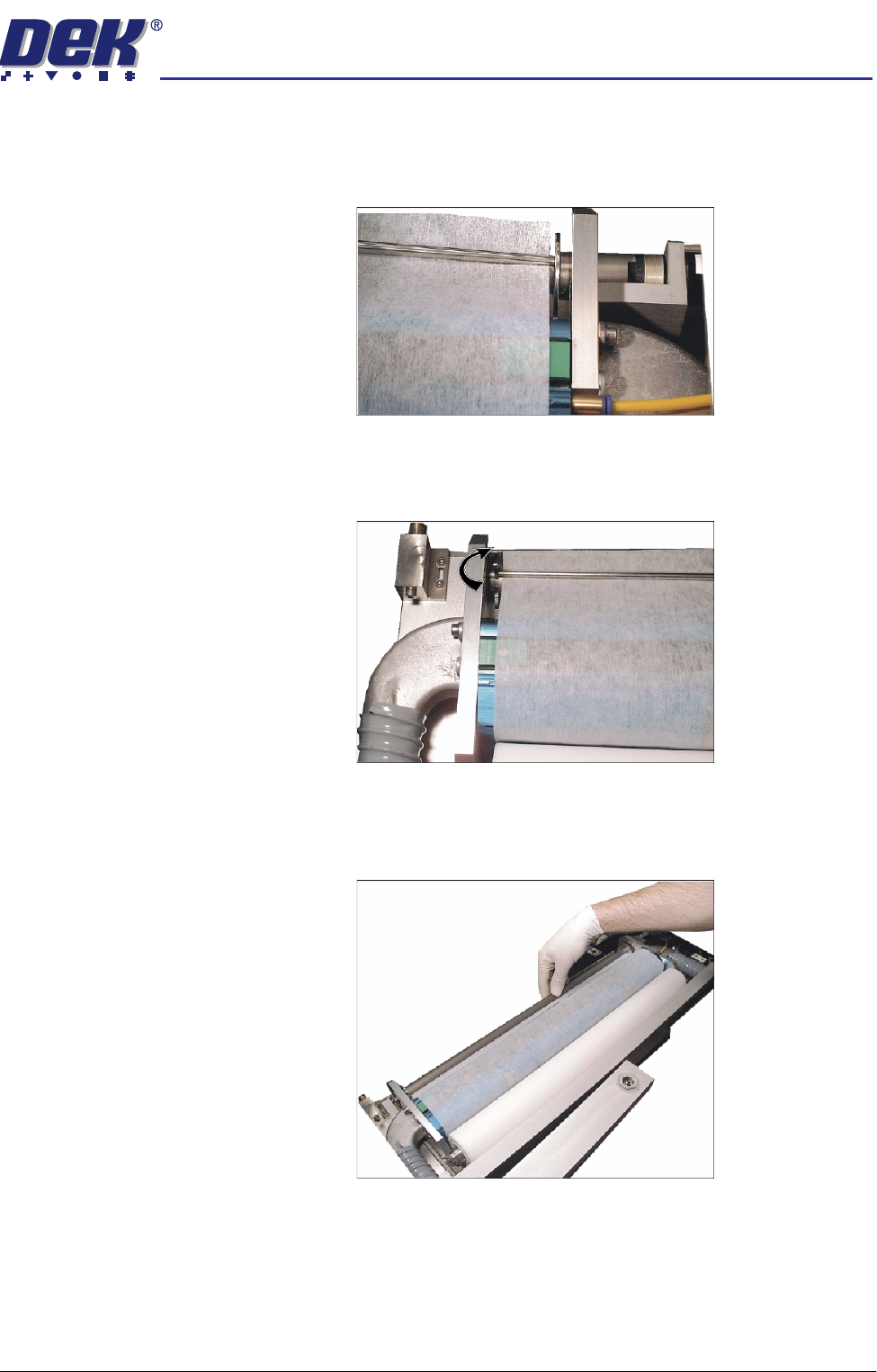

13. Insert the paper roll rod into the right hand flange of the shaft. Lay the rod
along the shafts groove trapping the cleaner paper between the shaft and
rod.
14. Rotate the end of the flange of the rod towards the rear of the machine to
lock the rod onto the shaft.
15. Rotate the take up roll one complete revolution against the motor clutch to
tension the cleaner paper across the cleaner squeegee assembly.
