Software Version 07SP02 User Manual 8.25

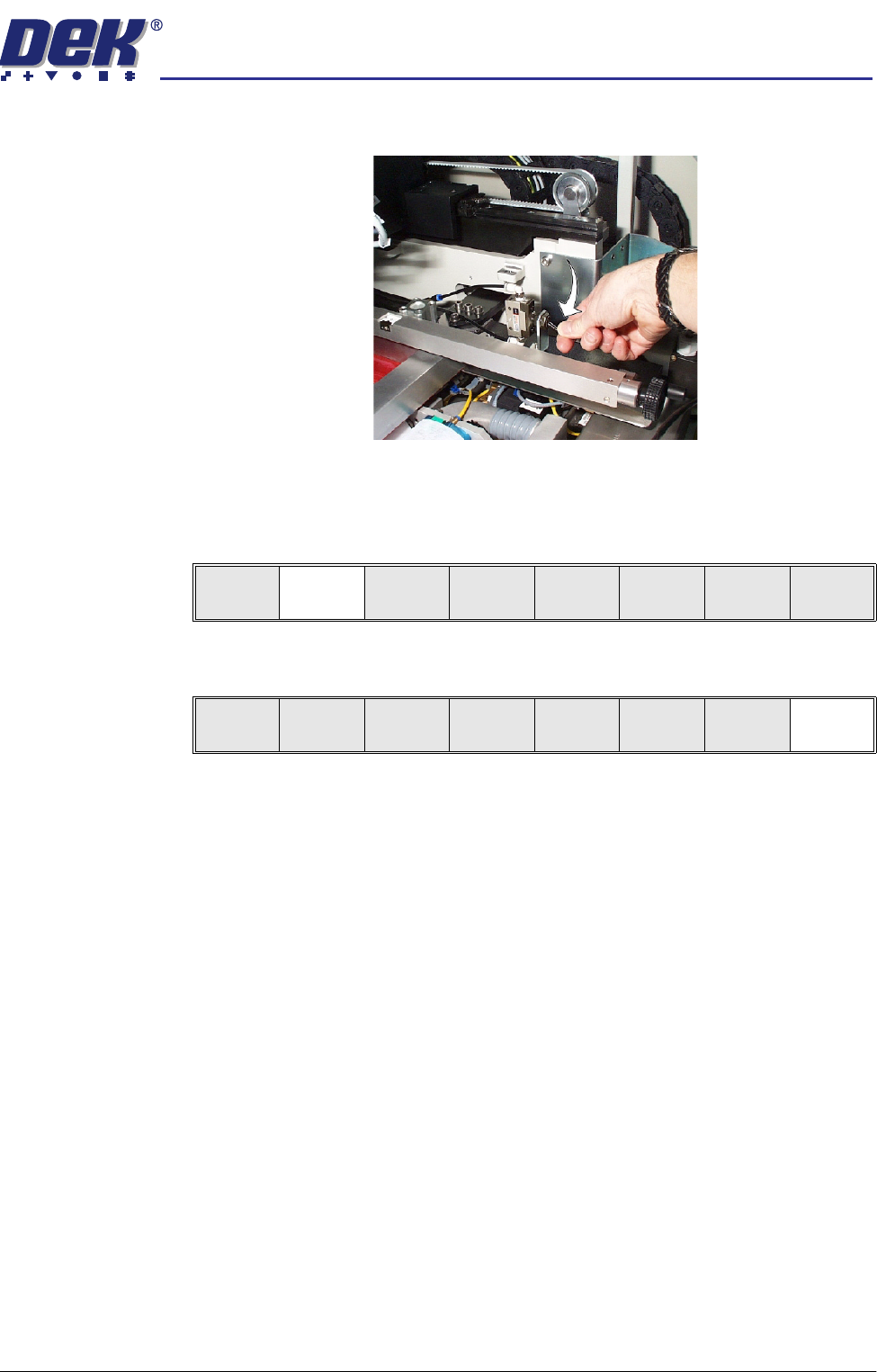

20. Toggle the screen clamp to the down position (ON) (standard chase only).
21. Lower the printhead cover.
22. Press the System button.
23. Press Change Screen (F2).
24. Press Exit (F8).
Change
Screen
Board
Clamps
Prime
Paper
Prime
Solvent
Exit
Change
screen
Board
Clamps
Prime
Paper
Prime
Solvent
Exit
semi automatic
&21680$%/(5(3/(1,6+0(176
9257(;3/8681'(56&5((1&/($1(5
8.26 User Manual Software Version 07SP02
VORTEX PLUS UNDERSCREEN CLEANER

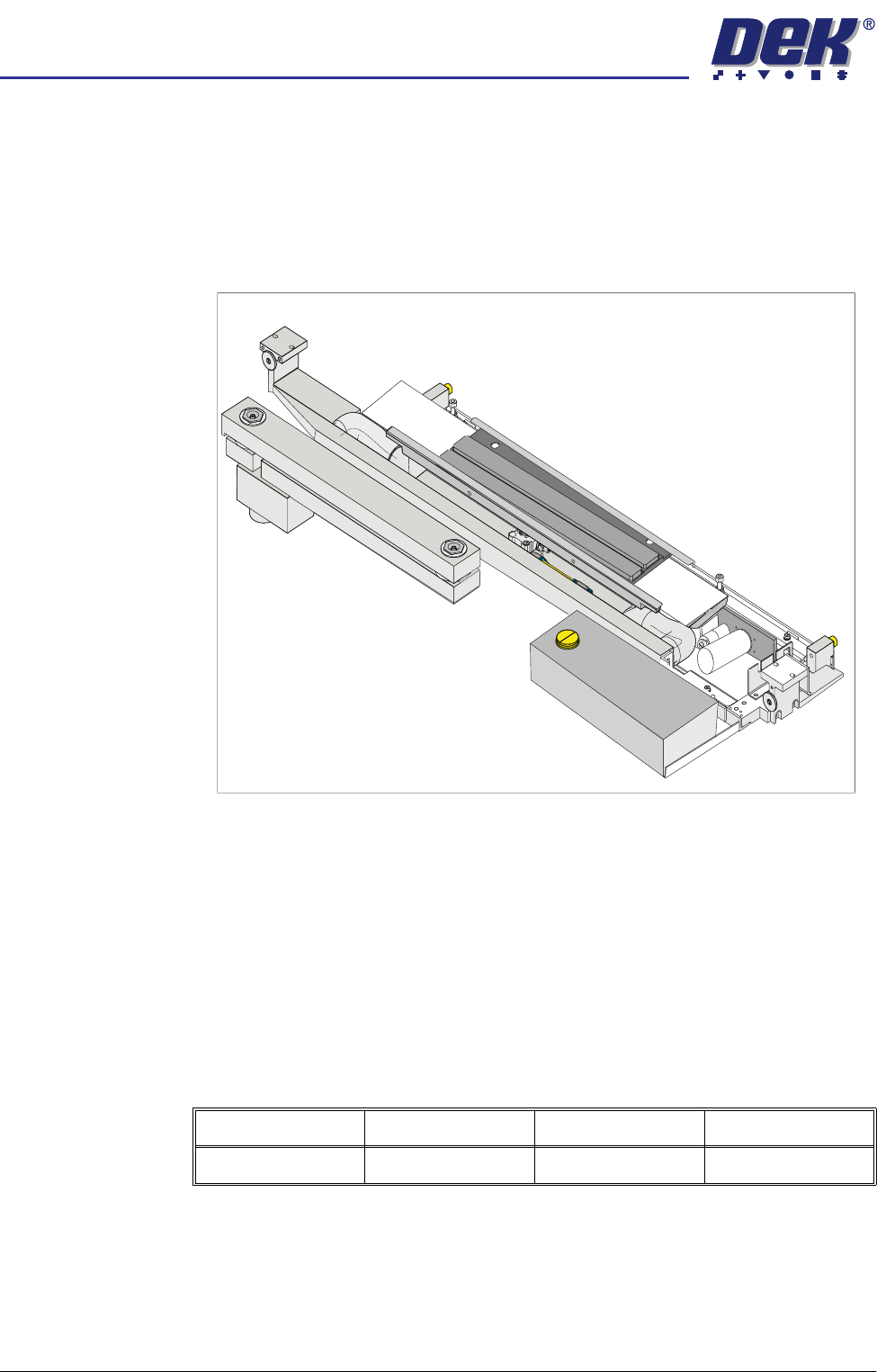

Provision is made on the printer for automatic underscreen cleaning. This is
carried out using a cleaning cassette which contains a wet and a dry cell. The
wet cell is impregnated with an appropriate solvent. A cleaning cycle consists
of a single return stroke incorporating a wet and dry wipe with or without
vacuum.
The cleaning options can be programmed into a particular product file so that
they take place at preprogrammed intervals or they can be selected, directly
from the MMI, to take place at the operators discretion.
Programming
Operation
The screen clean parameters can be setup when editing a product file, while
setting up a new product. It may be more convenient to set these after the
product has been setup and printed and screen cleaning requirements have
been decided upon.
The parameters to be edited that affect the operation of the underscreen cleaner
are listed below with a definition of each as an aid to setup:
Front Start Offset The distance, in from the front edge of the board, at which the cleaner is to finish.
Minimum Maximum Increment Default
-60mm 60mm 1mm 30mm
semi automatic
&21680$%/(5(3/(1,6+0(176
9257(;3/8681'(56&5((1&/($1(5
Software Version 07SP02 User Manual 8.27
Rear Start Offset The distance, in from the rear edge of the board, at which the cleaner is to start.
Vortex Cassette Life This parameter sets the number of cleaning strokes that are applied before a
cleaning cassette is replaced.
Vortex Clean Rate This parameter sets the frequency (in print cycles) at which screen cleaning
occurs.
Vortex Solvent Rate This parameter sets the frequency (in cleaning cycles) at which solvent is
dispensed.
Vortex Vacuum Start The distance, in from the front edge of the board, where vacuum is applied.
Vortex Vacuum Stop The distance, in from the front edge of the board, where vacuum application is
stopped.
Vortex Vacuum Rate This parameter sets the frequency (in cleaning cycles) at which vacuum is
applied.
Minimum Maximum Increment Default
-60mm 60mm 1mm 30mm
Minimum Maximum Increment Default
0 200 1 20
Minimum Maximum Increment Default
0 200 1 0
Minimum Maximum Increment Default
1101 1
Minimum Maximum Increment Default
Vacuum Stop Board Width 1mm 0mm
Minimum Maximum Increment Default
-100mm Vacuum Stop 1mm 0mm
Minimum Maximum Increment Default
1101 1
